ABB ControlMaster CM30 User Manual

ControlMaster CM30, CM50 and CMF310
Universal process controllers,
1
/4,
1
/2 DIN and fieldmount 7 Advanced Level
IM/CM/ED–EN Rev. X 41
…Display / …Customise Pages / …Parameters 
Tag A user-programmable, 3-character alphanumeric tag used to identify each parameter.
State 0 Tag A user-programmable, 8-character alphanumeric tag displayed when the state of
the selected parameter has a value of 0.
State 1 Tag A user-programmable, 8-character alphanumeric tag displayed when the state of
the selected parameter has a value of 1.
State 2 Tag A user-programmable, 8-character alphanumeric tag displayed when the state of
the selected parameter has a value of 2.

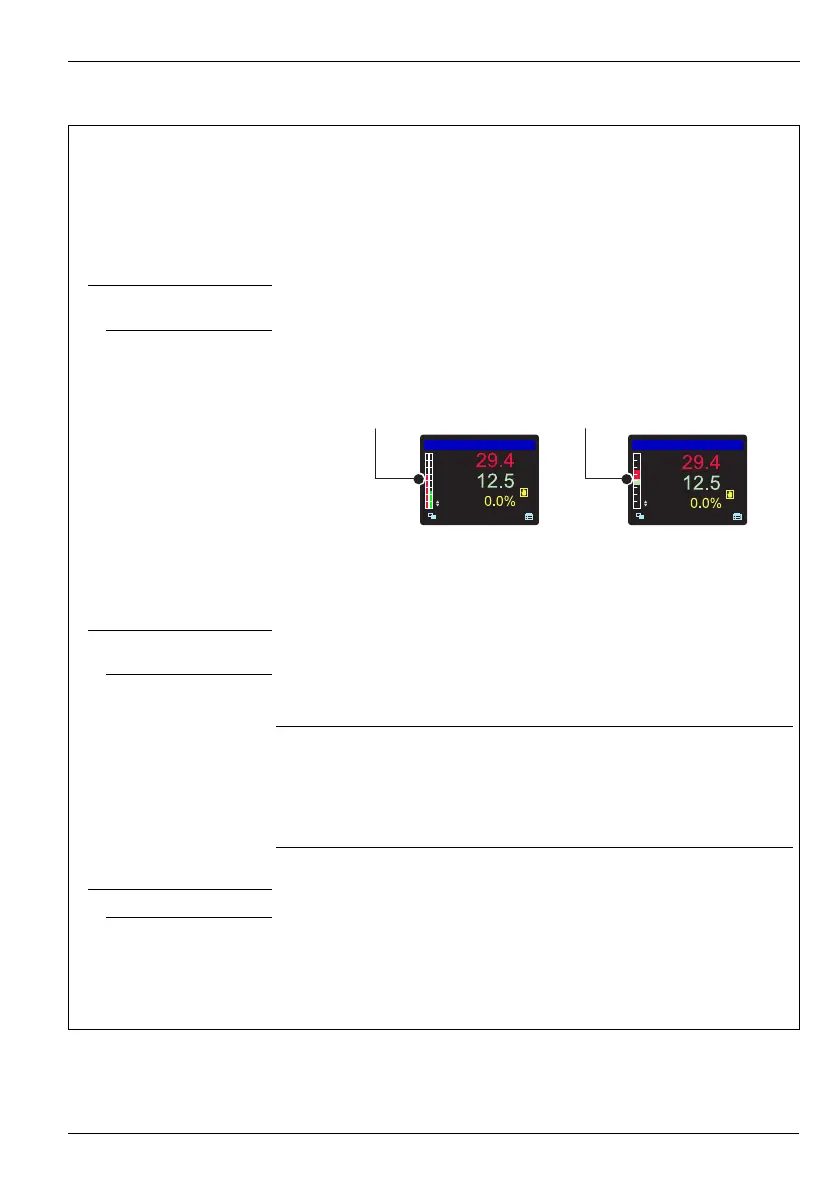

Bargraphs Up to 2 bargraphs can be configured. On some Tem pla te Types (see page 40),
it is not possible to display one or both of the bargraphs.
Bargraph Number Selects the bargraph to be customized.
Typ e Selects the type of bargraph (if required).
[Off, Standard, Deviation]
Source Selects the analog signal to be represented on the bargraph (if a Deviation bargraph
type is selected, select deviation signals only).
Color Selects the color to be used on the bargraph.
Note. Theme RGB and Theme RYG (see page 40) cannot be used with bargraphs.
Icons Used to configure up to 8 icons (with some custom display templates it is not possible
to display all 8 icons).
Typ e Selects the type of icon to be displayed.
Icon types:
Off
Loop 1 Local SP Loop 1 Auto/Manual Loop 1 Local/Remote
Loop 2 Local SP Loop 2 Auto/Manual Loop 2 Local/Remote
Loop 1 Feedforward Loop 2 Feedforward Loop 1 Valve Status Loop 2 Valve Status
Loop 1 Totalizer Loop 2 Totalizer Loop 1 Ration L/R Loop 2 Ration L/R
Loop 1 Track Status Loop 2 Track Status Blank
Color Selects the color of each icon used on the display.
Page Colors The Icons parameter is used to define the icons displayed and to select icon colors.
Background Color Selects the background color of the Operator Page – see page 23.
Titlebar Color Selects the background color of the title bar.
Title Tag Color Selects the color of the title bar tag.
Softkey Color Selects the color for the Soft Key icons – see page 38.
ControlMaster
PV
SP
deg C
ControlMaster
PV
SP
deg C
Standard Bargraph (2 Shown)
Deviation Bargraph
