Operating instructions V 1.00 Document: V 1.00 / Document No.: 105728 │ Date 28.05.2018
Removing the cylinder lock
1. Turn the key to the left until the resistance is noticeably overcome.
2. Turn the key further until it is in a vertical position. The cylinder lock can then be unlocked
from the holder using slightly increased force and re- moved.

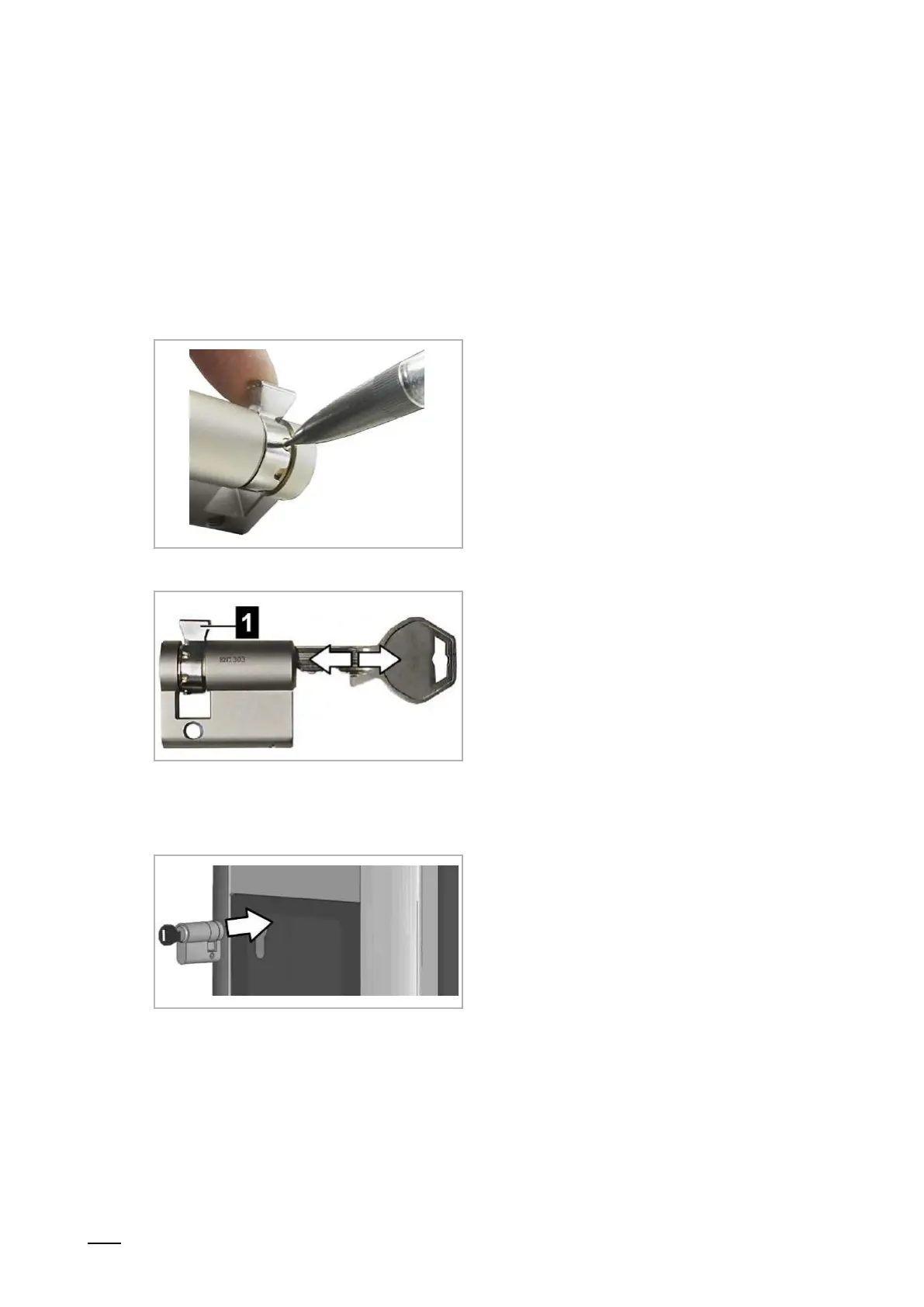

Fitting a cylinder lock
1. Use a thin object to push in the
coding pin to turn the lock nose.
2. Turn the lock nose [1] so that it points
vertically upwards in the removal
position of the key.
3. Turn the key 180° so that the lock nose faces downward.
4. Use light pressure to press the
cylinder lock into the housing
completely until it audibly engages.
The cylinder lock should be flush with
the sur- face of the housing.
