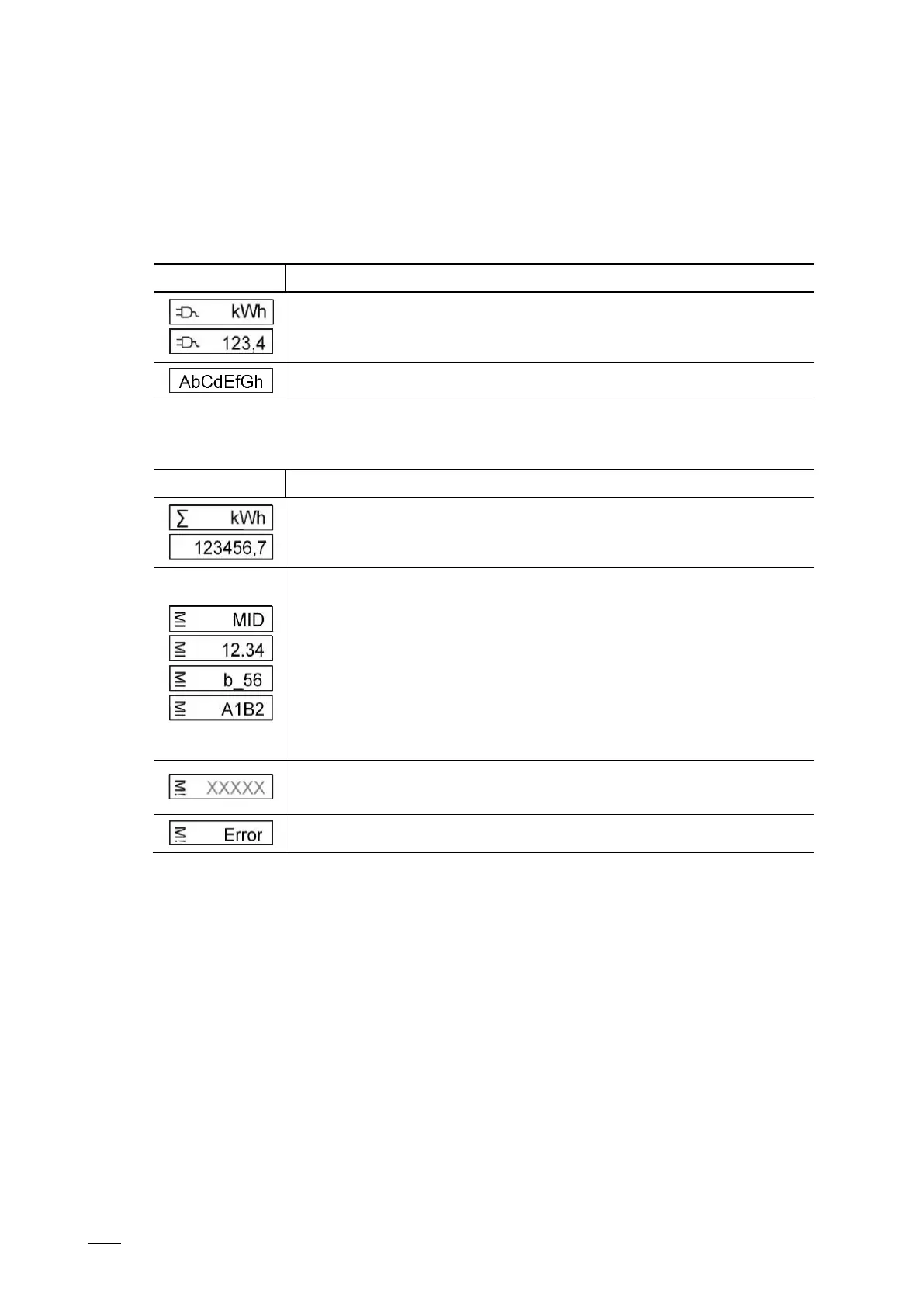

4.2.2 Display with calibratable energy meter (MID)
If the charging station is marked as MID version on the type plate, the follow- ing information is
shown on the display:
Transmitted energy of the current charging process, Display at start and after
completion of a charging process
Text display, e.g. call for action or information about the charging process
Calibration-relevant displays (MID) are provided with a special mark:
Sum of total transmitted energy,
Display during start-up of the charging station as well as at the start and after
completion of a charging process
Displays of the firmware version,
Display when starting up the charging station and when starting a charging
process
[1] "MID"
[2] Firmware version
[3] Build version
[4] Checksum
On the left is an example of the firmware version 12.34.56.
If the display is marked with a preceding "M!", an internal message was stored in
the memory of the charging station during the charging process. When restarting
the charging station, the marking is reset.
MID-relevant error. The charging station must be returned for repair.
