Operating instructions V 1.00 Document: V 1.00 / Document No.: 105728 │ Date 28.05.2018
8 Maintenance
The charging station is essentially maintenance free but it must be checked regularly by the
owner for faulty sockets and charging connector (including the charging cable) and damage to
the housing (visual inspection).
Use a soft, damp cloth for cleaning. Stubborn dirt can be removed using a mild, solvent-free,
non-scouring cleaning agent.
8.1 Changing the cylinder lock
Device versions with key switch have a cylinder lock installed as standard.

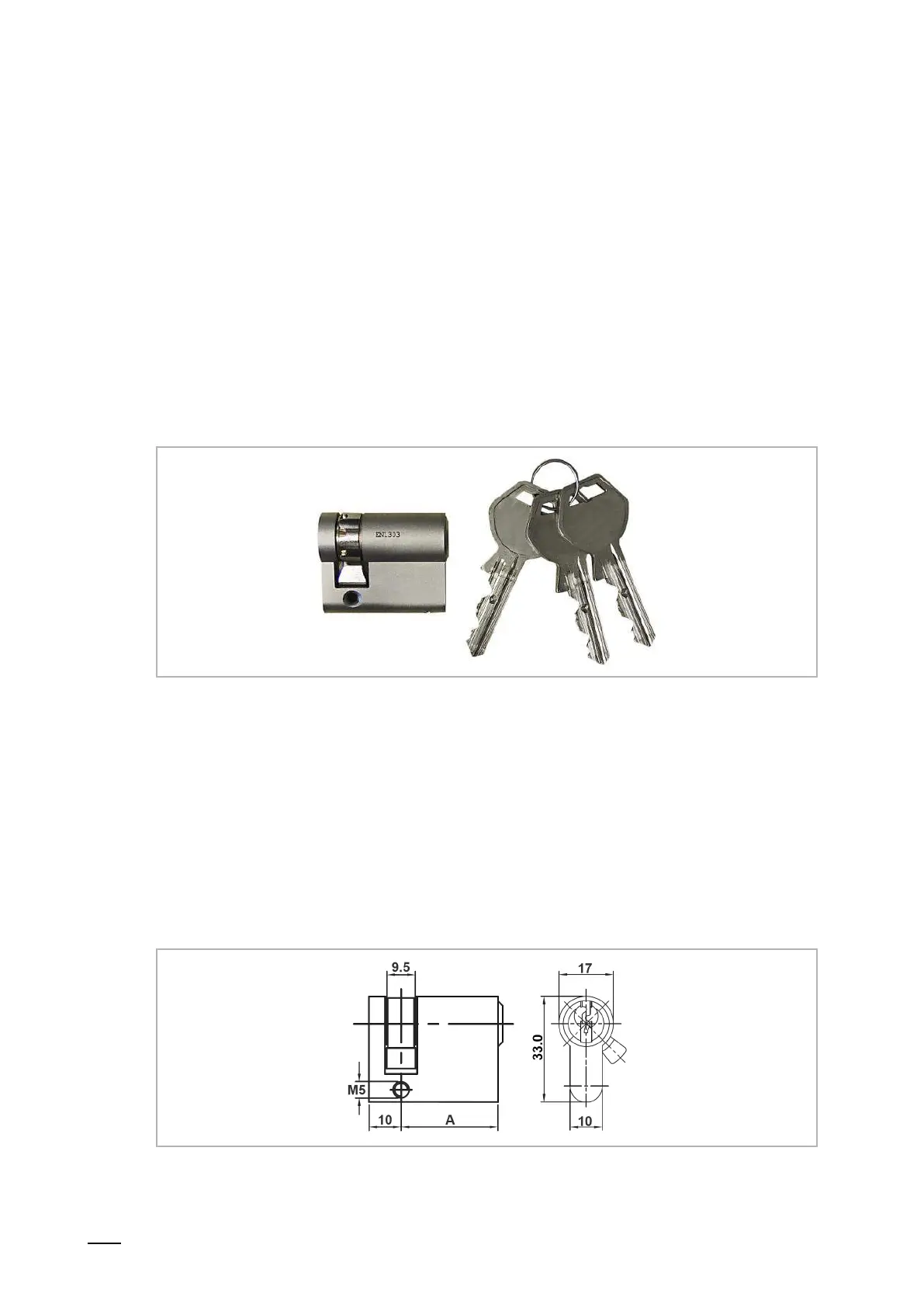

Fig. 7: Cylinder lock and key
To replace the cylinder lock, the following tools are required:
■
Matching key for the cylinder lock
■
Thin object for twisting the lock nose
A new cylinder lock must meet the following requirements:
■
Profile half cylinder according to EN 1303 or DIN 18252
■
Adjustable lock nose
■
Dimensions according to the illustration. Dimension A = 30 mm
Fig. 8: Dimensions of the cylinder lock in mm
