4.2 Display (optional)
Devices with energy meters (EVLunic Pro S and Pro M) have a (dot matrix LED) display.

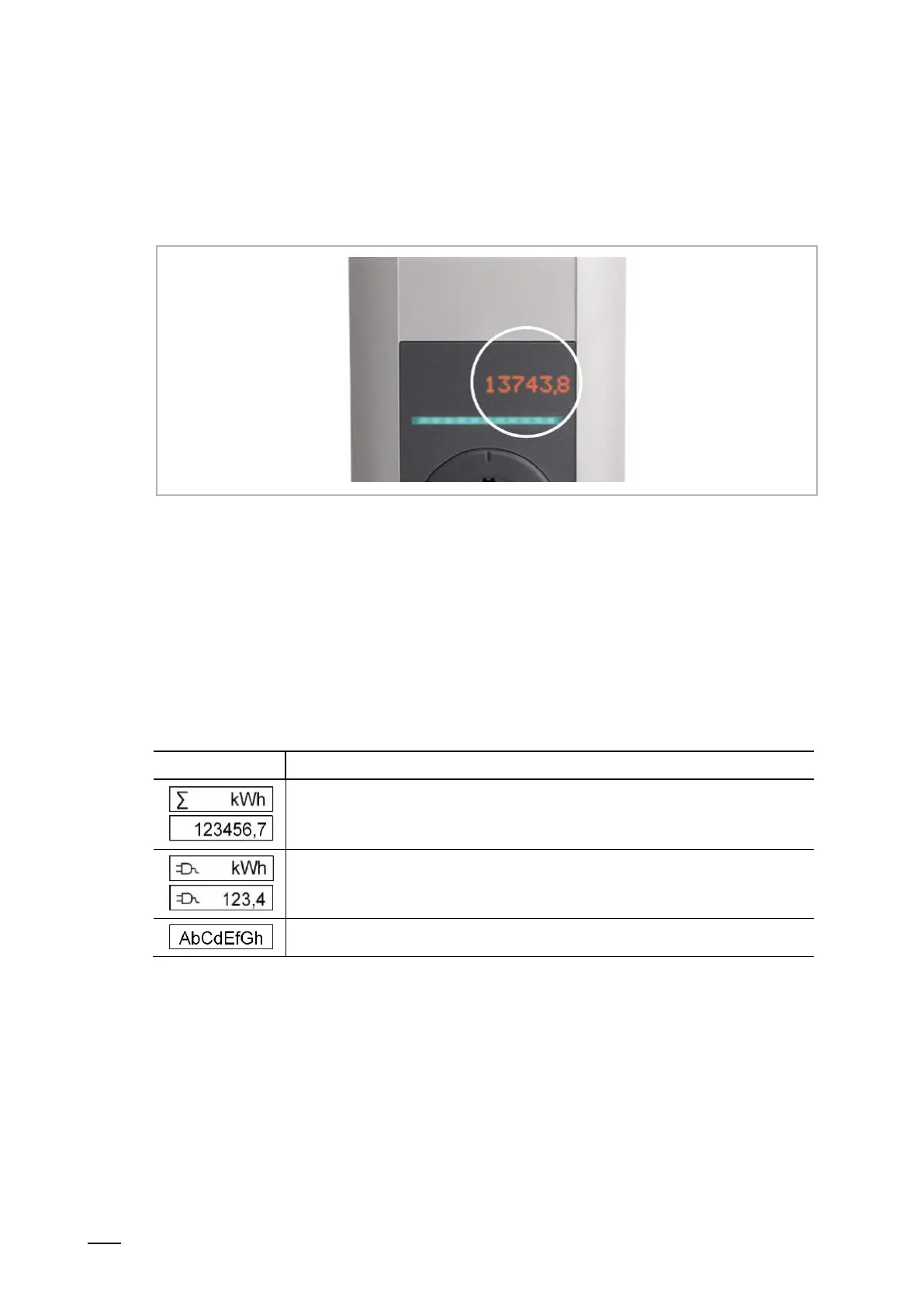

Fig. 6: Display
The display may show different information depending on the operating sta- tus (e.g., software
version, IP address, authorization request). The main task, however, is to display the status of
the internal energy meter. During periods of inactivity, the display brightness is reduced and
switched off after a few minutes.
The display lights up through the housing and is only visible when the power supply is active.
4.2.1 Display with energy meter
The following information is shown on the display:
Display
Description
Sum of total transmitted energy,
Display during startup of the charging station
Transmitted energy of the current charging process, Display at start and after
completion of a charging process
Text display, e.g. call for action or information about the charging process
