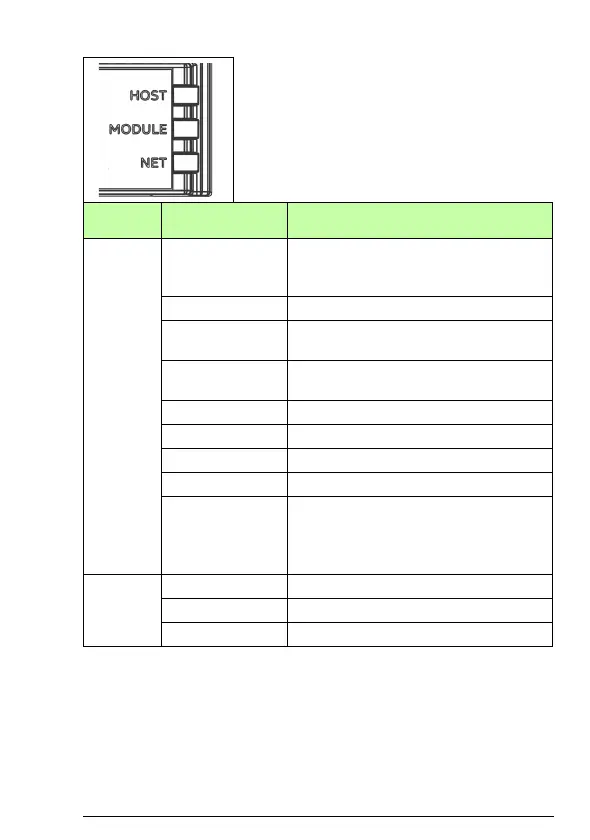

Diagnostics 103
MODULE
Green off NMT_GS_OFF,
NMT_GS_INITIALISATION,
NMT_CS_NOT_ACTIVE
Flickering green NMT_CS_BASIC_ETHERNET
Green, single
flash
NMT_CS_PRE_OPERATIONAL_1
Green, double
flash
NMT_CS_PRE_OPERATIONAL_2
Green, triple flash NMT_CS_READY_TO_OPERATE
Green NMT_CS_OPERATIONAL
Blinking green NMT_CS_STOPPED
Red Error
Flashing orange,
alternating with
the HOST
flashing orange
Internal file system error. The error may
be cleared by cycling drive power. If the
error persists, contact your local ABB
representative.
NET
Blinking green TX/RX activity
Green Link(s) are active.
Red Link(s) are inactive.
Name Color Function/state
