106 Technical data
FEPL-02

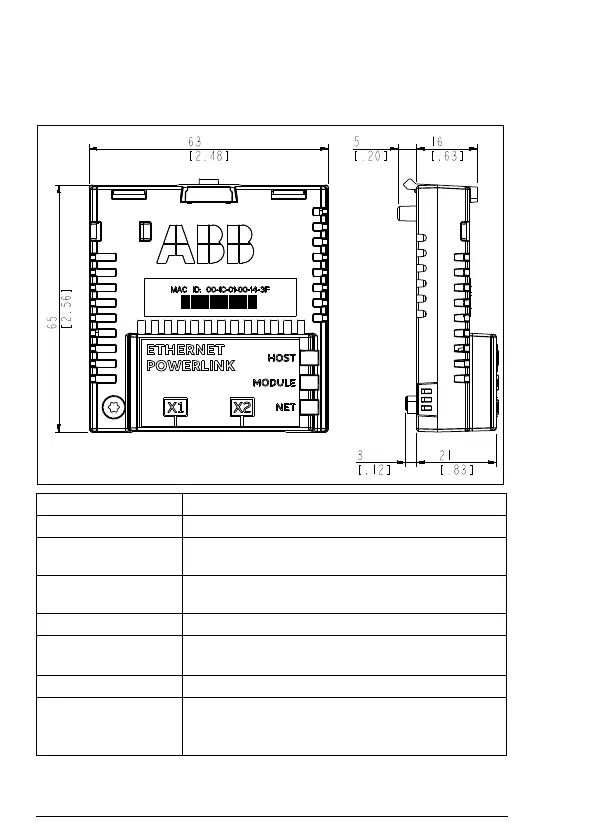

The figure below shows the enclosure of the adapter module from
the front and side.
Installation Into an option slot on the drive control unit.
Degree of protection IP20
Ambient conditions The applicable ambient conditions specified for the
drive in its manuals are in effect.
Package Cardboard. Plastic wrapping: Antistatic air bubble
sheet (PE).
Indicators Three bicolor LEDs (HOST, MODULE, NET).
Connectors A 20-pin connector to the drive (X3).
Two RJ-45 connectors (X1 and X2).
Power supply +3.3 V +5% max. 450 mA (supplied by the drive).
General All materials UL/CSA-approved.
Complies with EMC standard EN 61800-3:2004.
Printed circuit board conformal coated.
