Commissioning
© 2006 ABB STOTZ-KONTAKT GmbH 189
ABB i-bus
®
EIB / KNX
The dialog window Member of group 01 is activated in the following way:
- by double-clicking on *** new group member *** or
- by pressing the right mouse button and selecting New group member
in the pop-up menu or
- by selecting Edit in the menu bar and then activating New group member
in the pop-up menu.

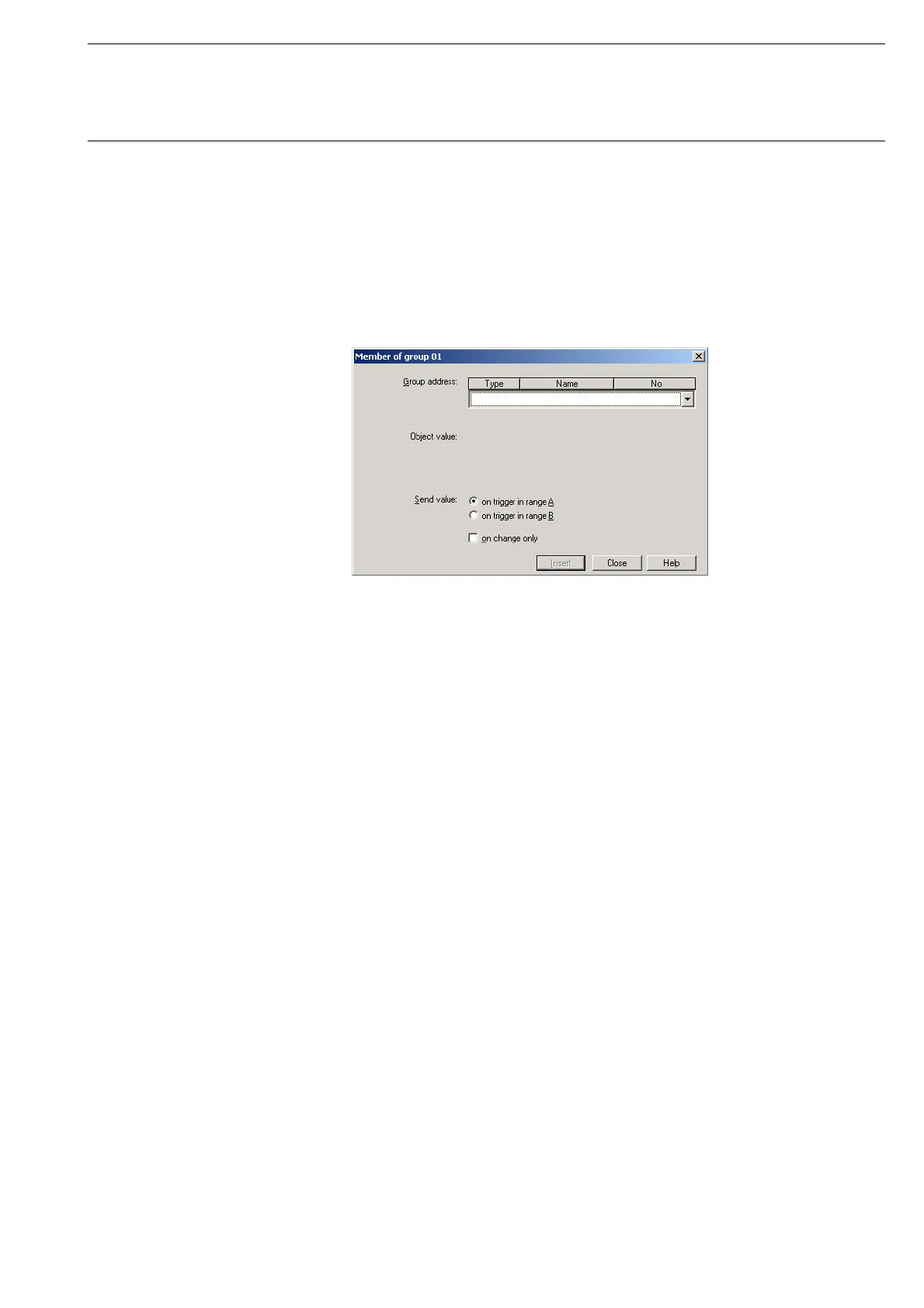

Fig. 177: Parameter window: “Insert member of group 01”
Group address
Options: new group address
The parameter is divided into Type, Name and No. The table can be
arranged and sorted as required.
The meaning of the individual columns is as follows:
Type
The type indicates which type of values a telegram with this group address
can send.
Name
The name of the group address is defined when configuring the ABB i-bus
®
installation and cannot be modified with the parameterisation software
PZM2.
No.
The number of the group address is the unique identifier of a group address.
