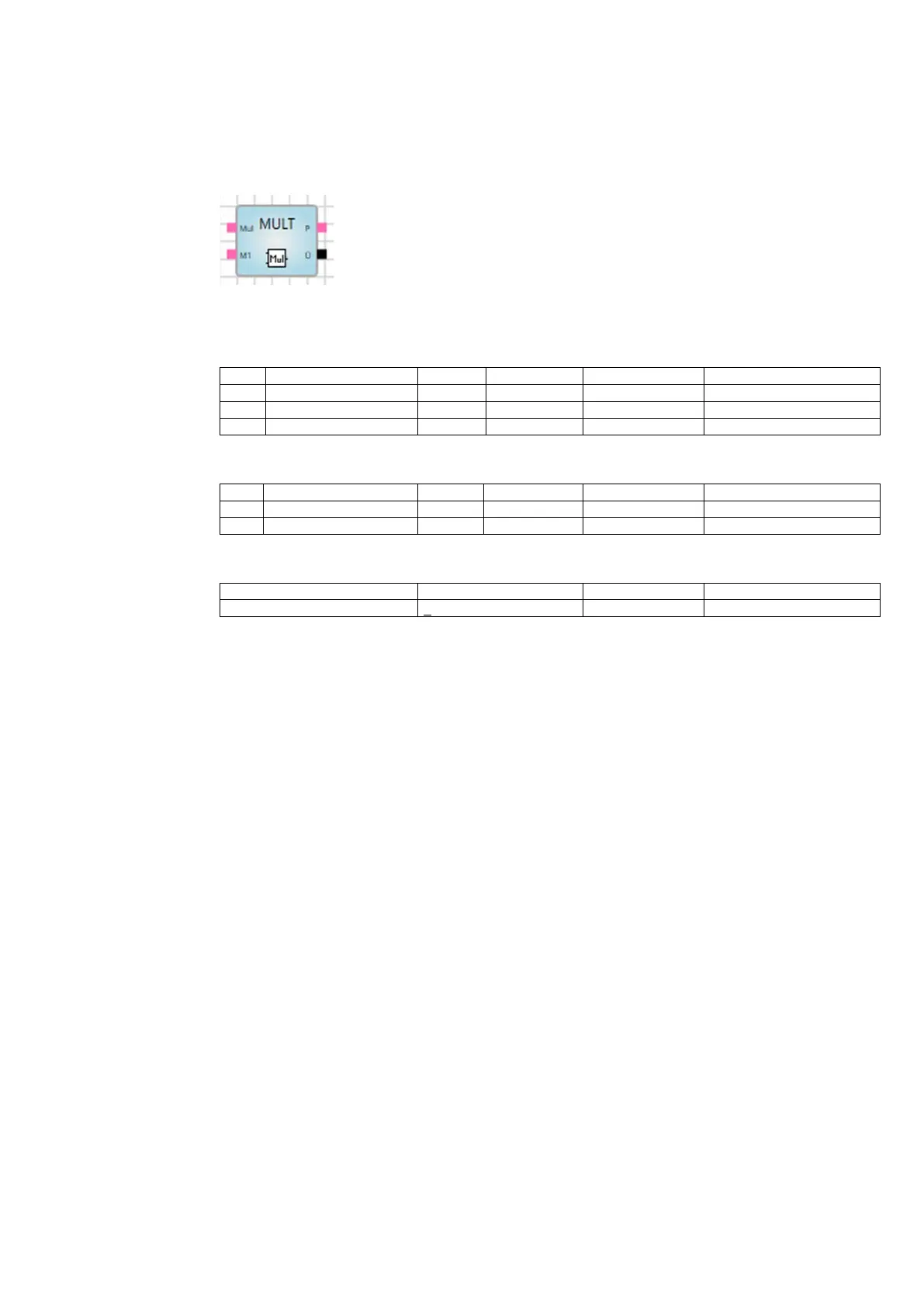

Multiplication (MULT)
Multiplies up to 16 input values.
Inputs
No.
DPT
Abbr.
Name
Visible
Description
1
8 bits or higher
Mul
Multiplicand
Always
2
Same as input 1
M
1
Multiplier
Always
3-16
Same as input 1
M
n
Multiplier
Parametrizable
n = 2…15
Outputs
No.
DPT
Abbr.
Name
Visible
Description
1
Same as input 1
P
Product
Always
2
1 bit
Ü
Overflow
Always
Indicates an overflow
Parameters
Name
Value
Visible
Description
Input count
2…16
Always
Function
Whenever a telegram is received the output starts a recalculation independently if the value has changed.
An overflow will occur if the value from the multiplication is outside the DPT range:
• If the multiplication is greater than the maximum DPT value:
o P = 0
o Ü = 1 (true)
• If the value from the multiplication is less than the minimum DPT value:
o P = 0
o Ü = 1 (true)
• If the value from the multiplication is within the valid range of the DPT:
o P = Product of all linked input values
o Ü = 0 (false)
Other
Inputs not connected are treated as if they did not exist.
