ABB i-bus KNX AC/S 1.x.1 Series User Manual

ABB i-bus
®
KNX
Parameters
406 2CDC508198D0211 Rev. A | AC/S 1.x.1

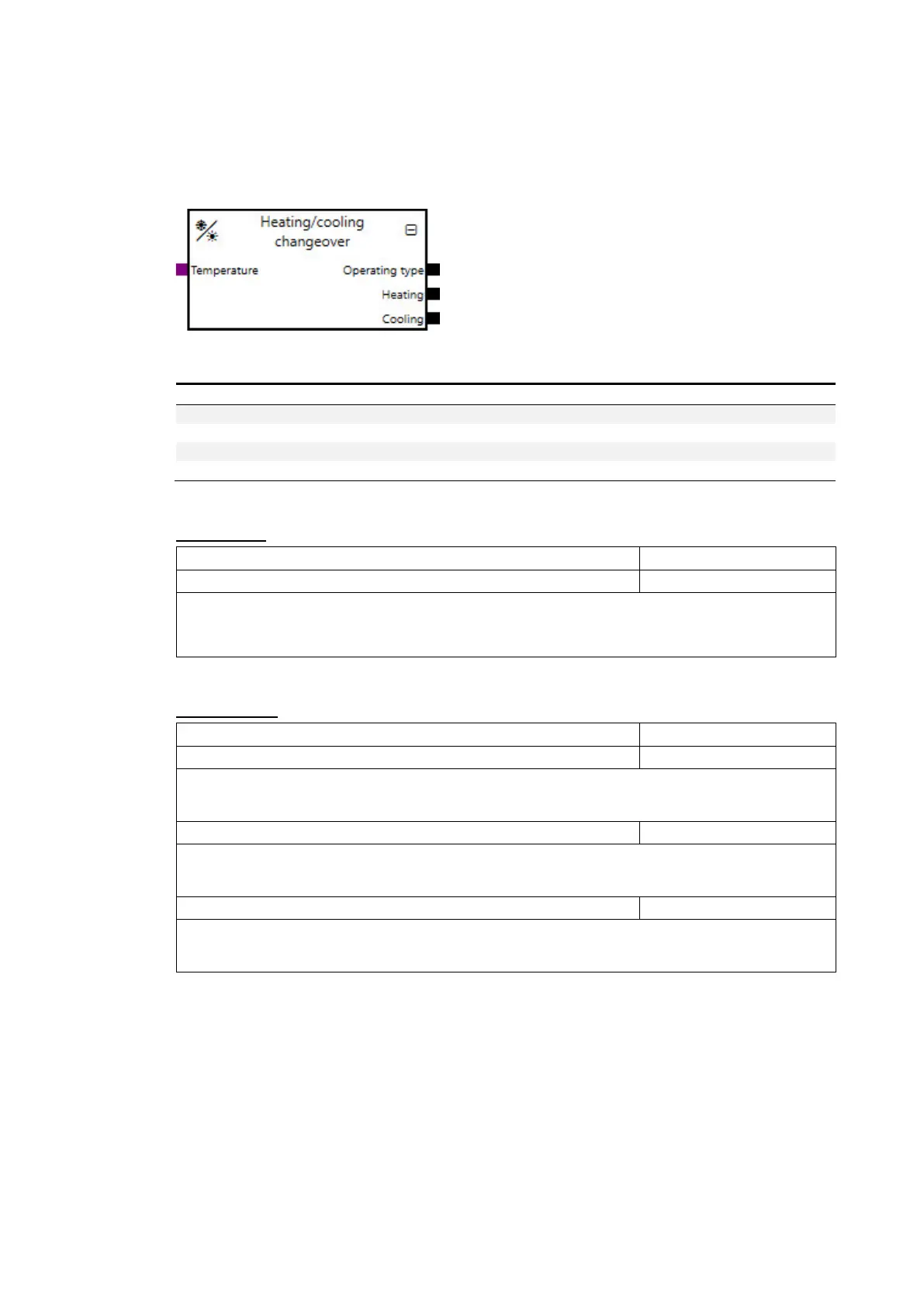

7.13.3 Sockets
Overview of the ASM sockets for linking to other modules:
Type
Object name
Data type
Input Temperature 9.001
Output
Operating type
1.100
Output
Heating
1.001
Output
Cooling
1.001
Input sockets
Object name Data type
Temperature
DPT 9.001
Either the outside temperature or the supply temperature must be connected to this input socket, depending on the setting
selected above. The changeover between heating and cooling is undertaken based on the temperature present here.
Signal value: -273...670760 °C
Output sockets
Object name
Data type
Operating type
DPT 1.100
Outputs the active operating type
Signal value:
0 = Cooling
1 = Heating
Heating
DPT 1.001
Outputs the state of the heating operating type.
Signal value: 0 = Off
1 = On
Cooling DPT 1.001
Outputs the state of the cooling operating type.
Signal value:
0 = Off
1 = On
