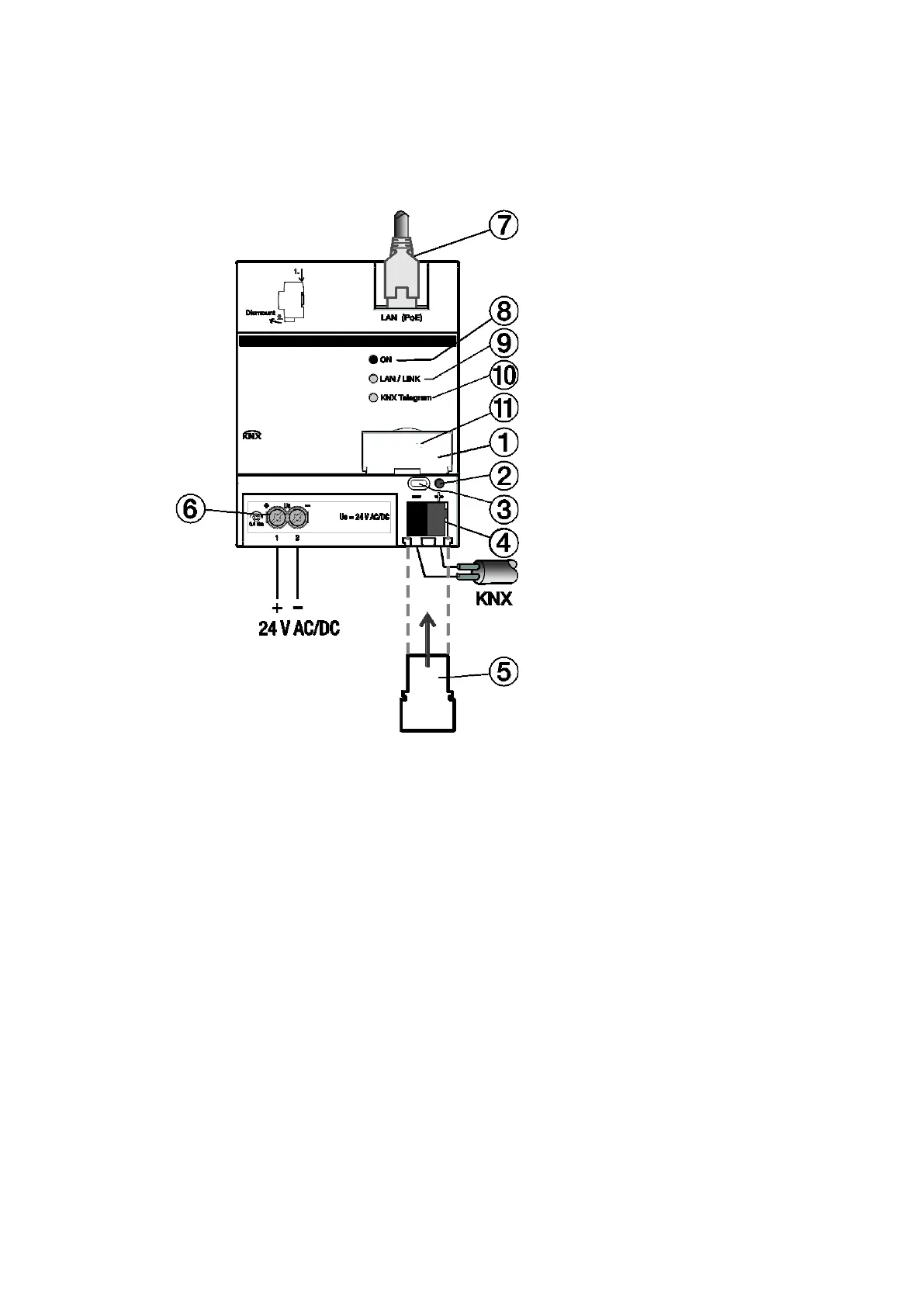

3.4.2 Connection diagram
Fig. 6: Connection diagram
Legend
1
Label carrier
7
Ethernet/LAN connection
2
KNX programming LED (red)
8
On LED (green)
3
KNX programming button
9
LAN/LINK LED (yellow)
4
KNX connection
10
KNX telegram LED (yellow)
5
Cover cap
11
Reset/factory settings button
(behind label carrier)
6
Power supply connection U
s
2CDC072062F0017
