ABB i-bus KNX AC/S 1.x.1 Series User Manual

ABB i-bus
®
KNX
Parameters
126 2CDC508198D0211 Rev. A | AC/S 1.x.1

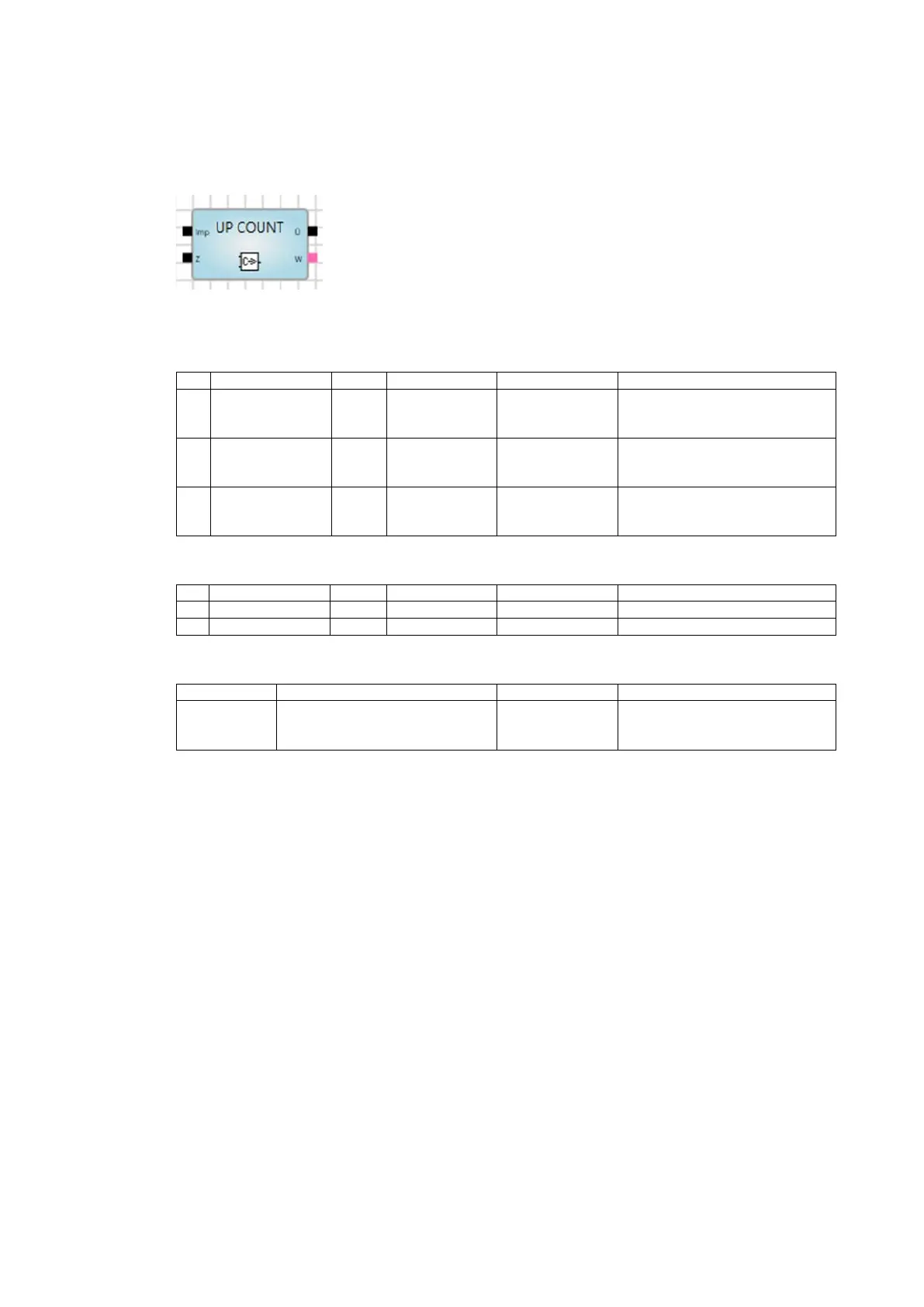

Up Counter (UP COUNT)
Counts upward from 0 to an adjustable threshold. Only counts value changes from 0 to 1.
Inputs
No.
DPT
Abbr.
Name
Visible
Description
1 1 bit Tr Trigger Always
Trigger input
Value change from 0 to 1
increments the counter by 1
2 1 bit Z Reset Always
0 = counter counts
1 = resets the counter to 0 and
disables it
3 8 bits or higher Gr Threshold Parametrizable
Counter threshold. Reaching this
threshold triggers an overflow at
the output.
Outputs
No.
DPT
Abbr.
Name
Visible
Description
1
8 bits or higher
W
Value
Always
Counter value, integer
2
1 bit
Ü
Overflow
Always
Counter threshold reached
Parameters
Name
Value
Visible
Description
Threshold
Integer value. Same data type as
the counter value
Always
Selecting the corresponding
checkbox activates the Threshold
input
