ABB i-bus KNX AC/S 1.x.1 Series User Manual

ABB i-bus
®
KNX
Parameters
128 2CDC508198D0211 Rev. A | AC/S 1.x.1

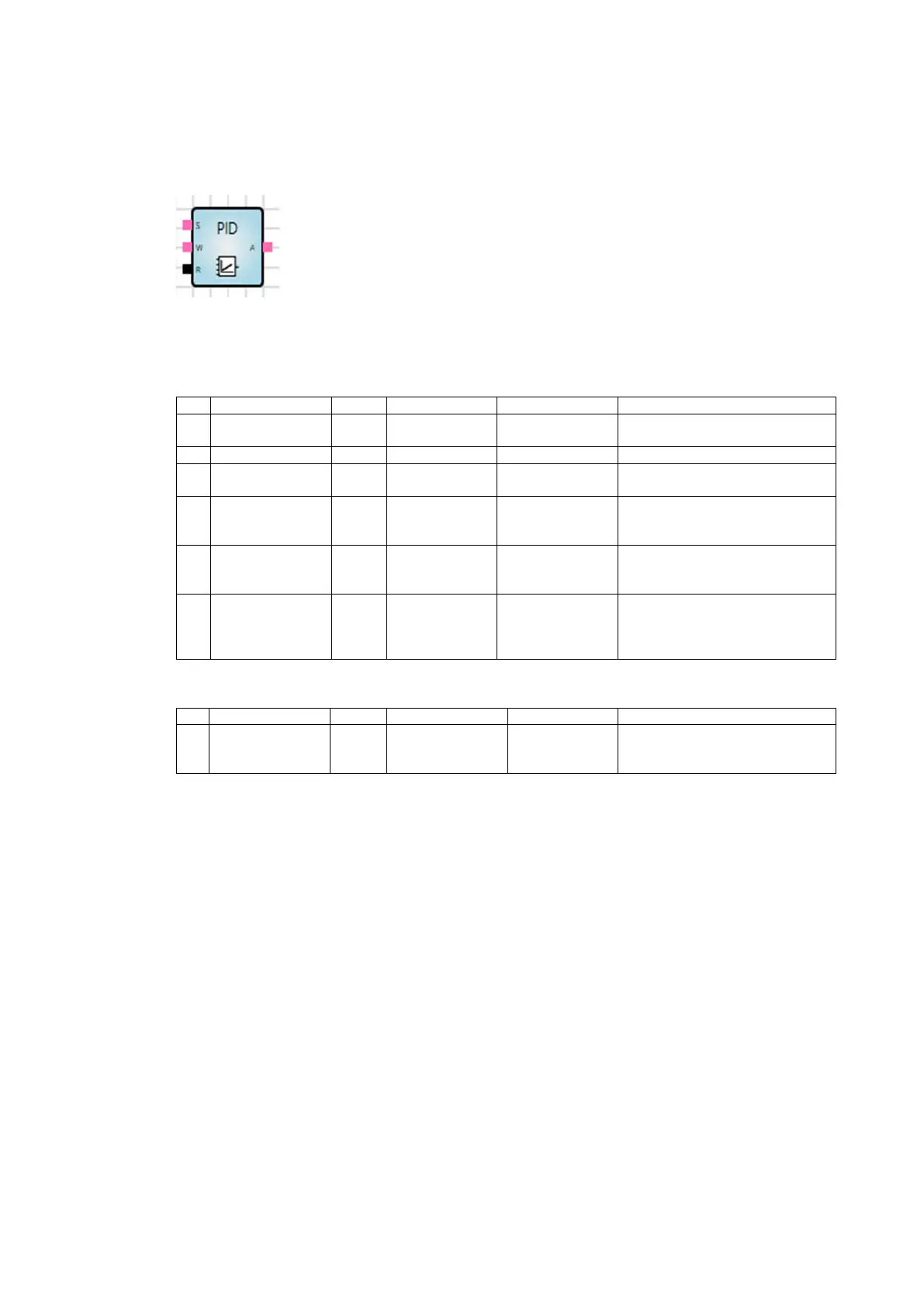

PID Controller (PID)
The controller calculates the output value from the difference between the Setpoint and the Actual Value.
The control parameters are proportional coefficient, integral time and derivative time.
Inputs
No.
DPT
Abbr.
Name
Visible
Description
1
Numerical,
1 byte or higher
S Setpoint Always
Target value of controller, e.g.
target room temperature
2
Same as input 1
W
Actual value
Always
Current measured value
3
Numerical,
1 byte or higher
PF
Proportional
coefficient
Parametrizable Controller gain
4
Numerical,
1 byte or higher
IZ Integral time Parametrizable
Integral time in [s]; typical value
range: 60...900 s
C
i
= 1/Integral Time
5
Numerical,
1 byte or higher
DZ Derivative time Parametrizable
Derivative time in [s]; typical
value range: 1...10 s
C
d
= Derivative Time
6 1 bit R Reset Always
Clears the integral element in the
controller
As long as R = 0 the integral
value is set to 0.
Outputs
No.
DPT
Abbr.
Name
Visible
Description
1
Numerical,
1 byte or higher
A Output Always
Control value, no unit
Typically 1 byte unsigned
(0...255)
