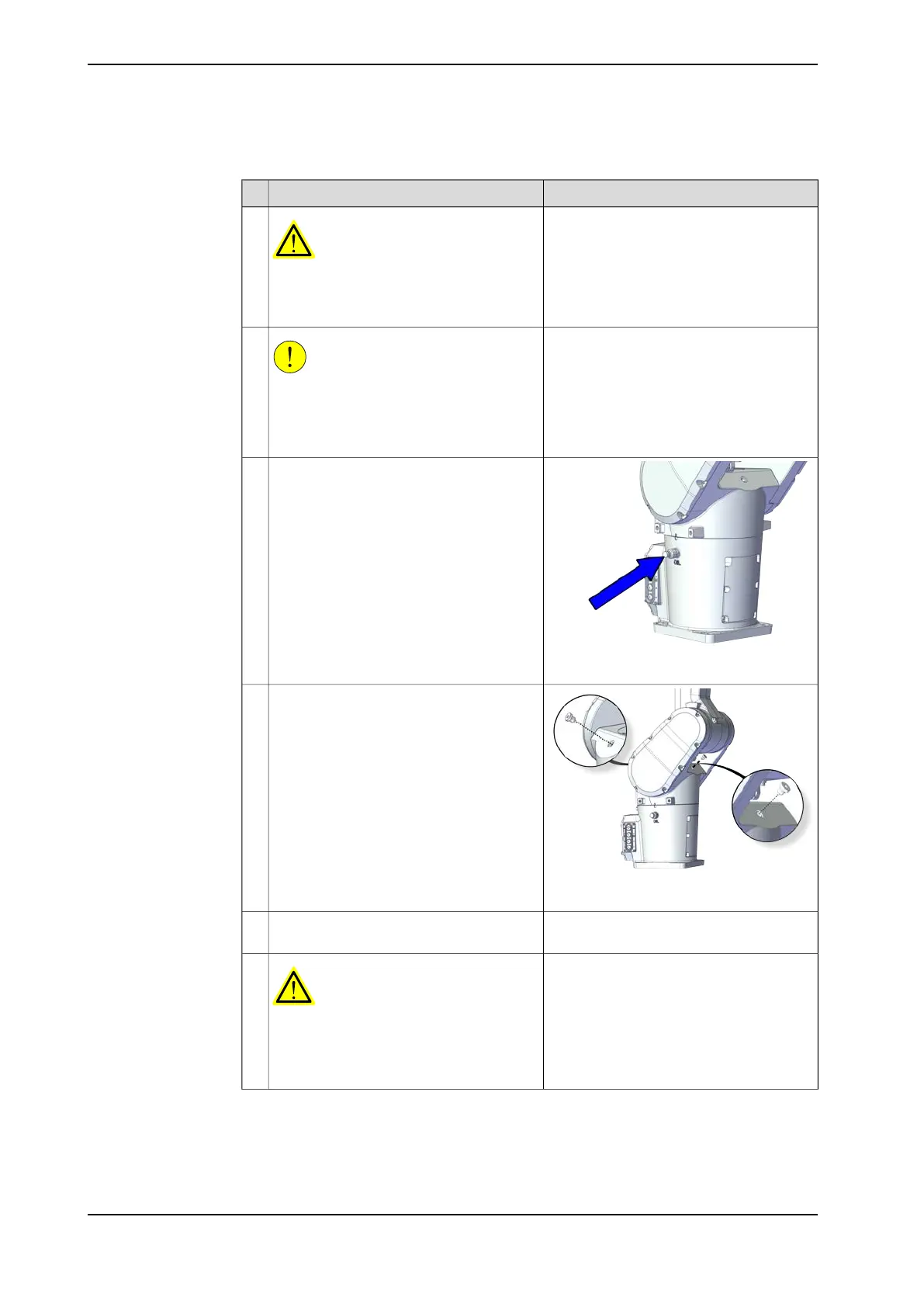

Draining oil of axis-1 gearbox
NoteAction
WARNING
Handling gearbox oil involves several
safety risks, see Gearbox lubricants (oil or
grease) on page 29.
1
CAUTION
The gearbox can contain an excess of
pressure that can be hazardous. Open the
oil plug carefully in order to let the excess
pressure out.
2
xx2000001514
Place the oil collecting vessel underneath
the quick coupling.
3
xx2000001513
Remove the oil plugs and keep them
opened to speed up the drainage.
4
Plug a G3/8 quick coupling connector with
pipe to the quick coupling on base.
5
WARNING
Used oil is hazardous material and must
be disposed of in a safe way. See Decom-
missioning on page 747 for more informa-
tion.
6
Continues on next page
498 Product manual - IRB 1300
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.6.1 Replacing the axis-1 motor
Continued
