NoteAction
xx2000001642
Valid for cabling with rear interface

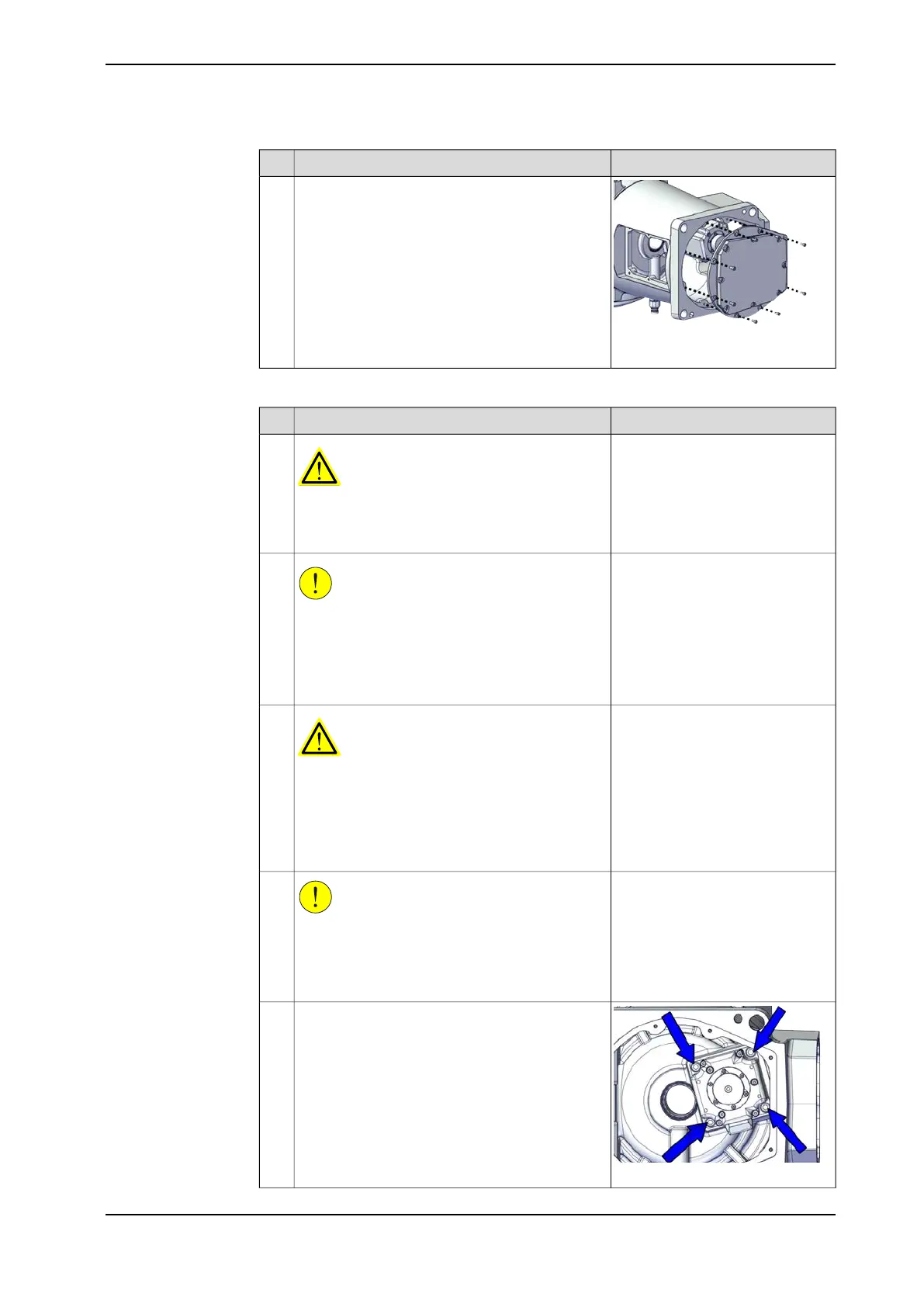

Remove the base bottom cover together with the
base adapter.
3
Removing the axis-1 motor
NoteAction
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
1
CAUTION
For robots with protection type Clean Room
Always cut the paint with a knife and grind the
paint edge when disassembling parts of the robot!
See Cut the paint or surface on the robot before
replacing parts on page 145.
2
WARNING
When separating the motor from the gearbox,
there may be pressure present in the gearbox,
causing lubricant to spray from the opening. Be-
fore proceeding, please read the safety informa-
tion in the section Gearbox lubricants (oil or
grease) on page 29.
3
CAUTION
Removing motors will release axes. This means
the axes can fall down.
Make sure axes are well supported before remov-
ing motors.
4
xx2000001643
Access the screws and washers securing the axis-
1 motor from the base bottom.
5
Continues on next page
Product manual - IRB 1300 501
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.6.1 Replacing the axis-1 motor
Continued
