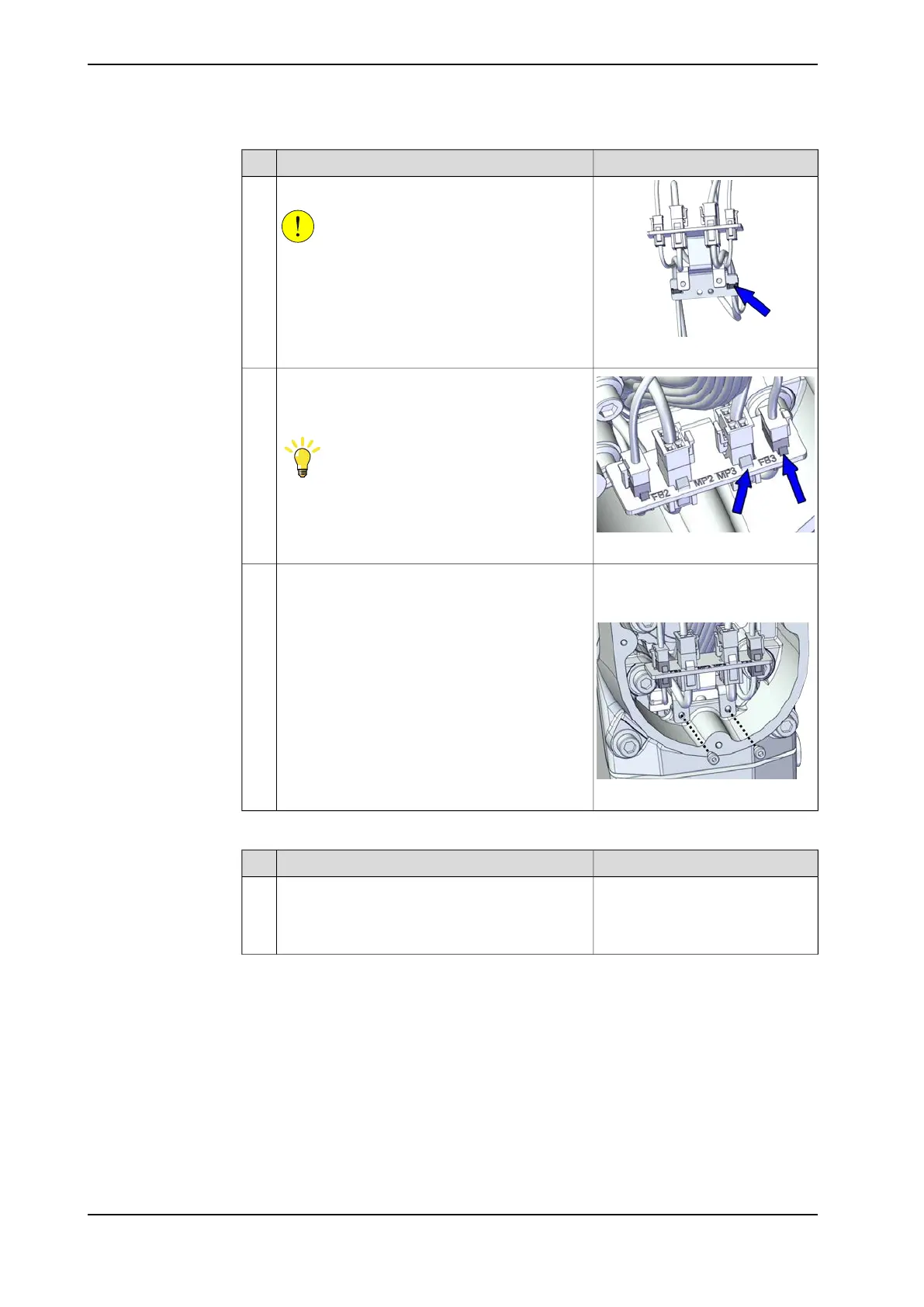

NoteAction
xx2000001620
Route and secure the cabling with a cable strap.
CAUTION
Correct cable routing is highly important.
If the cables are routed and secured incorrectly
the cables can be damaged.
3
xx2000001619
Reconnect the connectors.
• FB3
• MP3
Tip
See the number markings on the connectors for
help to find the corresponding connector.
4
Screw: M4x8 12.9 Lafre
2C2B/FC6.9 (2 pcs)
Refit the connector plate to the lower arm.5
Tightening torque: 2.6 Nm
xx2000001548
Refitting the lower arm covers
NoteAction
For robots with protection type Clean Room:1
Clean the joints that have been opened and wipe
the parts free from particles with spirit on a lint
free.
Continues on next page
532 Product manual - IRB 1300
3HAC070390-001 Revision: G
© Copyright 2020-2022 ABB. All rights reserved.
5 Repair
5.6.3 Replacing the axis-3 motor
Continued
