Refitting, link
Use this procedure to refit the link of the linkage.
NoteAction
CAUTION
The link weighs 46 kg.
All lifting accessories used must be sized
accordingly!
1
Secure the link with a roundsling in an
overhead crane and lift it to the mounting
position.
2
Art.no. is specified in Required equipment
on page 237
Fit the auxiliary shaft on the shaft.3
Replace the radial seal if needed!Fit the support ring, with the radial seal fit-
ted, on the shaft.
4

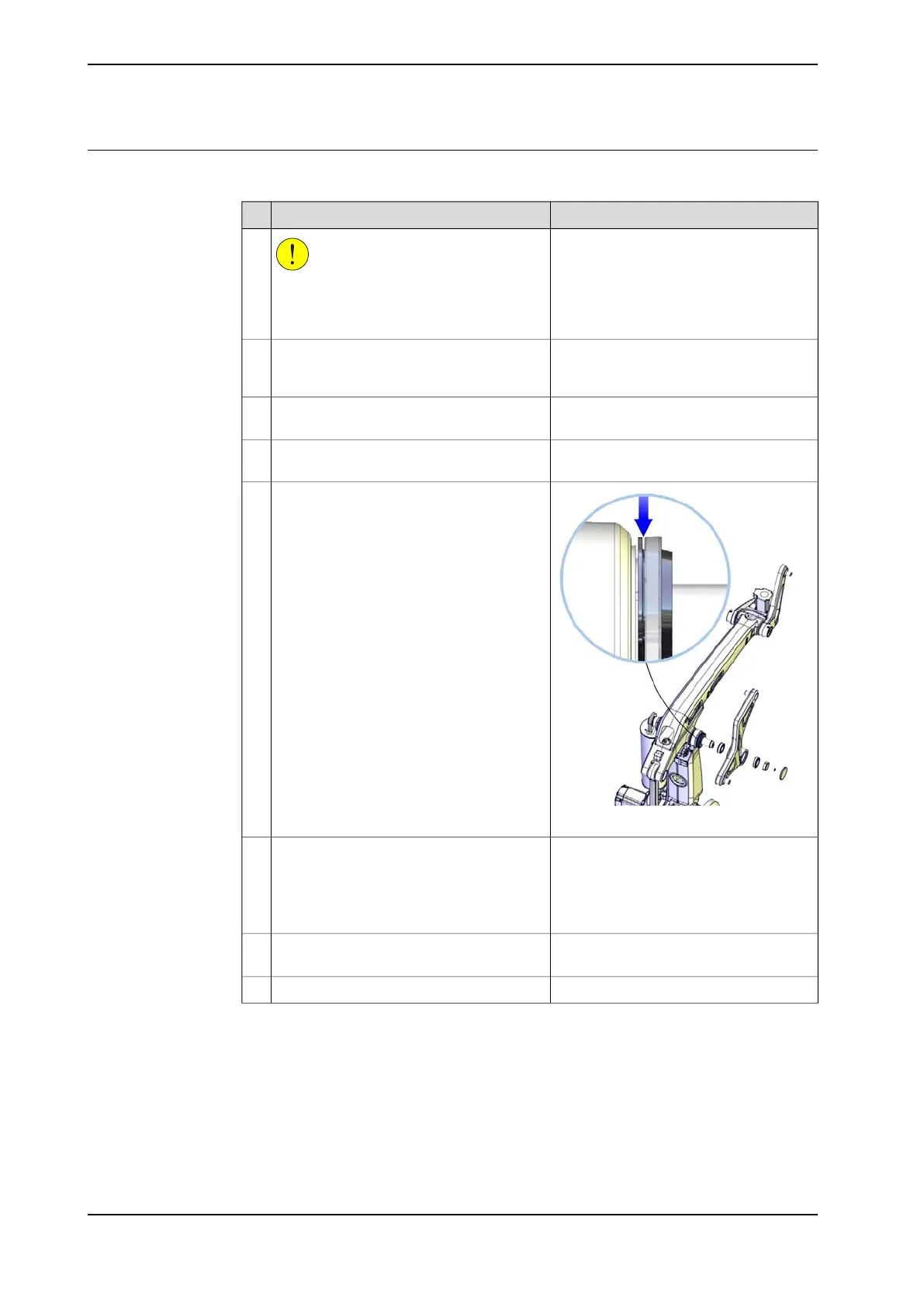

xx1100000043
Fill the gap between the radial sealing ring
and the support ring with rust preventive
(Mercasol 3106). See figure!
5
See Cut away view of the assembly of the
link on page 236.
Lubricate and place the bearings and link
on the shaft, in the following order:
• bearing
• link
• bearing
6
Art.no. is specified in Required equipment
on page 237
Apply the pressing tool and secure the link.7
Loctite 243Apply locking liquid on the lock nut.8
Continues on next page
242 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.6 Replacement of linkage - link
Continued
