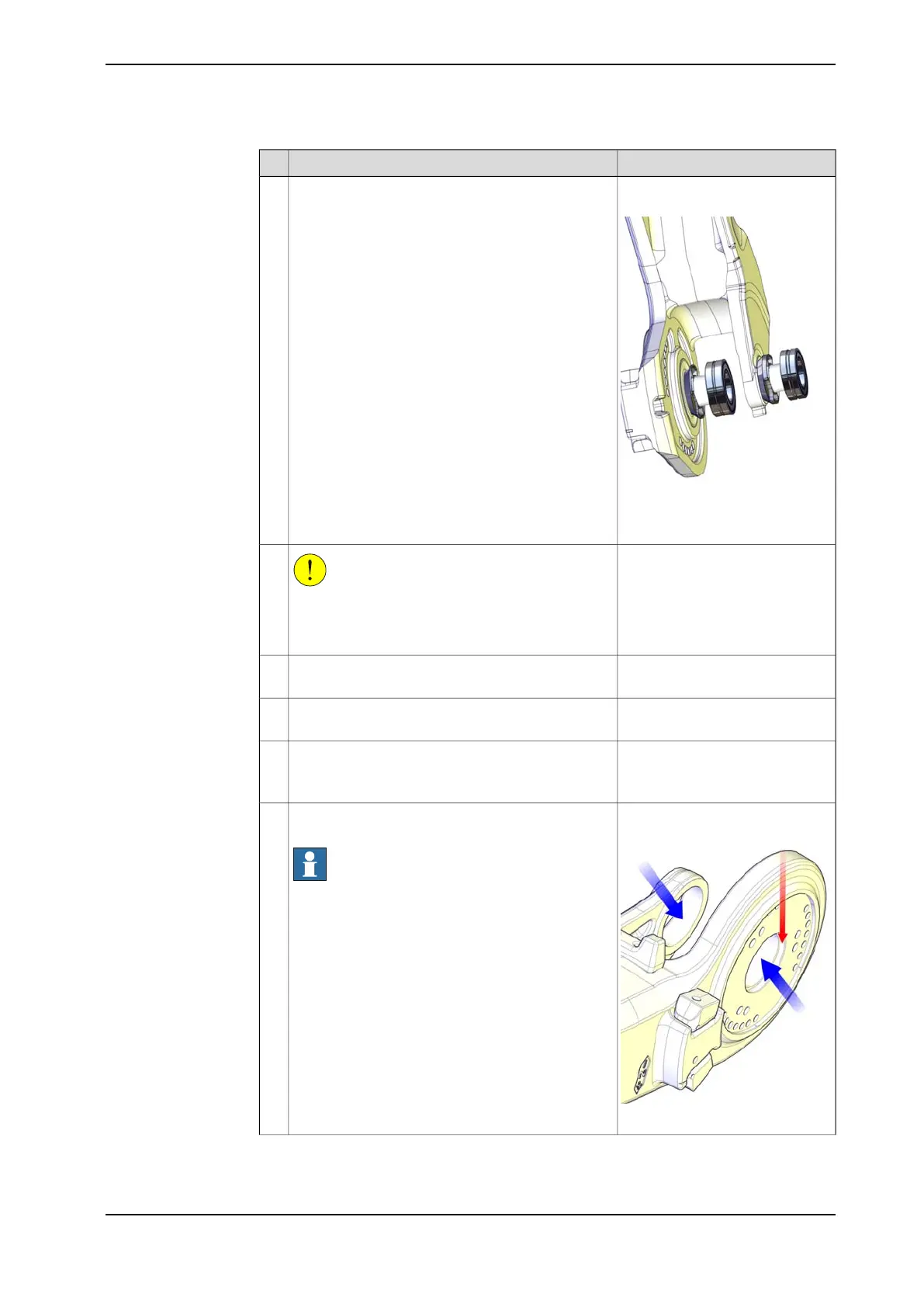

NoteAction
Art. no. is specified in Required
equipment on page 259
xx1000001377
Refit a bearing on each shaft with pressing tool,
lower arm.
4
CAUTION
The parallel arm system weighs 125 kg.
All lifting accessories used must be sized accord-
ingly!
5
Art. no. is specified in Required
equipment on page 259.
Fit the lifting device, parallel arm.6
Art. no. is specified in Required
equipment on page 259
Lift the parallel arm onto the workbench where the
lower arm is placed.
7
Adjust the lower arm in a way that both holes are
parallel.
8
Use a level.
xx1000001380
Apply some grease in the holes in the lower arm
(thick blue arrows).
Note
Do not put grease on the surfaces for the VK covers
(thin red arrow)!
9
Continues on next page
3HAC039838-001 Revision: C 263
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.4.9 Replacement of parallel arm
Continued
