NoteAction
CAUTION
The gearbox weighs 69 kg.
All lifting accessories used must be sized
accordingly!
20
If required, apply two screws, M12x100 to
the holes in the gearbox, in order to press
it free. (The screws need to have a full
thread.)
21
CAUTION
When the gearbox comes free from the
frame and comes off the guide pins it will
tilt and there is a risk of damage to the
gearbox surfaces! Be aware of this and re-
move the gearbox carefully!
22
xx1000001401

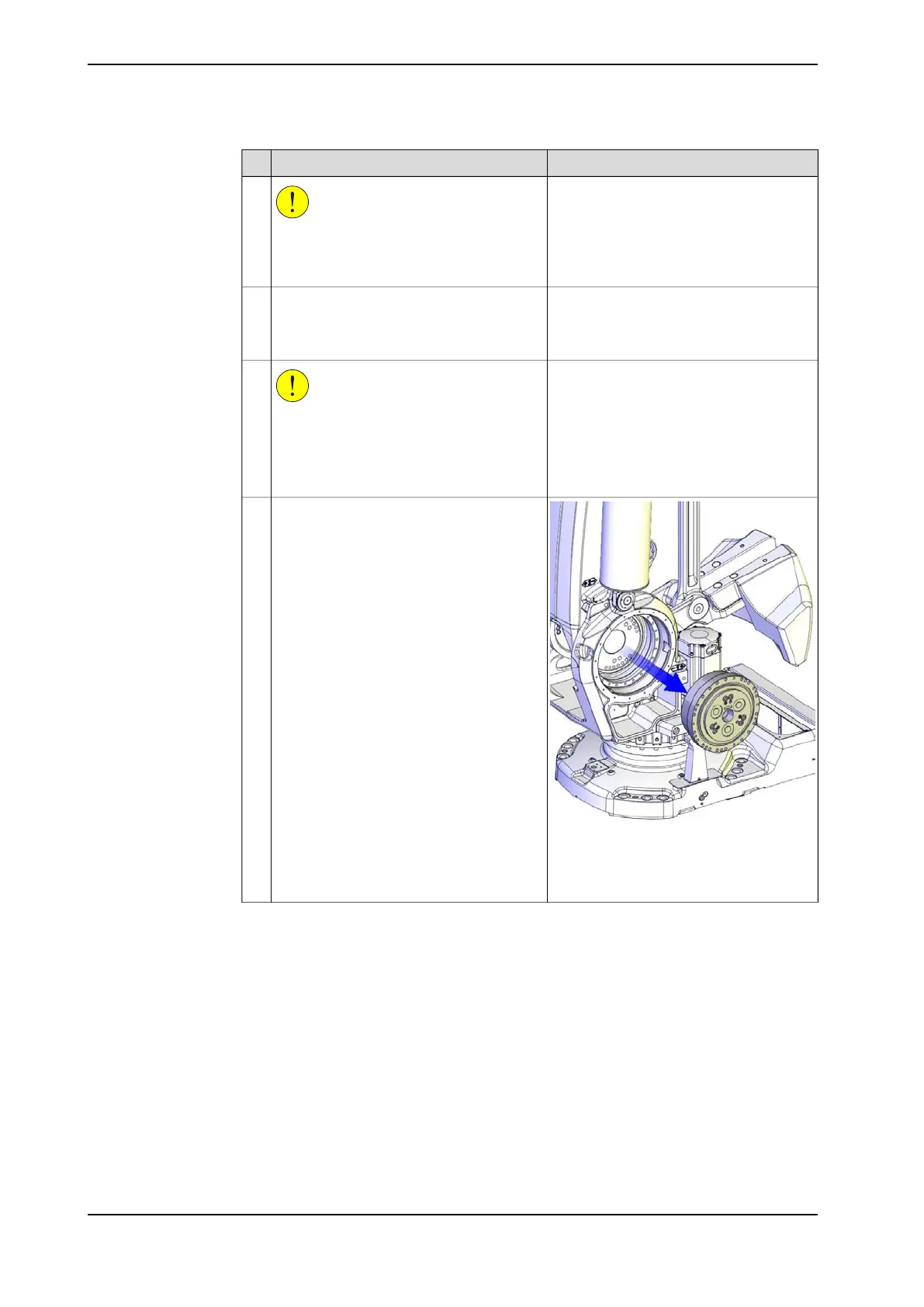

Remove the gearbox axis 2-3 using an
overhead crane or similar, with guidance
from the fitted guide pins.
23
Continues on next page
316 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.2 Replacing the gearbox, axes 2- 3
Continued
