NoteAction
xx1000001411

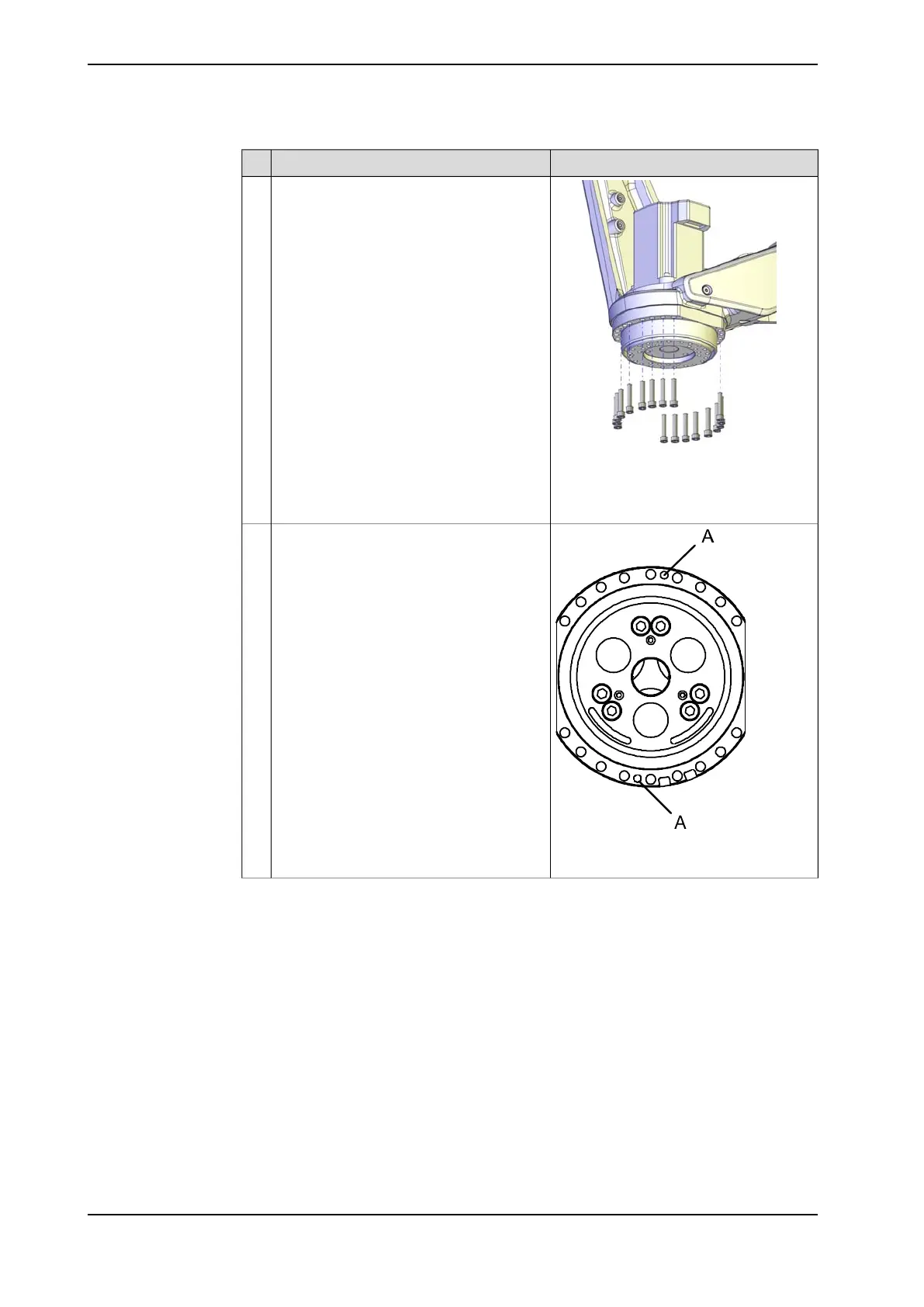

Remove the gearbox by unscrewing the at-
tachment screws and washers that secure
it.
6
xx0200000220
If required apply two M8 screws in the holes
shown in the figure, and press out the
gearbox.
7
A: M8 holes for pressing out the gearbox
Continues on next page
324 3HAC039838-001 Revision: C
© Copyright 2013 ABB. All rights reserved.
4 Repair
4.7.3 Replacing gearbox axis 6
Continued
