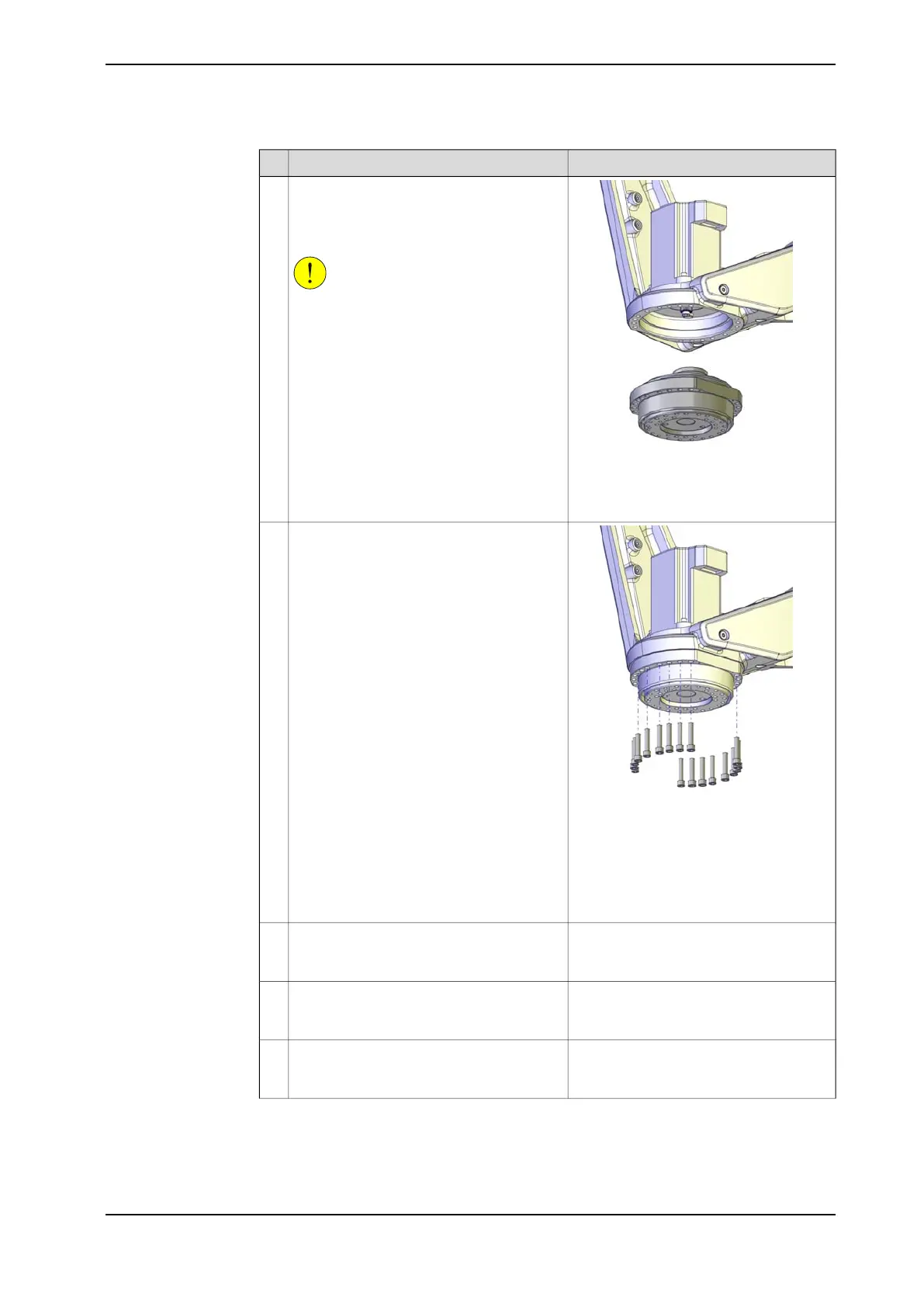

Carefully insert the axis 6 gearbox into the
tilthouse, using guide pins.
Make sure the gears of the gearbox mate
with the pinion of the axis 6 motor.
CAUTION
Do not damage pinion or gears in the pro-
cess!
5
xx1000001411
M10x50 quality 12.9 Gleitmo (18 pcs)
Tightening torque:
• 65 Nm
Secure the gearbox with its attachment
screws and washers.
Reused screws may be used, providing they
are lubricated as detailed in section Screw
joints on page 347 before fitting.
6
See section:
• Replacing the turning disk on
page 185
Refit the turning disk.7
See section:
• See section Performing a leak-
down test on page 148.
Perform a leak-down test.8
See section:
• Changing oil, gearbox axis 6 on
page 135
Refill the gearbox with oil.9
