ABB IRC5 Compact User Manual

Info/illustrationAction
xx1000000956

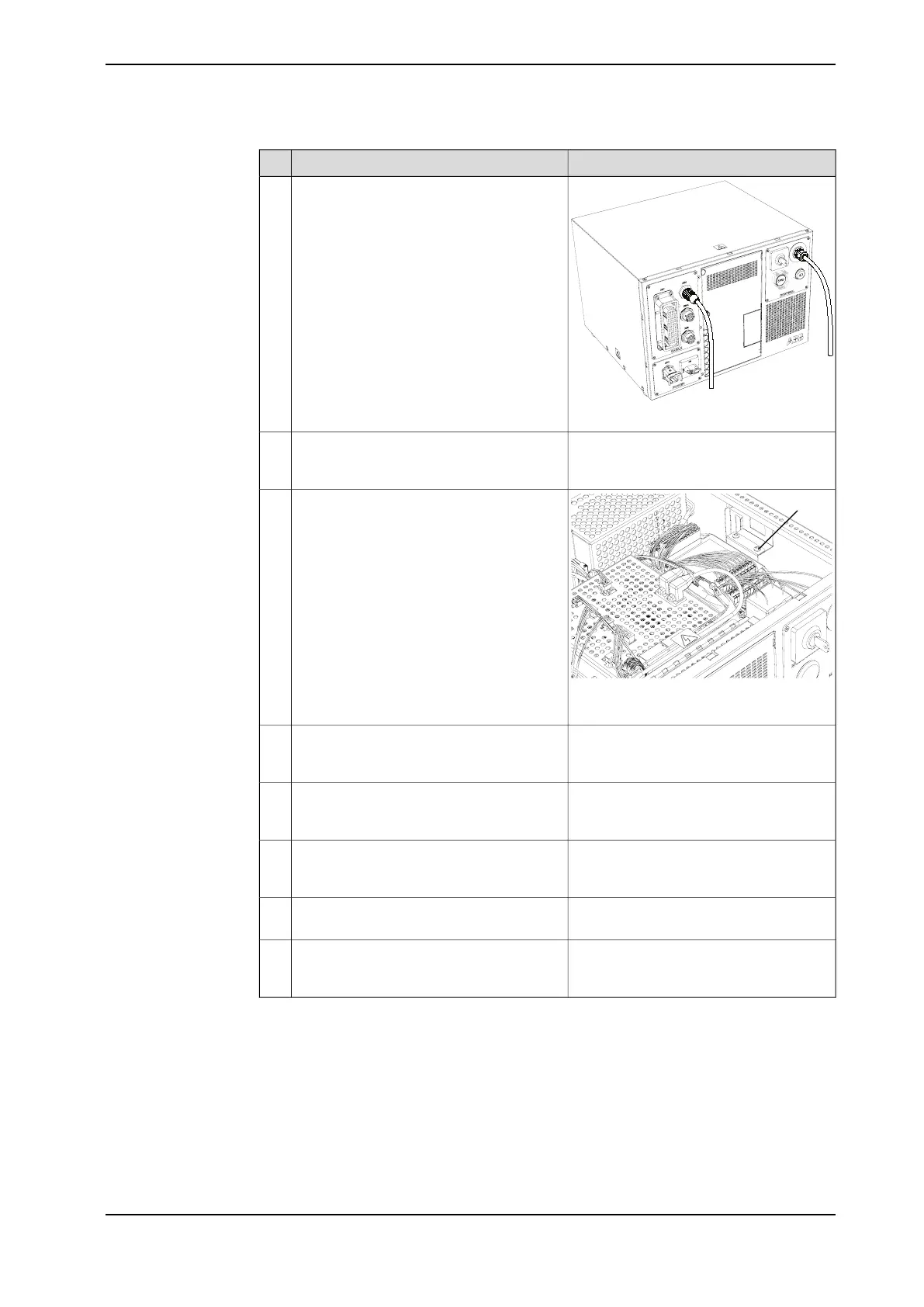

Fit the cable from the external operator's
panel harness to the controller through the
hole for Emergency stop button and tighten
the cable gland.
8
Cover the holes for Motor on button and
Mode switch on the controller with a
blanking plug.
9
A
xx1400002803
Connect the earth cable to the ground ter-
minal inside the cabinet.
10
• A: ground terminal
Connect the signal connectors Ext.A21.X6
and Ext.A21.X9 to the connector X6 and X9
on the safety board.
11
Strap the cables and secure the attach-
ments screws for contactor unit and safety
board unit.
12
Fit the external operator's panel harness to
the wall cabinet with four attachment
screws.
13
Connect the connectors and earth cable
inside the wall cabinet.
14
Mount the front panel of the external oper-
ator's panel on the wall cabinet with four
attachment screws.
15
Product manual - IRC5 Compact 101
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.11.1 Installation of external operator's panel
Continued
