2.6.6 Fitting the connector
General
This section describes how to manufacture a cable for connecting the mains power
to the controller.
Specifications
The following describes the cable and fuse requirements for the mains power
connection to the IRC5 Compact controller.
DescriptionComponent
Flexible oil resistant rubberCable type
3 x 2.5 mm
2
Cable area
Delay action fuse 16AFuse
Included parts
The following parts are included in the delivery.
QuantityOrder numberRecommended supplierPart
13HAC051426-001Harting, 19 20 003 1640Hood
13HAC037697-001Harting, 09 12 005 2733Female insert
13HAC034913-001Harting, 19 00 000 5184Cable gland
Procedure
Use the following procedure to fit the connectors.
Note/illustrationAction
See previous specifications.Select a suitable single phase cable and earth cable,
and cut it to desired length.
1
xx0900000365

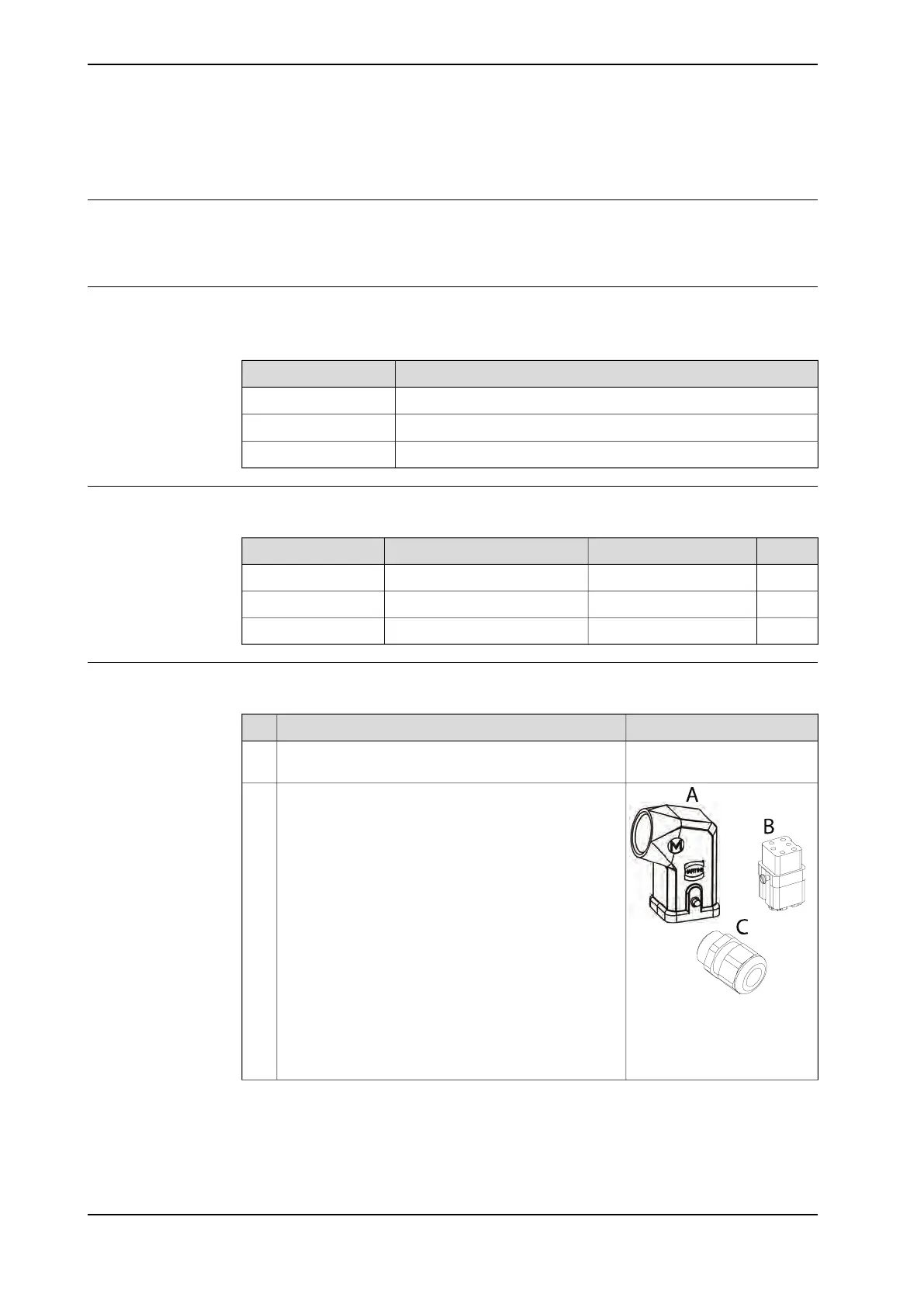

Fit the cable through the cable gland and hood.2
• A: hood
• B: female insert
• C: cable gland
Continues on next page
74 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.6.6 Fitting the connector
