2.6.1.2 Connecting a FlexPendant

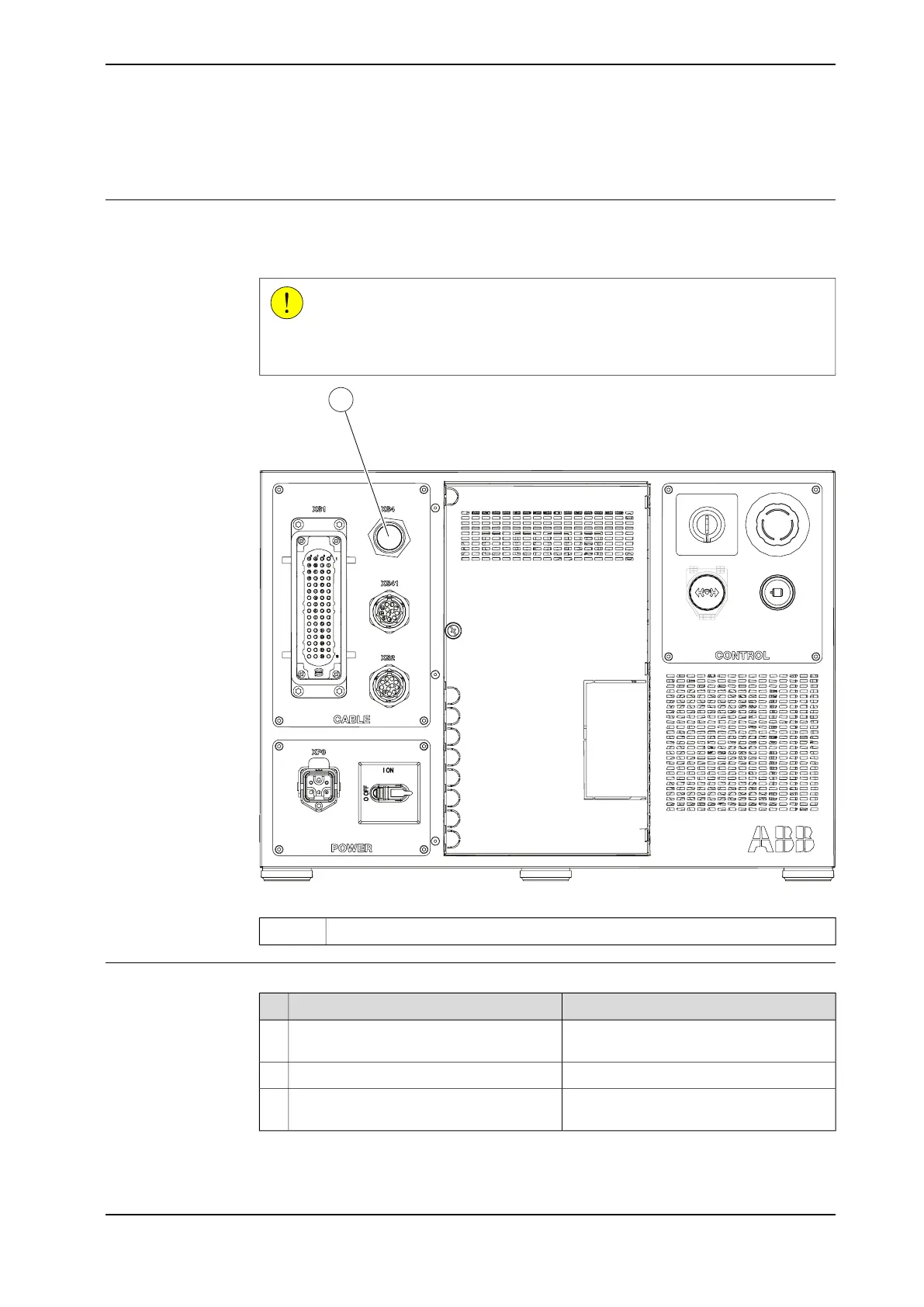

Location of FlexPendant connector
The FlexPendant connector on the Compact Controller is located on the front of
the controller.
CAUTION
Always inspect the connector for dirt or damage before connecting it to the
controller. Clean or replace any damaged parts.
A
xx1400001371
FlexPendant connectorA
Connecting a FlexPendant
InformationAction
The controller must be in manual mode.Locate the FlexPendant socket connector
on the controller or operator’s panel.
1
Plug in the FlexPendant cable connector.2
Screw the connector lock ring firmly by
turning it clockwise.
3
Product manual - IRC5 Compact 57
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.6.1.2 Connecting a FlexPendant
