4.19.3 Replacement of line filter
Location

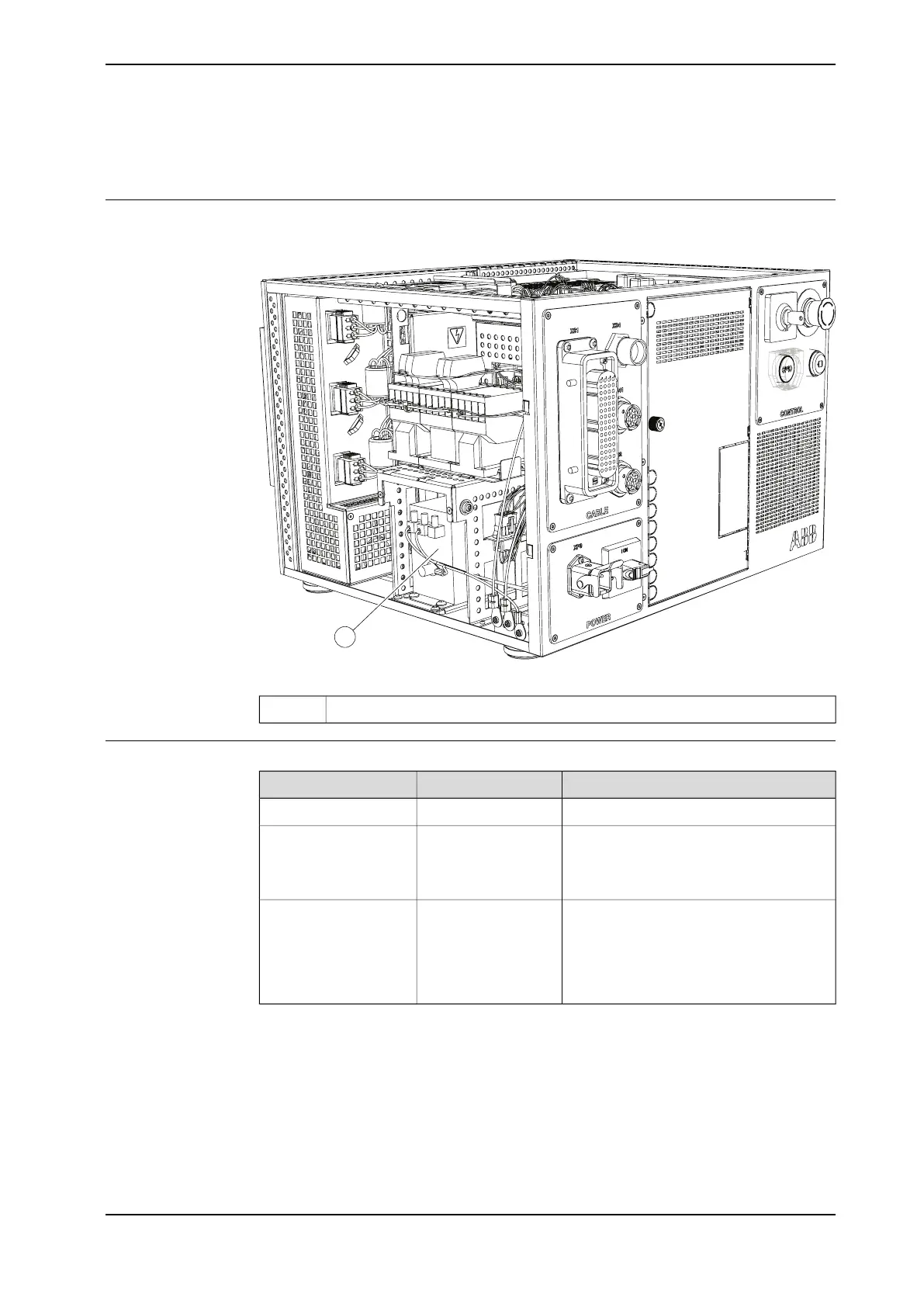

The following illustration shows the location of the line filter.
A
xx1400001470
FilterA
Required equipment
NoteSpare part no.Equipment
See Controller system parts on page 209.3HAC037698-001Line filter
The content is de-
scribed in section
Standard toolkit, IRC5
on page 207.
Standard toolkit
Other tools and proced-
ures may be required.
See references to these
procedures in the step-
by-step instructions be-
low.
Continues on next page
