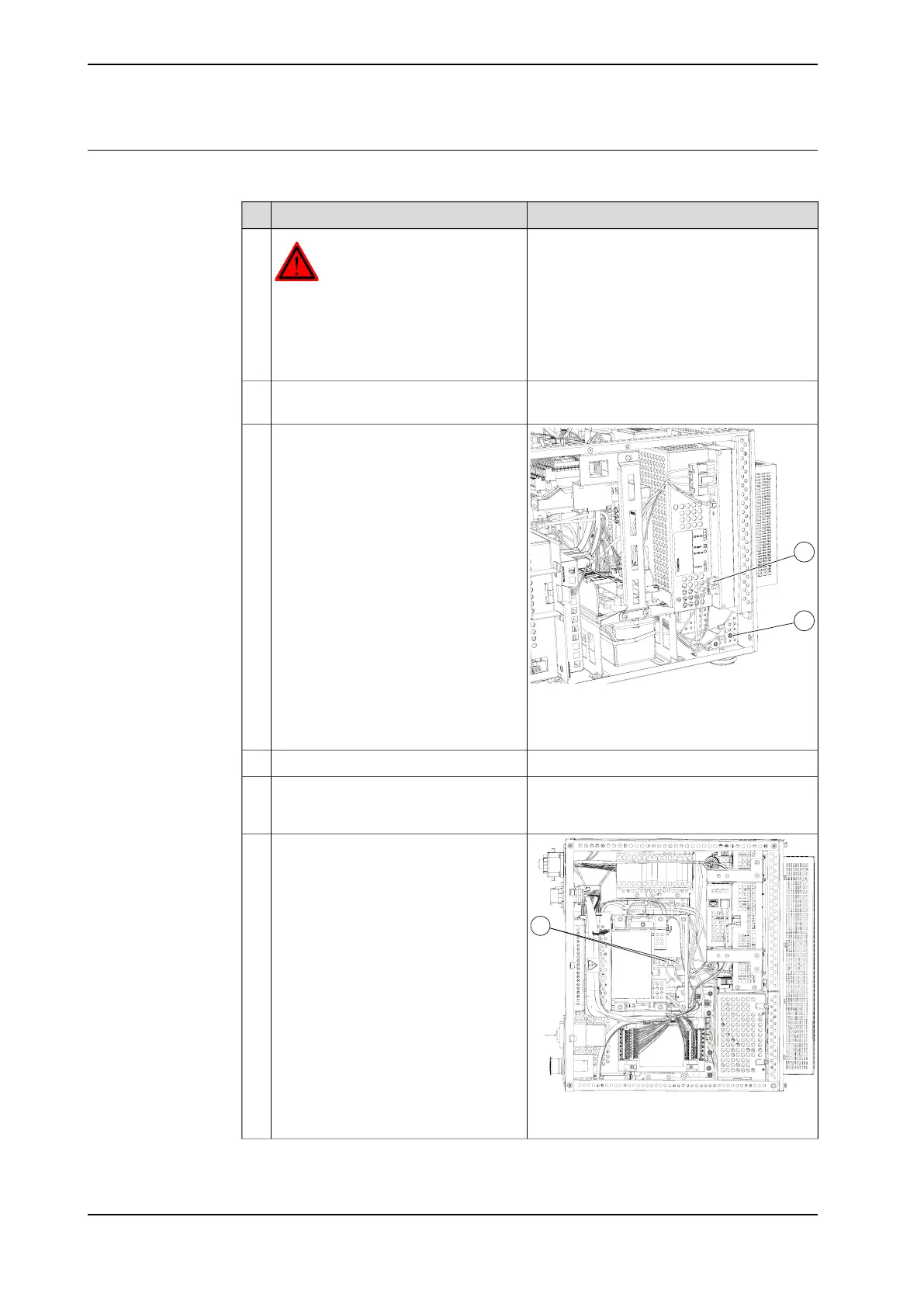

Removal
Use the following procedure to remove the line filter.
Note/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety in-
formation in section DANGER - Make
sure that the main power has been
switched off! on page 33.
1
See Opening the IRC5 Compact controller on
page 89.
Remove the cover of the cabinet.2
xx1400002853
Disconnect connector X1 from the sys-
tem power supply.
3
A Connector X1
B Ground connection
Disconnect the ground connection.4
See Replacement of Remote Service box on
page 181.
Disconnect and remove the safety board
unit to be able to access the secondary
side of the line filter.
5
xx1400002854
Disconnect the cables from L1', L2' on
the secondary side of the line filter.
6
A Line filter connections
Continues on next page
198 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.3 Replacement of line filter
Continued
