Note/illustrationAction
A
B
C
xx1400002849

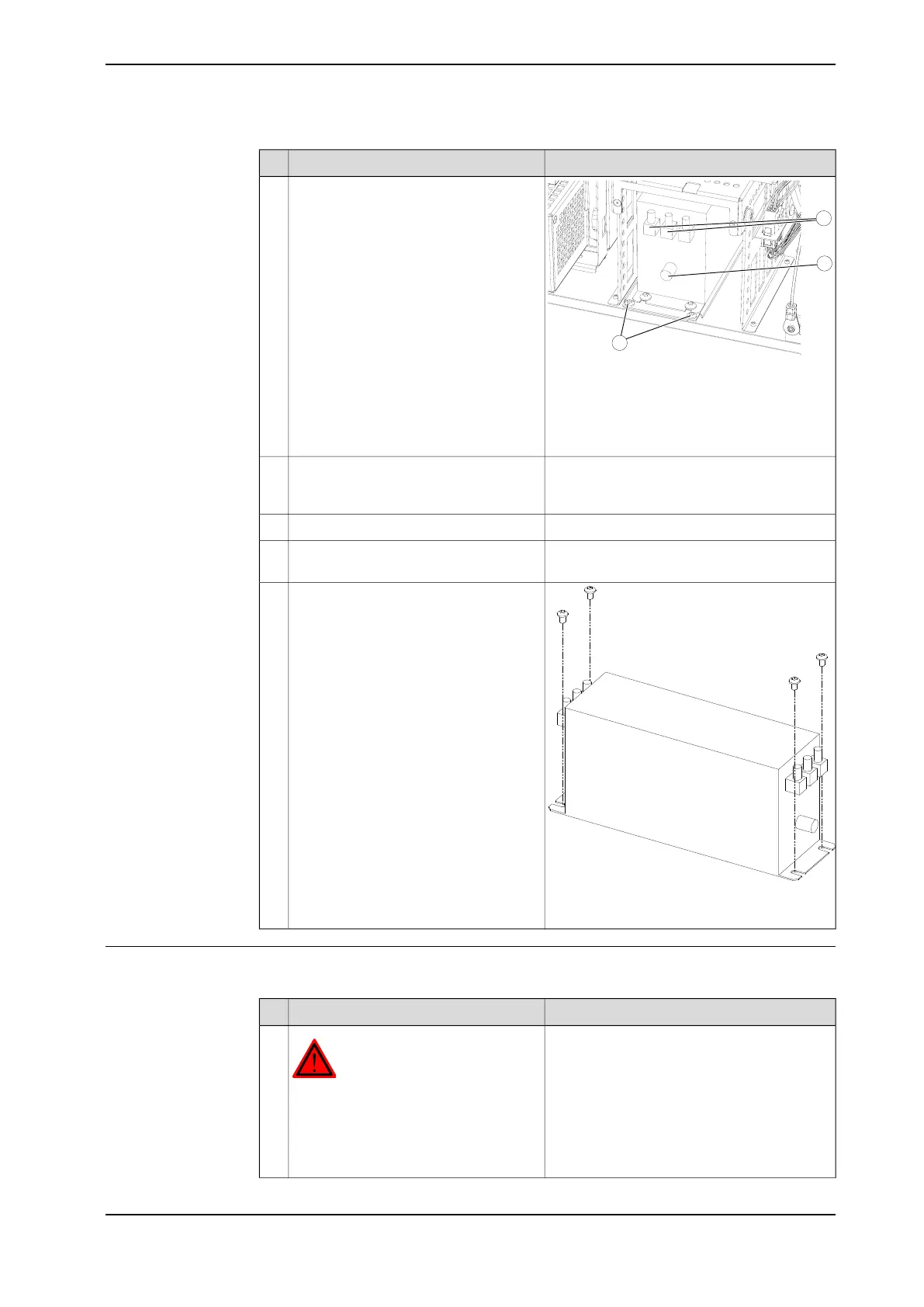

Remove the two support bracket attach-
ment screws and pull the line filter out
slightly.
7
A Attachment screws for the support
bracket
B L1 and L2 connections
C Ground connection
Disconnect the cables from L1, L2 and
ground connection on the primary side
of the line filter.
8
Pull the line filter unit out.9
Disconnect the ground cable cable from
the secondary side of the line filter.
10
xx0900000572
Remove the four attachment screws of
the line filter and remove it from the
support bracket.
11
A Attachment screws for the line filter
Refitting
Use the following procedure to refit the line filter.
Note/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety in-
formation in section DANGER - Make
sure that the main power has been
switched off! on page 33.
1
Continues on next page
Product manual - IRC5 Compact 199
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.3 Replacement of line filter
Continued
