4.16 Replacement of system fans
Location

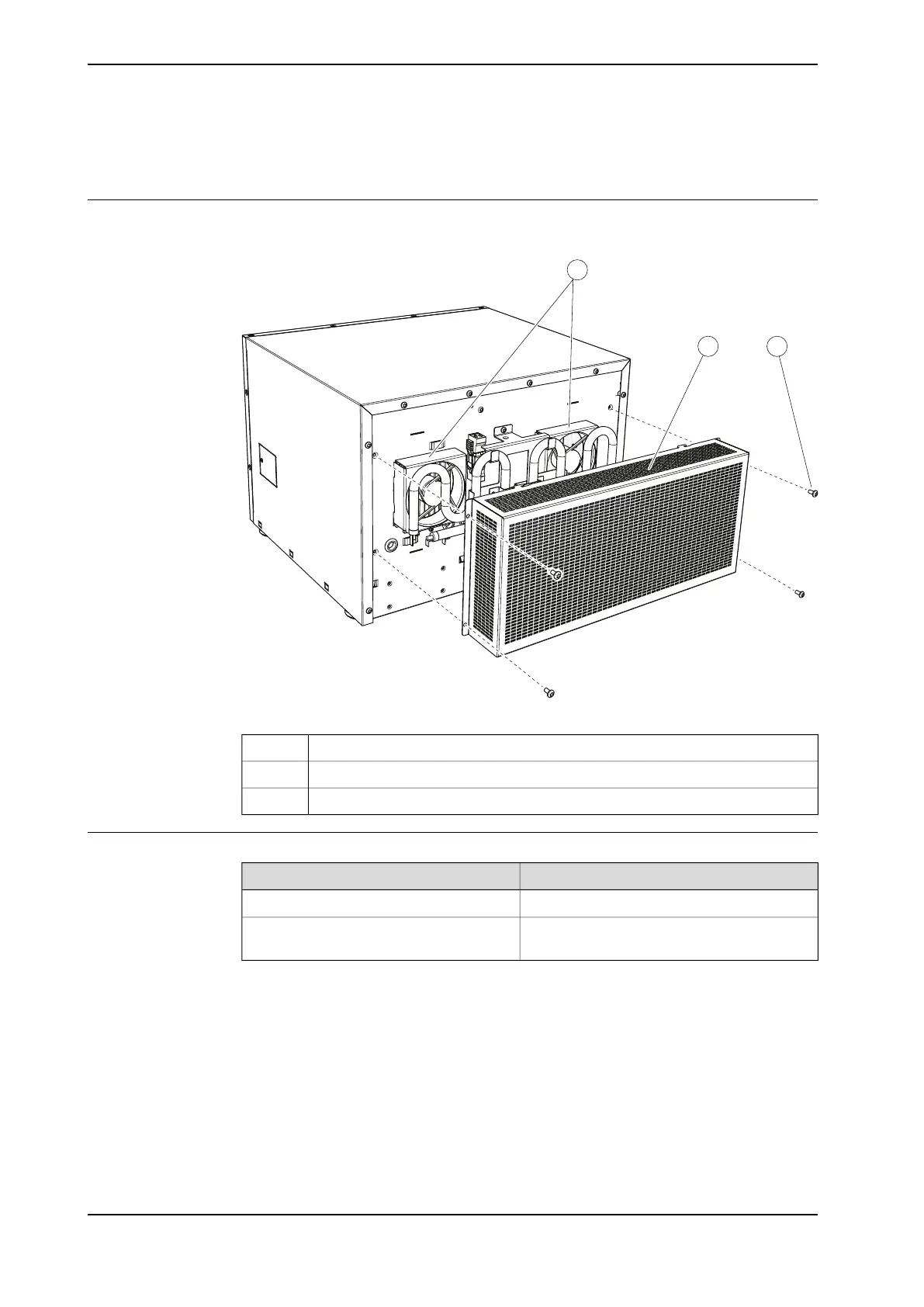

The following illustration shows the location of the system fans.
A
B C
xx1400001454
System fanA
Fan coverB
Attachment screwsC
Required equipment
NoteEquipment
See Miscellaneous parts on page 212.Fan with receptacle
The content is described in section Standard
toolkit, IRC5 on page 207.
Standard toolkit
Continues on next page
