Refitting
Use the following procedure to refit the line filter.
Note/illustrationAction
DANGER
Before commencing any work
inside the cabinet, please ob-
serve the safety information in
section DANGER - Make sure
that the main power has been
switched off! on page 33.
1
xx1400001458

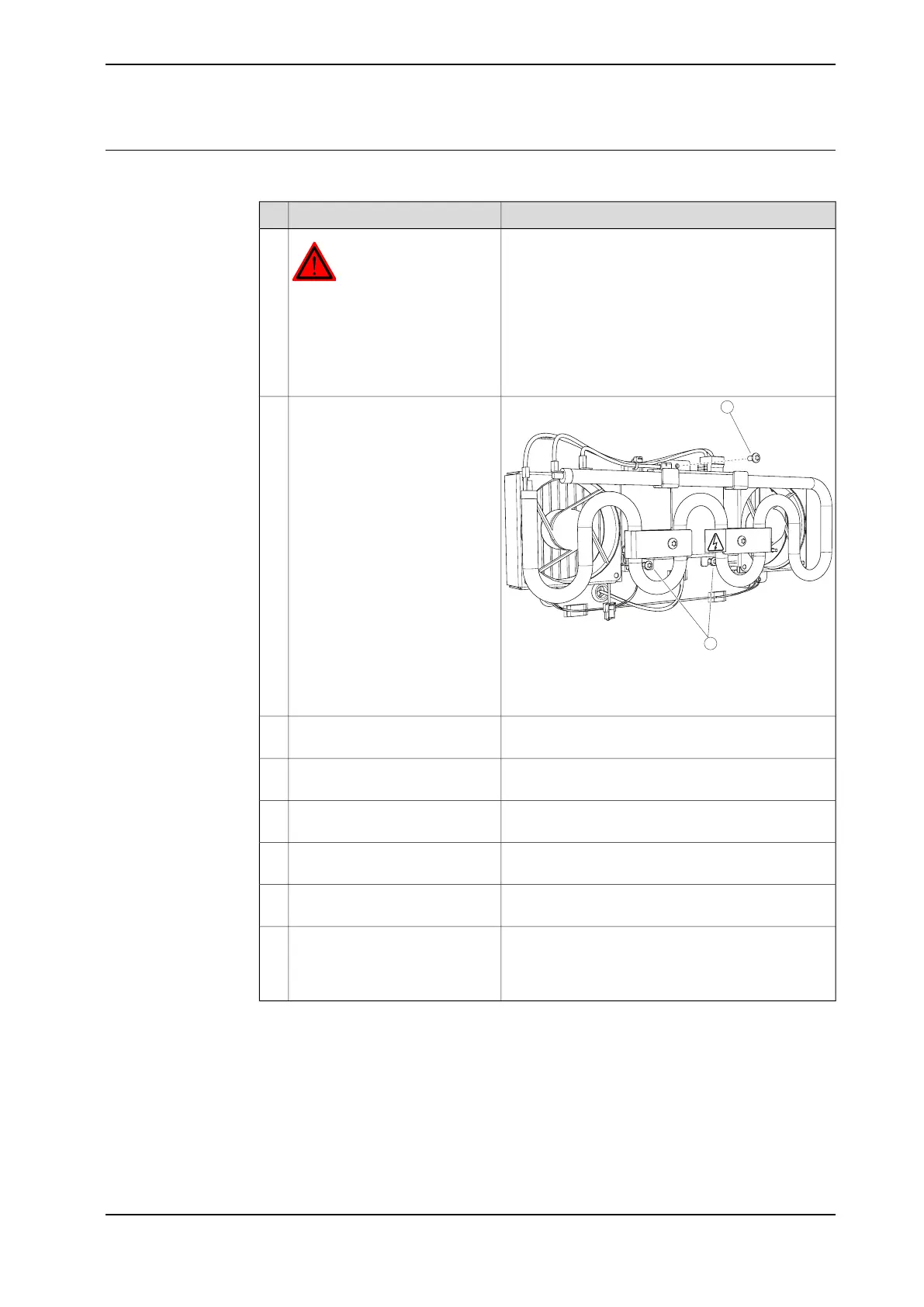

Refit the brake resistor bleeder
by sliding the recesses in be-
neath the lower attachment
screw heads, and push it inwards
and then downwards.
2
A Upper attachment screw
B Lower attachment screws
Refit the upper attachment
screw.
3
Tighten all the attachment screws
for the bleeder.
4
Reconnect the bleeder connect-
or.
5
Refit the fan cover, push it left
towards the grooves.
6
Refit the attachment screws for
the fan cover, and tighten them.
7
Perform the function tests in
section Function tests on
page 118 to verify that the safety
features work properly.
8
Product manual - IRC5 Compact 177
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.15 Replacement of brake resistor bleeder
Continued
