4.4 Replacement of backup energy bank
Location

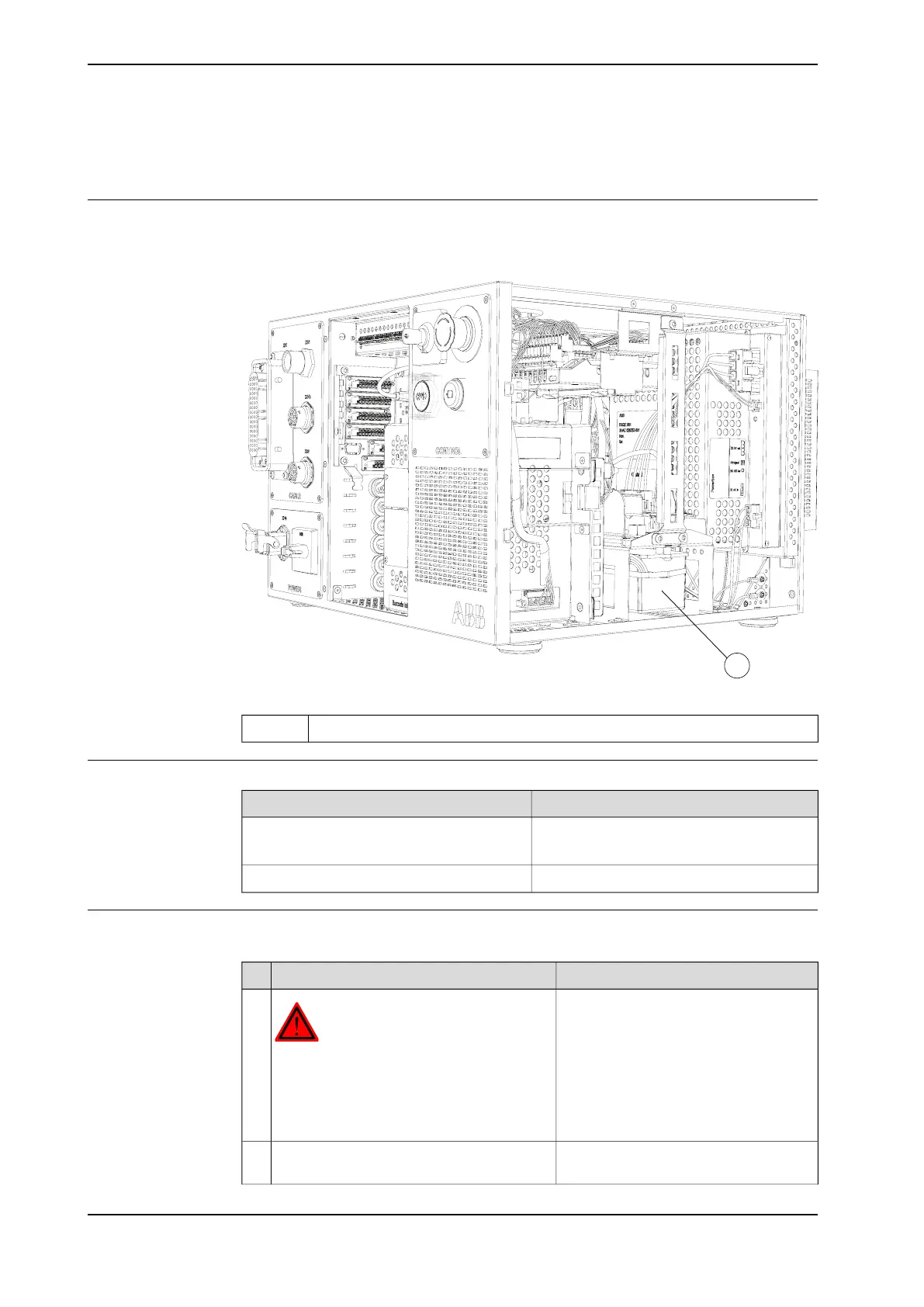

The following illustration shows the location of the backup energy bank in IRC5
Compact.
A
xx1400001383
Backup energy bankA
Required equipment
NoteEquipment
DSQC 655Backup energy bank
See Controller system parts on page 209.
See Circuit diagrams on page 217.Circuit diagram
Removal
The following procedure describes how to remove the backup energy bank.
Note/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety informa-
tion in section DANGER - Make sure that the
main power has been switched off! on
page 33.
1
See Opening the IRC5 Compact control-
ler on page 89.
Remove the cover of the cabinet.2
Continues on next page
134 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.4 Replacement of backup energy bank
