ABB IRC5 Compact User Manual

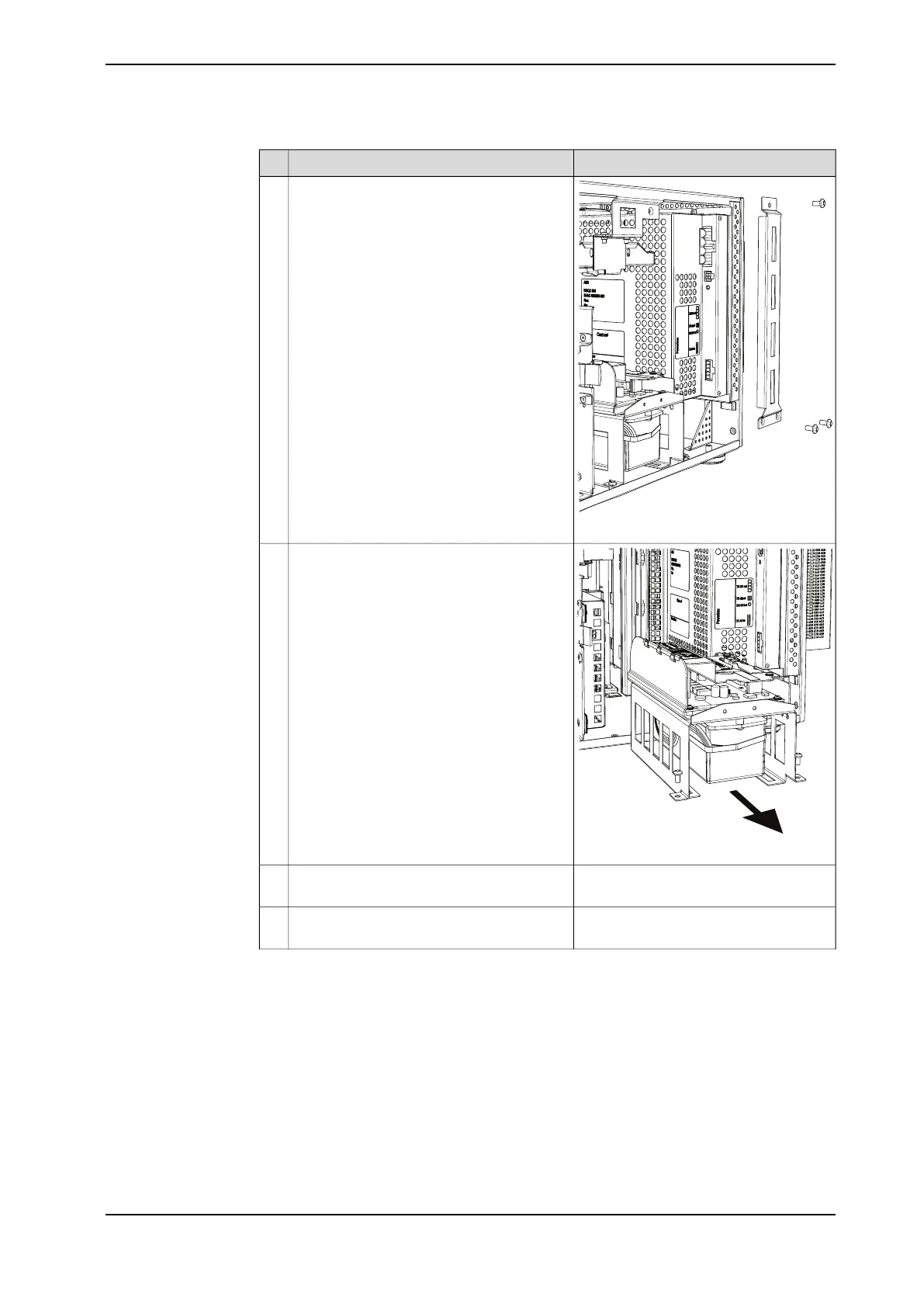

Note/illustrationAction
xx1400001384
Remove the three attachment screws, and
remove the support bar.
3
xx1400001385
Remove the two attachment screws, and pull
the backup energy bank unit slightly out.
4
Disconnect all connectors from the power
distribution unit.
5
Pull the backup energy bank unit out com-
pletely.
6
Continues on next page
Product manual - IRC5 Compact 135
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.4 Replacement of backup energy bank
Continued
