Note/illustrationAction

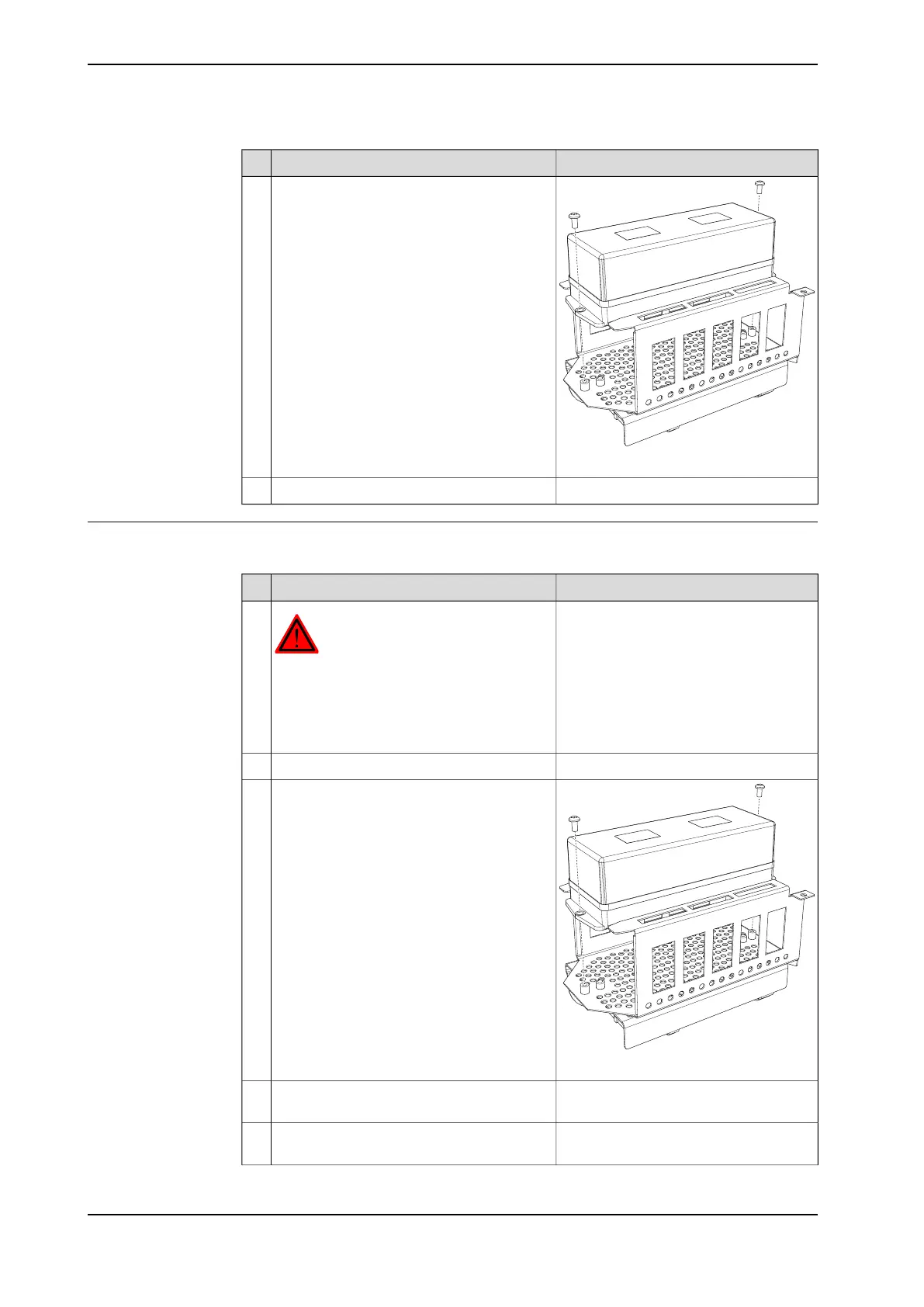

xx1400001386
Remove the two attachment screws.7
Remove backup energy bank.8
Refitting
The procedure below details how to refit the backup energy bank.
Note/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety informa-
tion in section DANGER - Make sure that the
main power has been switched off! on
page 33.
1
Refit the new backup energy bank.2
xx1400001386
Refit the attachment screws, and tighten
them.
3
Slide the backup energy bank unit half way
in.
4
Reconnect all the connectors to the power
distribution unit.
5
Continues on next page
136 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.4 Replacement of backup energy bank
Continued
