4.19 Replacement of power supply
4.19.1 Replacement of power distribution unit
Location

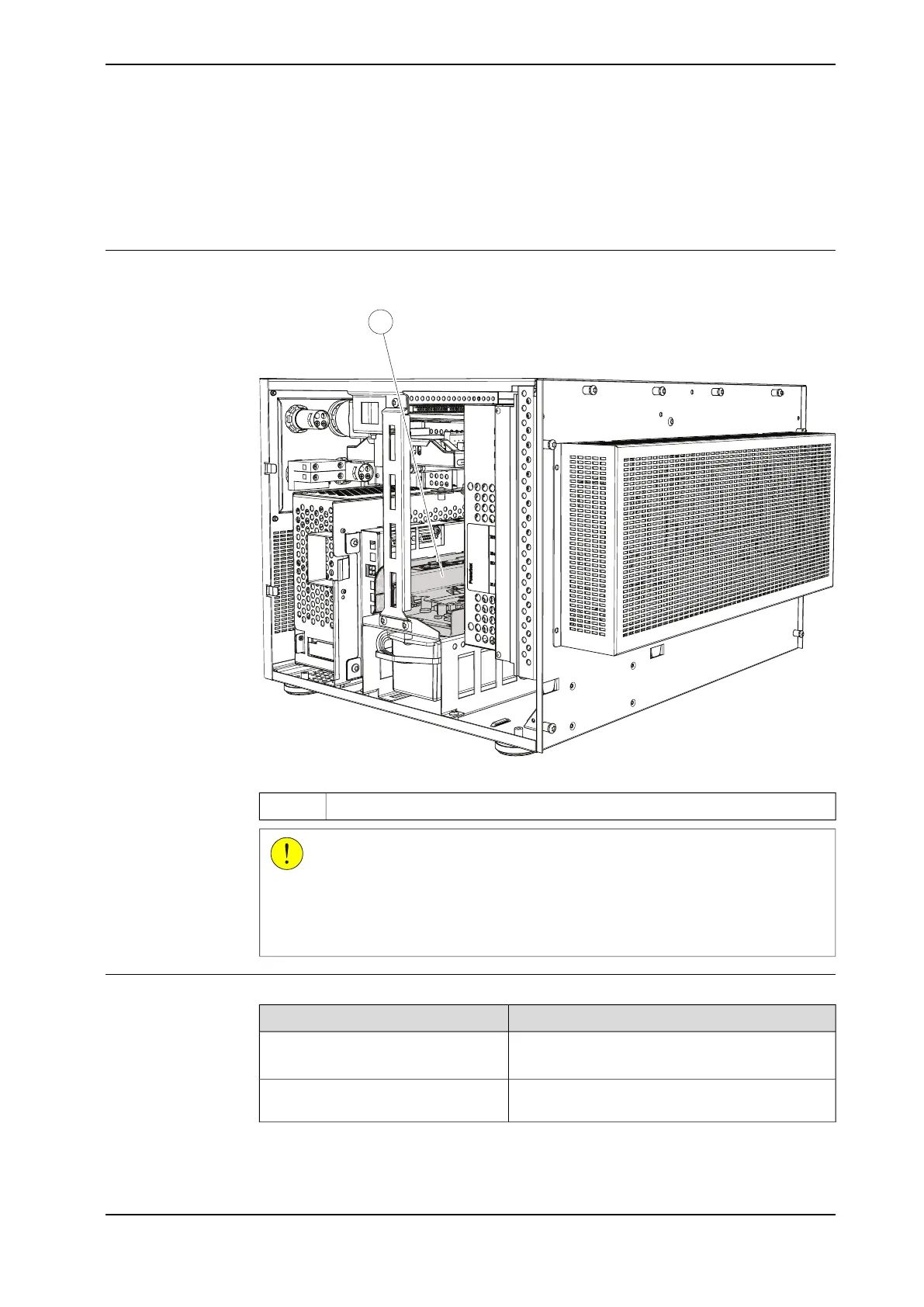

The location of the power distribution unit is shown by the following illustration.
A
xx1400001463
Power distribution unitA
CAUTION
Hot surface on top of the power distribution unit.
Risk of burns. Be careful when removing the unit.
Do not route or place cables on top of the power distribution unit.
Required equipment
NoteEquipment
DSQC 662Power distribution unit
See Controller system parts on page 209.
The content is described in section Standard toolkit,
IRC5 on page 207.
Standard toolkit
Continues on next page
Product manual - IRC5 Compact 187
3HAC047138-001 Revision: G
