NoteEquipment
Other tools and procedures may be
required. See references to these pro-
cedures in the step-by-step instructions
below.
See Circuit diagrams on page 217.Circuit diagram
Removal

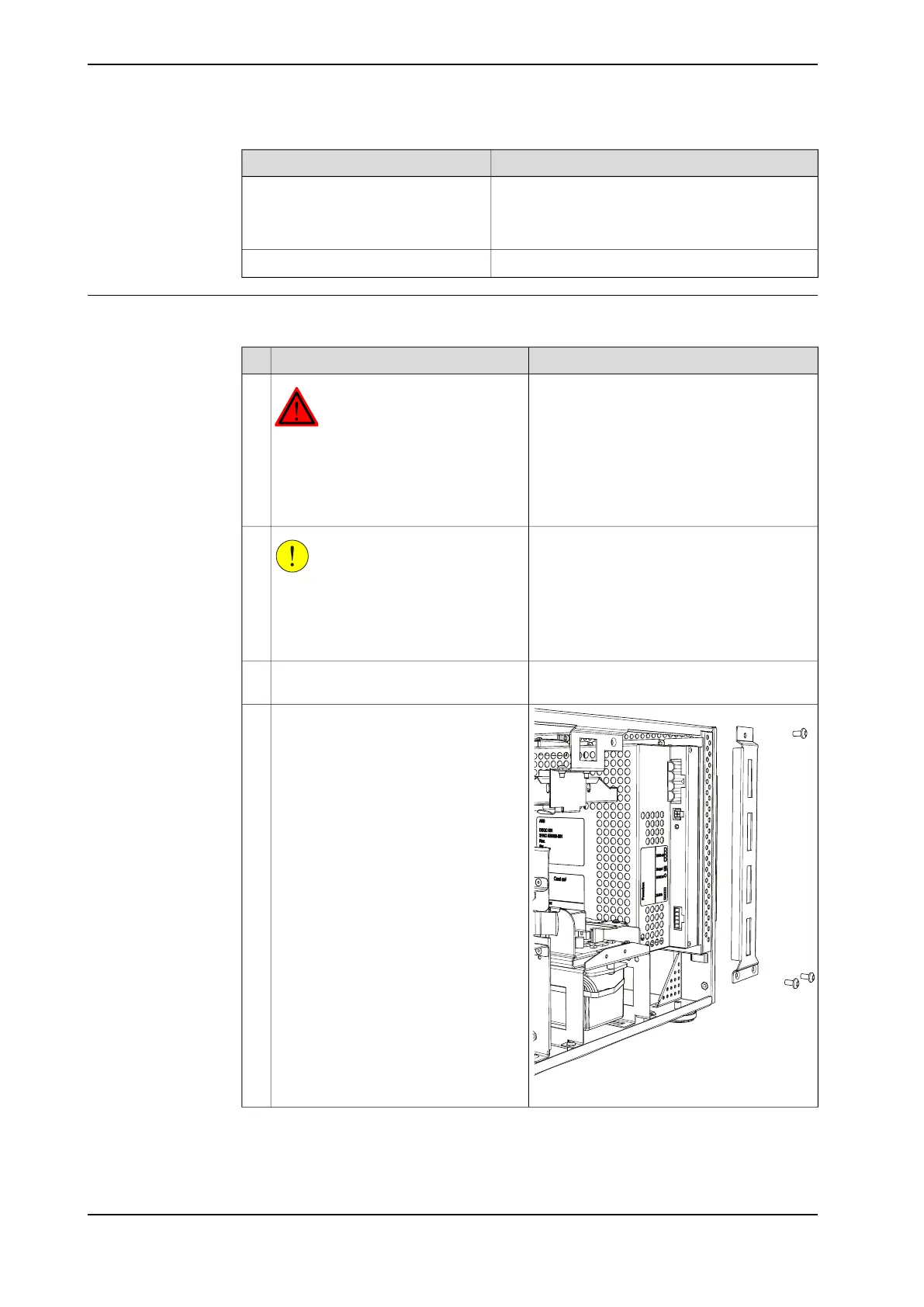

Use this procedure to remove the power distribution unit.
Note/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety in-
formation in section DANGER - Make
sure that the main power has been
switched off! on page 33.
1
CAUTION
Hot surface on top of the power distribu-
tion unit.
Risk of burns. Be careful when removing
the unit.
2
See Opening the IRC5 Compact controller on
page 89.
Remove the cover of the cabinet.3
xx1400001384
Remove the three attachment screws,
and remove the support bar.
4
Continues on next page
188 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.1 Replacement of power distribution unit
Continued
To Next Page
