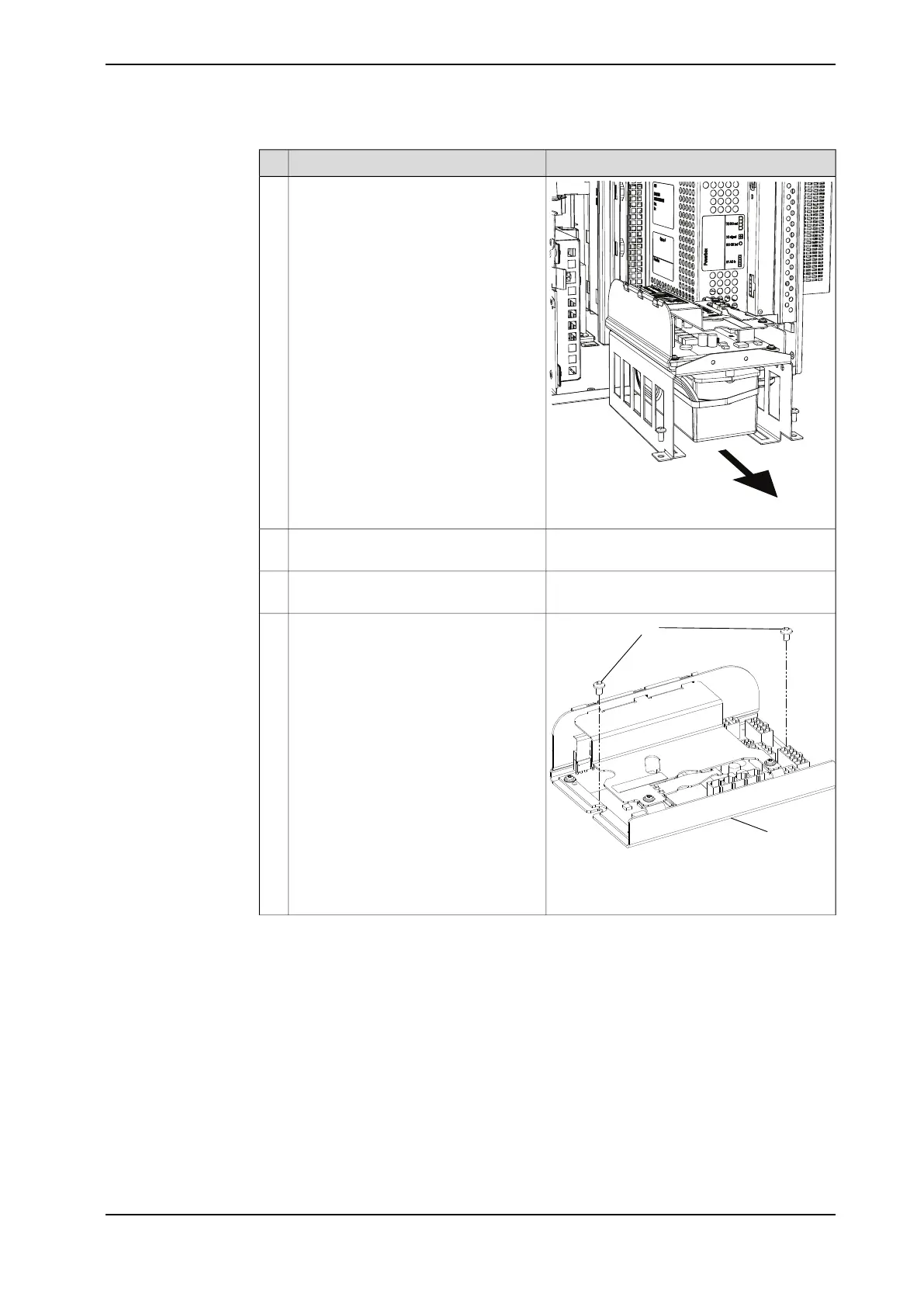

Note/illustrationAction
xx1400001385
Remove the two attachment screws, and
pull the backup energy bank unit slightly
out.
5
Disconnect all connectors from the
power distribution unit.
6
Pull the backup energy bank unit out
completely.
7
B
A
xx0900000549
Remove the attachment screws and lift
the board out.
8
• A: power distribution unit
• B: attachment screws
Continues on next page
Product manual - IRC5 Compact 189
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.1 Replacement of power distribution unit
Continued
