ABB IRC5 Compact

Note/illustrationAction

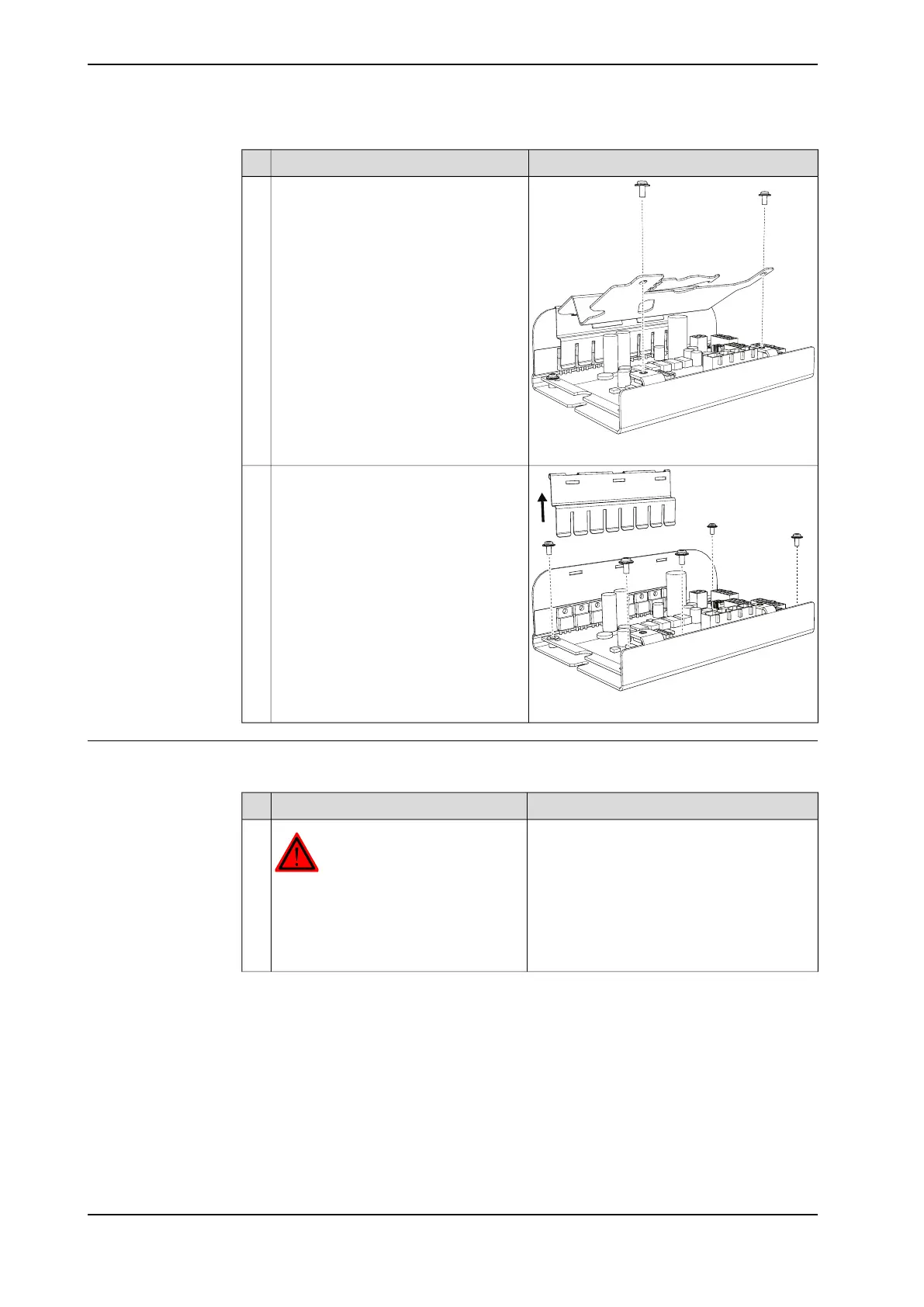

xx1400001464
Remove the two attachment screws and
cover plate.
9
xx1400001465
Remove the five attachment screws and
spring.
10
Refitting
Use this procedure to refit the power distribution unit.
Note/illustrationAction
DANGER
Before commencing any work inside the
cabinet, please observe the safety in-
formation in section DANGER - Make
sure that the main power has been
switched off! on page 33.
1
Continues on next page
190 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.1 Replacement of power distribution unit
Continued
