ABB IRC5 Compact User Manual

Note/illustrationAction
B
A
xx0900000549

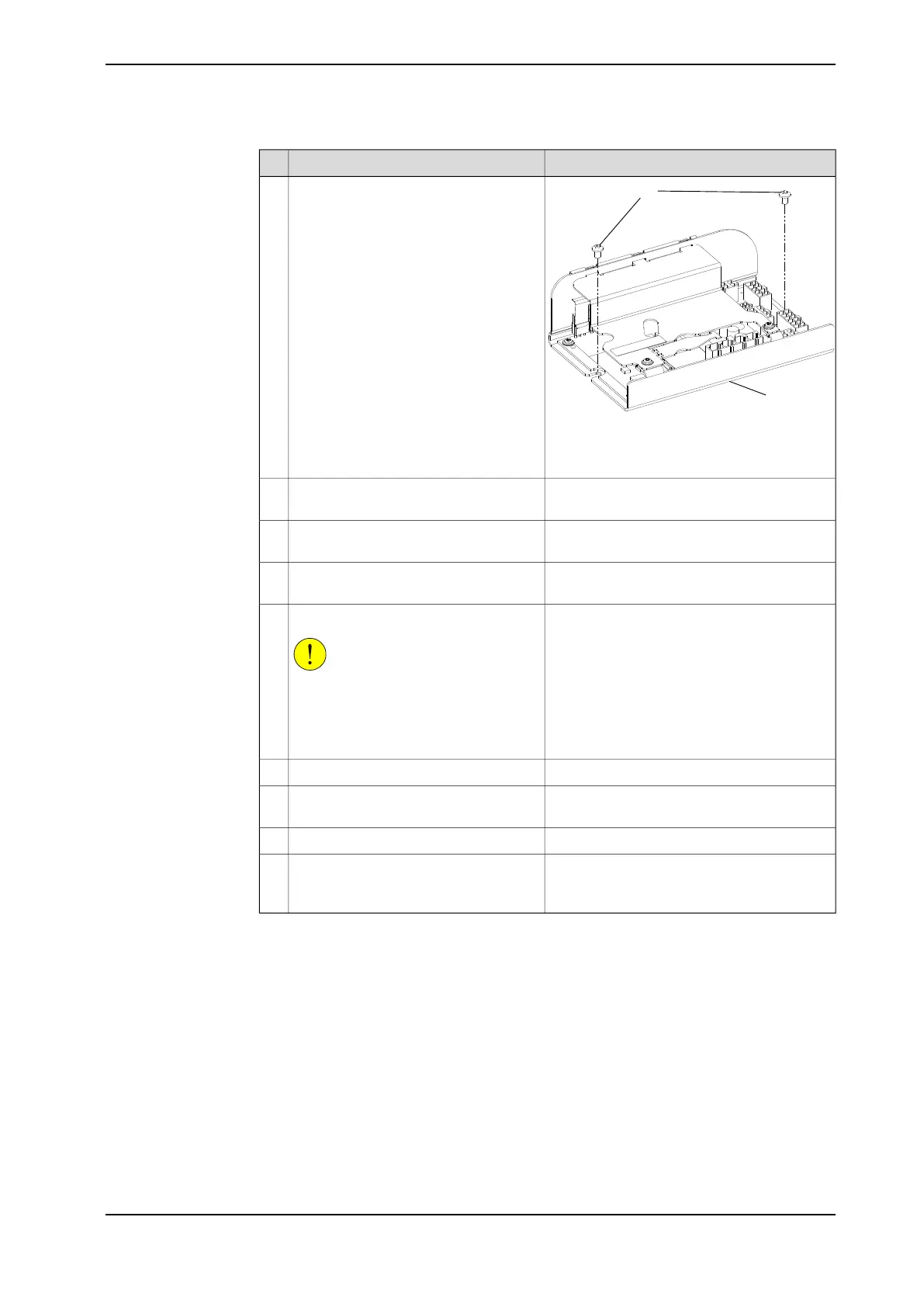

Put the new power distribution unit in
place and refit the attachment screws.
2
• A: power distribution unit
• B: attachment screws
Refit the spring and cover plate. Secure
with attachment screws.
3
Refit the power distribution unit and se-
cure with attachment screws.
4
Slide the backup energy bank unit half
way in.
5
Reconnect the connectors X1 - X9.
CAUTION
Hot surface on top of the power distribu-
tion unit.
Do not route or place cables on top of
the power distribution unit.
6
Refit the backup energy bank unit.7
Refit the support bar with the three at-
tachment screws.
8
Refit the cabinet cover.9
Perform the function tests in section
Function tests on page 118 to verify that
the safety features work properly.
10
Product manual - IRC5 Compact 191
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.19.1 Replacement of power distribution unit
Continued
