ABB IRC5 Compact

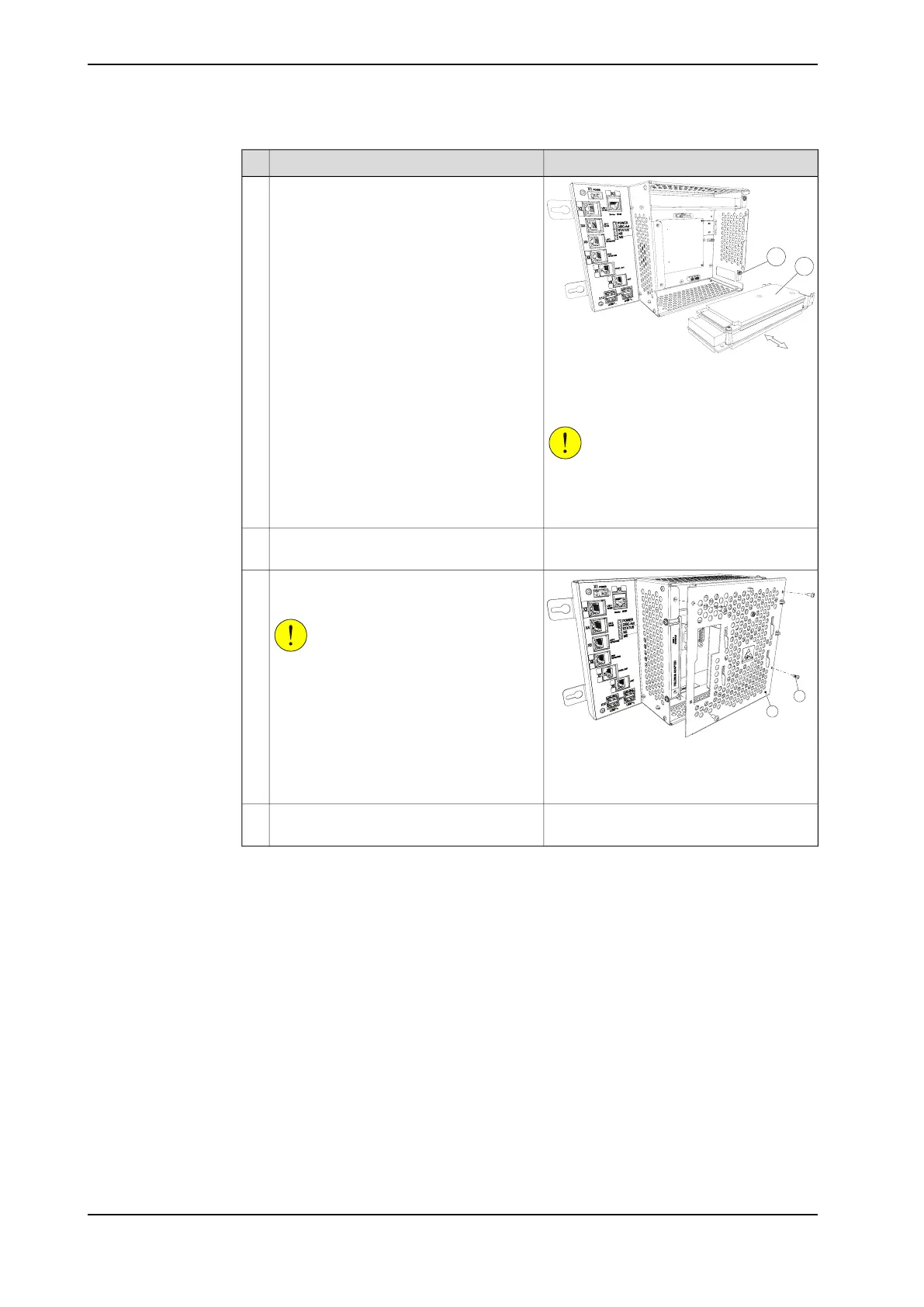

Note/IllustrationAction
A
B
xx1500001761
A Attachment screw
B Safety module
CAUTION
Always grip the board around the edges to
avoid damage to the board or its compon-
ents.
Fit the Safety module in position by push-
ing it into the socket on the motherboard.
7
Refit the attachment screw on top of the
Safety module bracket.
8
B
A
xx1300000684
A Attachment screws (4 pcs.)
B Cover
Refit the fan connector and close the com-
puter unit.
CAUTION
Be careful with the fan cable when closing
the cover. The fan cable must not be
squeezed.
9
Connect all cables according to the proced-
ures described below.
10
Continues on next page
106 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.11.3 Installing the Safety module DSQC1015 for SafeMove
Continued
