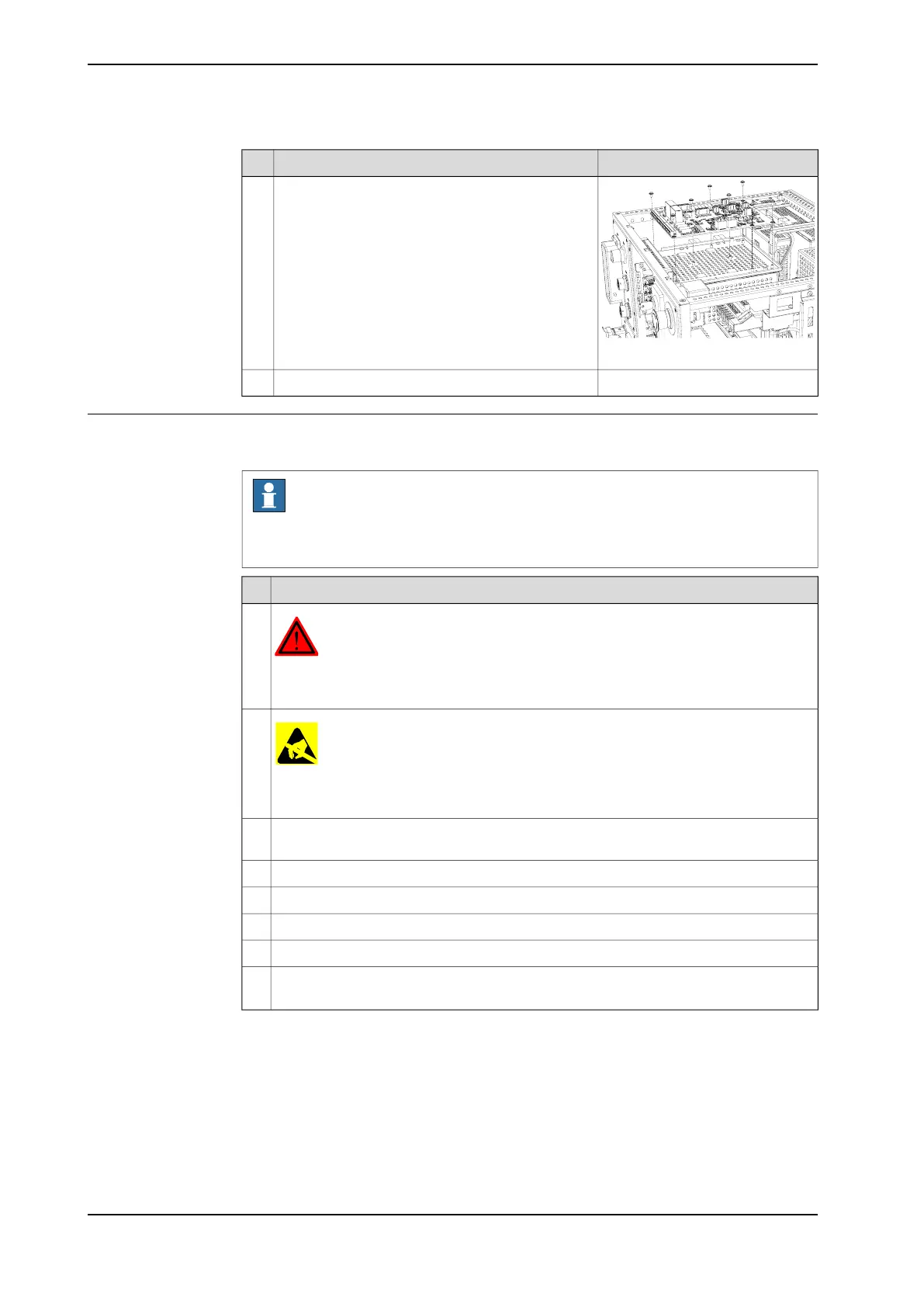

ABB IRC5 Compact

Note/illustrationAction
xx1400001380
Remove the eight attachment screws.8
Gently lift the safety board out.9
Refitting
Use the following procedure to refit the safety board.
Note
Always grip the board around the edges to avoid damage to the board or its
components.
Action
DANGER
Before commencing any work inside the cabinet, please observe the safety information
in section DANGER - Make sure that the main power has been switched off! on page 33.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the unit please observe the safety inform-
ation in section WARNING - The unit is sensitive to ESD! on page 34
2
Gently lift the safety board out of the ESD safe bag and fit it into position on the safety
board plate.
3
Secure the safety board with its attachment screws.4
Refit the safety board unit protection cover.5
Reconnect all connectors.6
Refit the cabinet cover.7
Perform the function tests in section Function tests on page 118 to verify that the safety
features work properly.
8
130 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.2 Replacement of safety board
Continued
