ABB IRC5 Compact

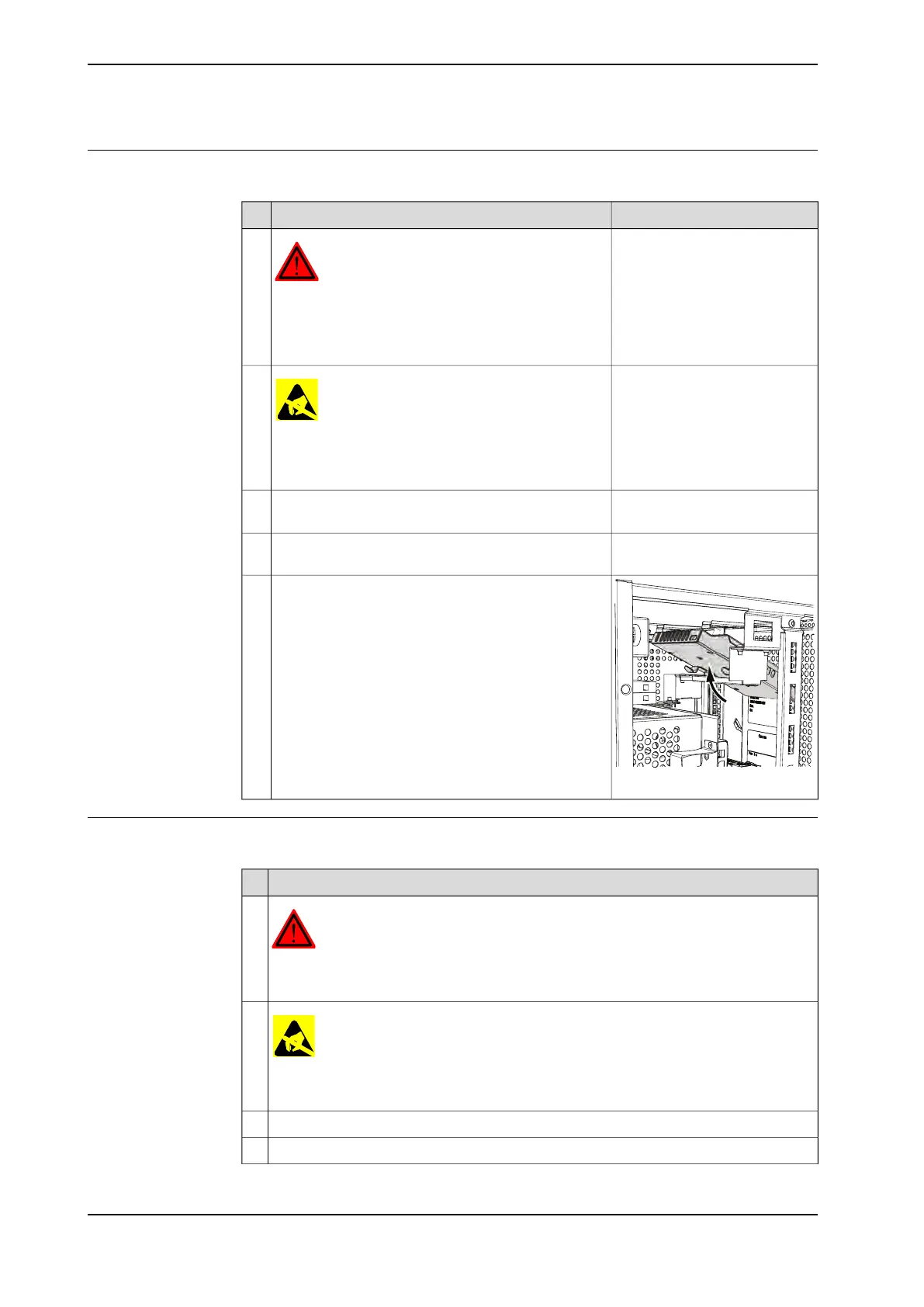

Removal
The procedure below details how to remove the I/O units or Gateways.
Note/IllustrationAction
DANGER
Before commencing any work inside the cabinet,
please observe the safety information in section
DANGER - Make sure that the main power has been
switched off! on page 33.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the unit
please observe the safety information in section
WARNING - The unit is sensitive to ESD! on page 34
2
See Opening the IRC5 Compact
controller on page 89.
Remove the cover of the cabinet.3
Note which connector goes
where, to facilitate reassembly.
Disconnect the connectors from the unit.4
xx1400001382
Tip the unit away from the mounting rail and remove
it.
5
Refitting
The procedure below describes how to refit the I/O unit.
Action
DANGER
Before commencing any work inside the cabinet, please observe the safety information
in section DANGER - Make sure that the main power has been switched off! on page 33.
1
ELECTROSTATIC DISCHARGE (ESD)
The unit is sensitive to ESD. Before handling the unit please observe the safety inform-
ation in section WARNING - The unit is sensitive to ESD! on page 34
2
Hook the unit back onto the mounting rail and snap it gently in position.3
Reconnect all connectors disconnected during removal.4
Continues on next page
132 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
4 Repair
4.3 Replacement of I/O unit
Continued
