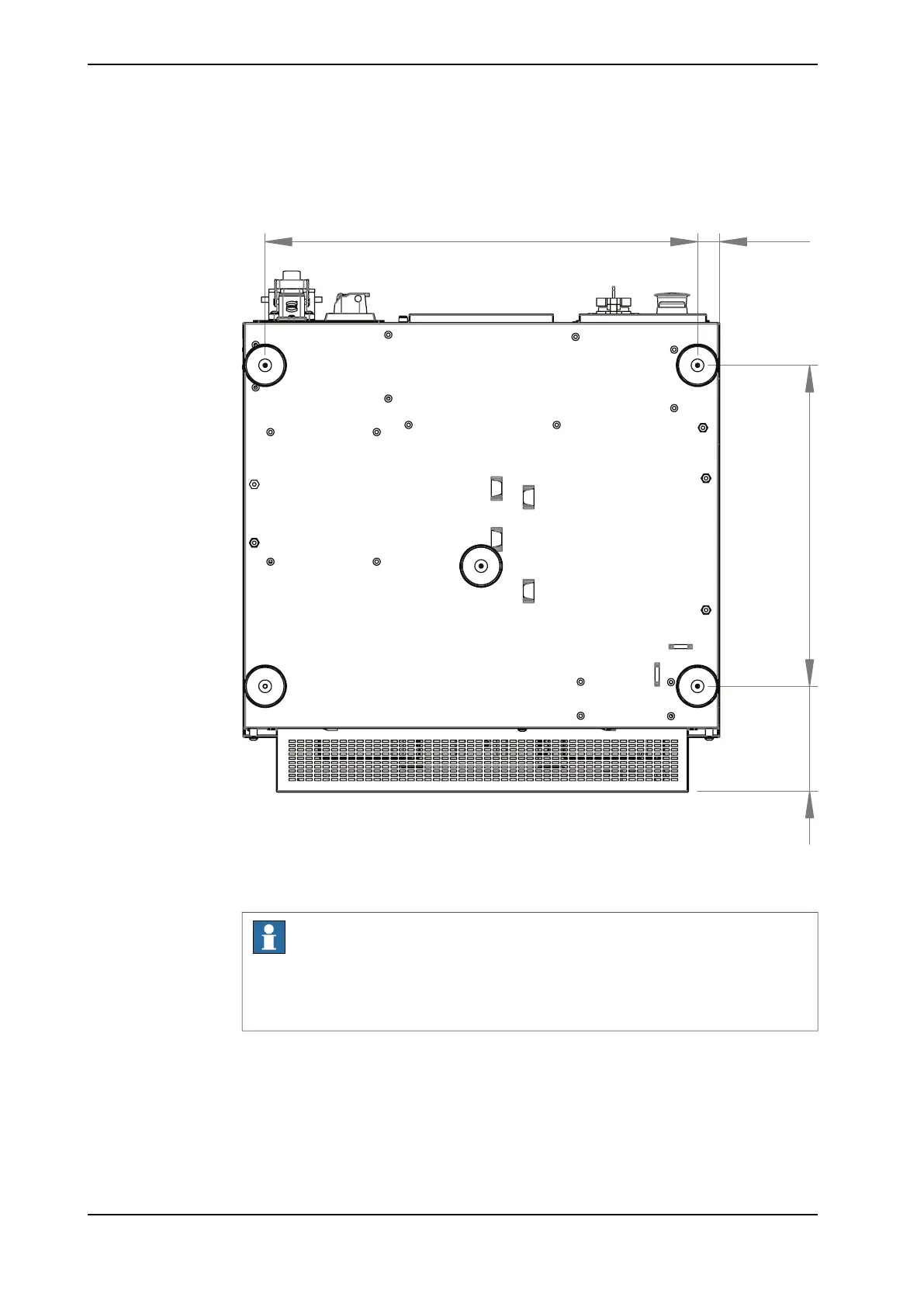

The following illustration shows the dimension of the footprint of the IRC5 Compact
controller.
407 21
30298,8
xx1400001366
• The feet should only be used for positioning, not for mounting or fastening.
Note
If the IRC5 Compact controller is to be installed in a rack, it must be fastened in
a way that prevents distortion of the controller cabinet. Preferably with angle
bars along the entire side edges of the controller cabinet.
48 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
