This connector is internally connected with I/O unit (DSQC 652) and power
distribution unit.
It contains the following signals:
• 24V power supply
Note
Total customer usage for 24V power supply from XS16 must not exceed 6A.
For connection details, see circuit diagram for IRC5 Compact controller.
Note
Power male connector are delivered with Compact controller. The power
connector is included in the same cable as DeviceNet connector
(3HAC054250-001). The bridge connector is a part of the cable 3HAC049564-001.
XS17 DeviceNet

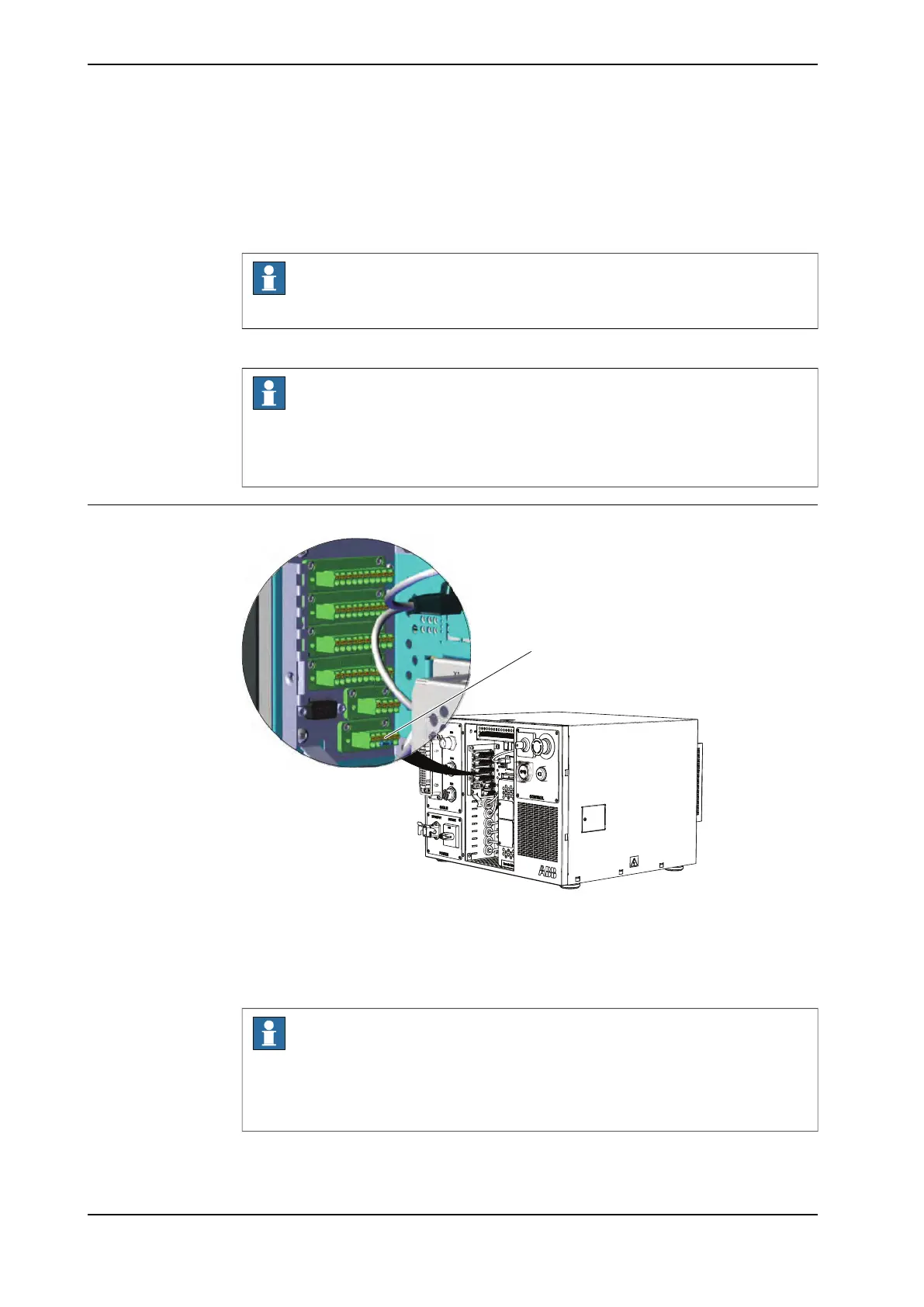

xx1500002929
This connector is internally connected with DeviceNet - master bus.
It contains a DeviceNet signal.
For connection details, see circuit diagram for IRC5 Compact controller.
Note
DeviceNet male connectors are delivered with Compact controller. The DeviceNet
connector is included in the same cable as power connector (3HAC054250-001).
The bridge connector is a part of the cable 3HAC049564-001.
Continues on next page
78 Product manual - IRC5 Compact
3HAC047138-001 Revision: G
© Copyright 2009-2017 ABB. All rights reserved.
2 Installation and commissioning
2.6.7 Descriptions for connectors XS7 - XS17
Continued
