Expansion board for fieldbus adapters
An expansion board needs to be installed to be able to fit a fieldbus adapter. On
top of the main computer unit, there is one slot available for installing the expansion
board.
The expansion board is also equipped with a serial channel. For more information
on how to connect to the serial channel, see Connecting a serial channel to the
controller on page 61.
A
xx1300000605

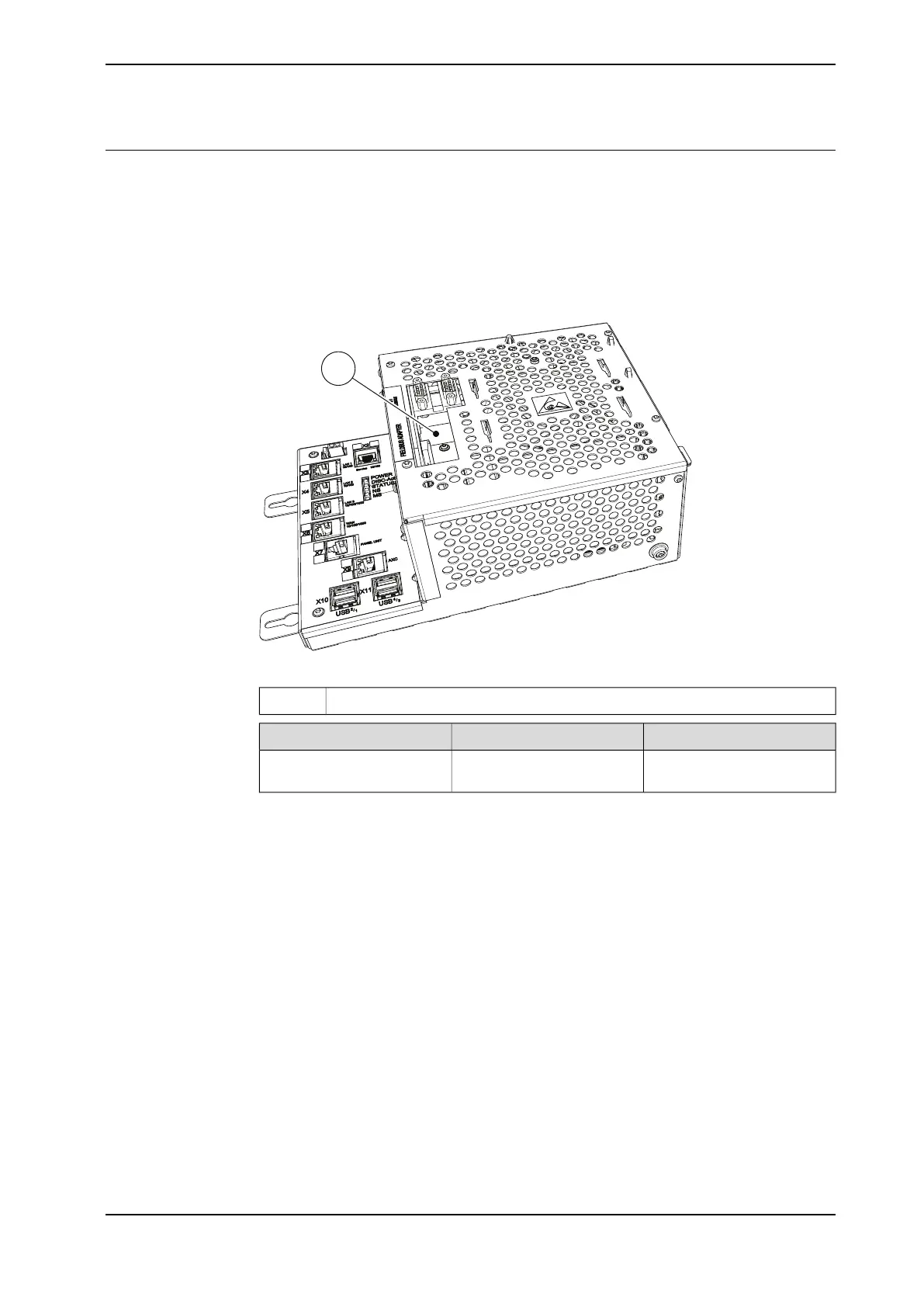

Assembled expansion board for fieldbus adapters, without adapter.A
Type designationArt. no.Description
DSQC10033HAC046408-001AnybusCC / RS232 expansion
board
