Operation Manual / Power2 800-M / 4 Product description
1
Introduction
Page 6 /
59
© Copyright 2016 ABB. All rights reserved.
HZTL4061_EN
Revision A
September 2016
1.3 Layout and function of the high-pressure stage

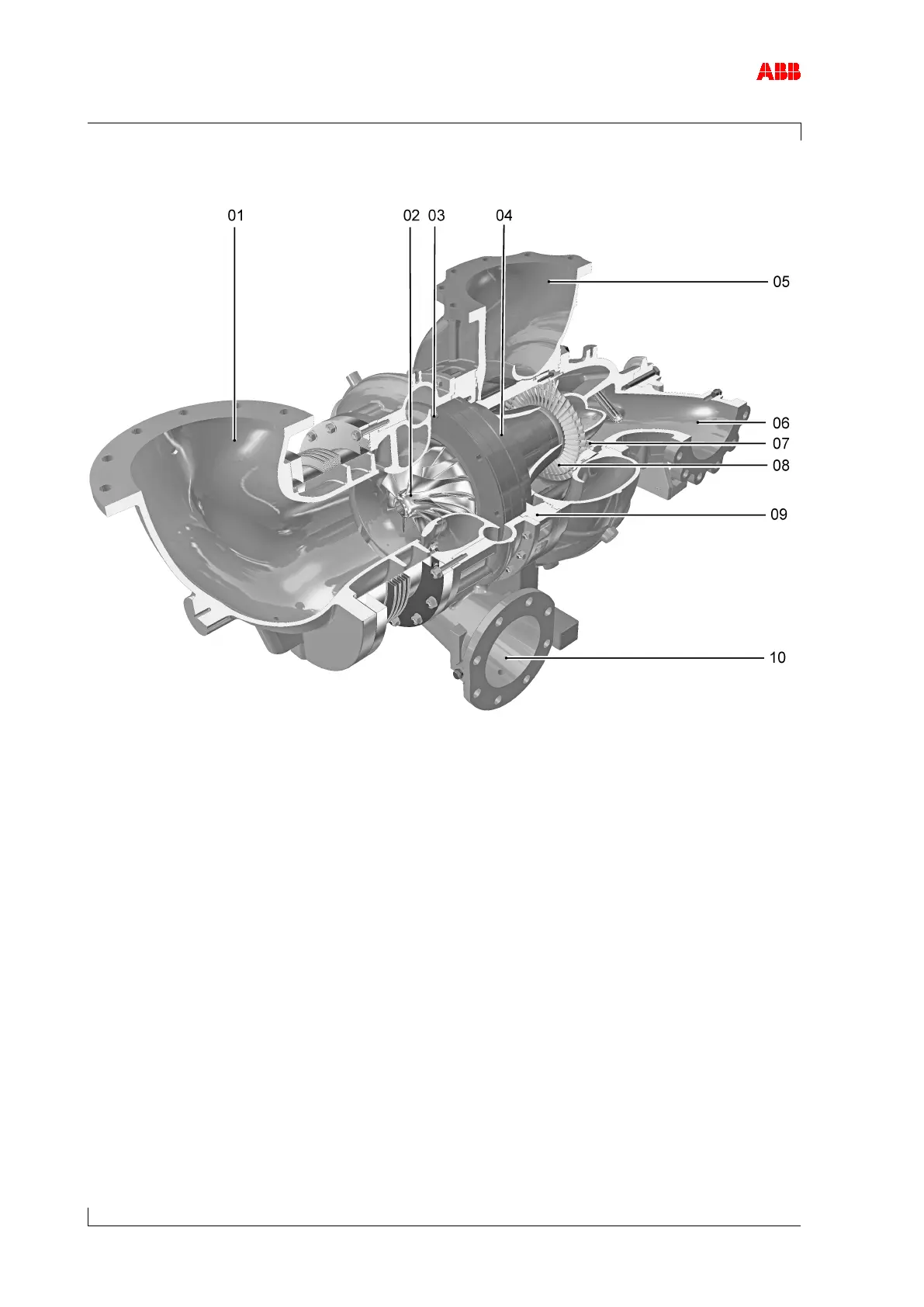

Figure 4: Layout and function of the high-pressure stage
01 Air suction branch 06 Gas inlet casing
02 Compressor wheel 07 Nozzle ring
03 Diffuser 08 Turbine
04 Bearing bush with hood diffuser 09 Bearing casing
05 Gas outlet casing 10 Compressor casing
