1.4 Warning plates on the low-pressure and high-pressure
stage
Warning plates are affixed at the following locations of the high and low-pressure stage:

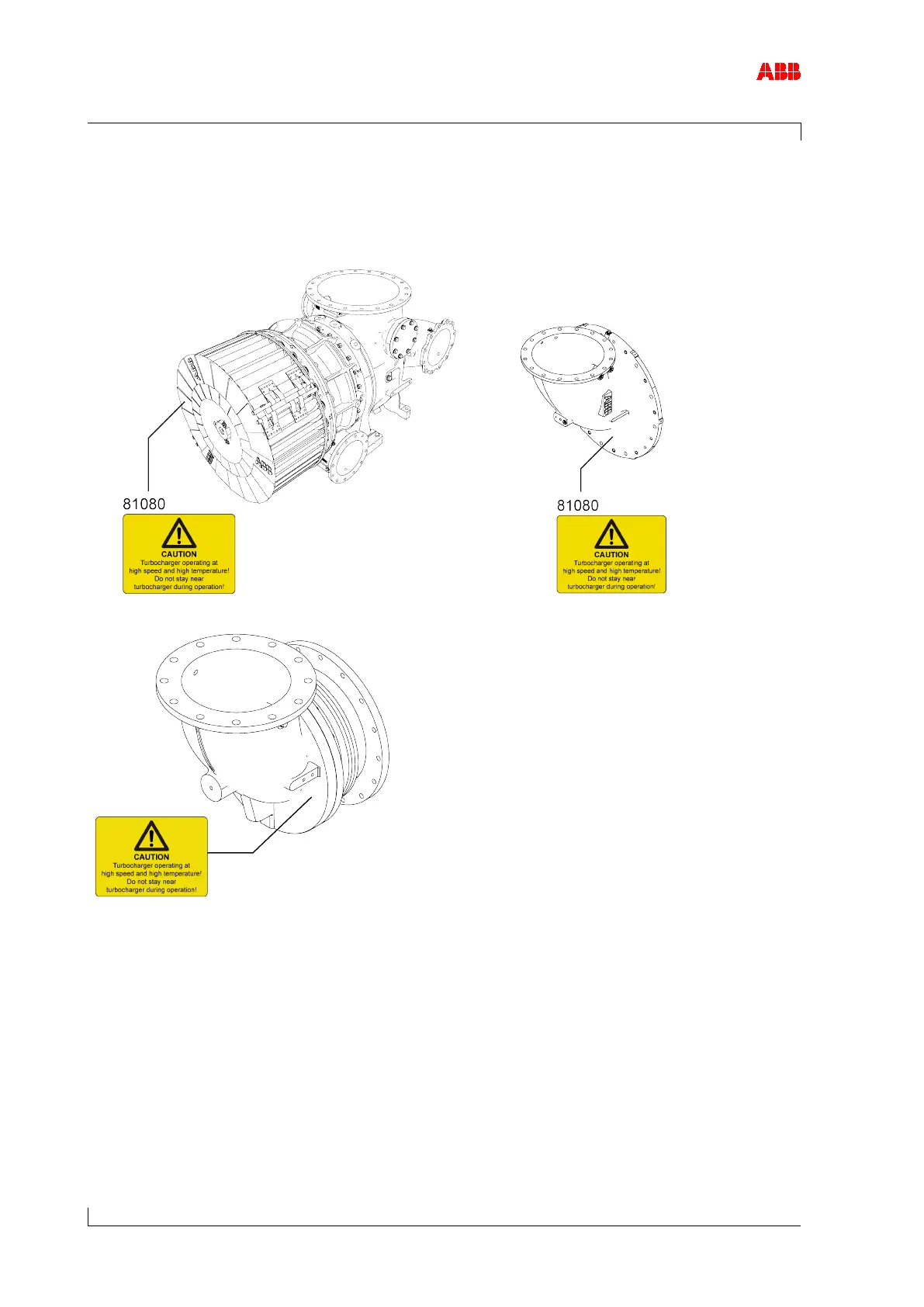

Figure 6: Locations of Power2 LP warning plates
Figure 7: Locations of Power2 HP warning plates
If warning plates are not present in the designated locations or not readable, proceed as follows:
 Order new warning plates from ABB Turbocharging Service Stations.
 Remove any warning plates that have become unreadable.
 Clean and degrease the areas designated for the warning plates.
 Fit new warning plates and remove protective sheets.
Non-insulated high and low-pressure stages
High and low-pressure stages supplied to the enginebuilder without insulation must be
equipped later with warning plates to be attached to the insulation. This is the responsibility of
the enginebuilder.
