1.5 Locations of the rating plates
Low-pressure stage

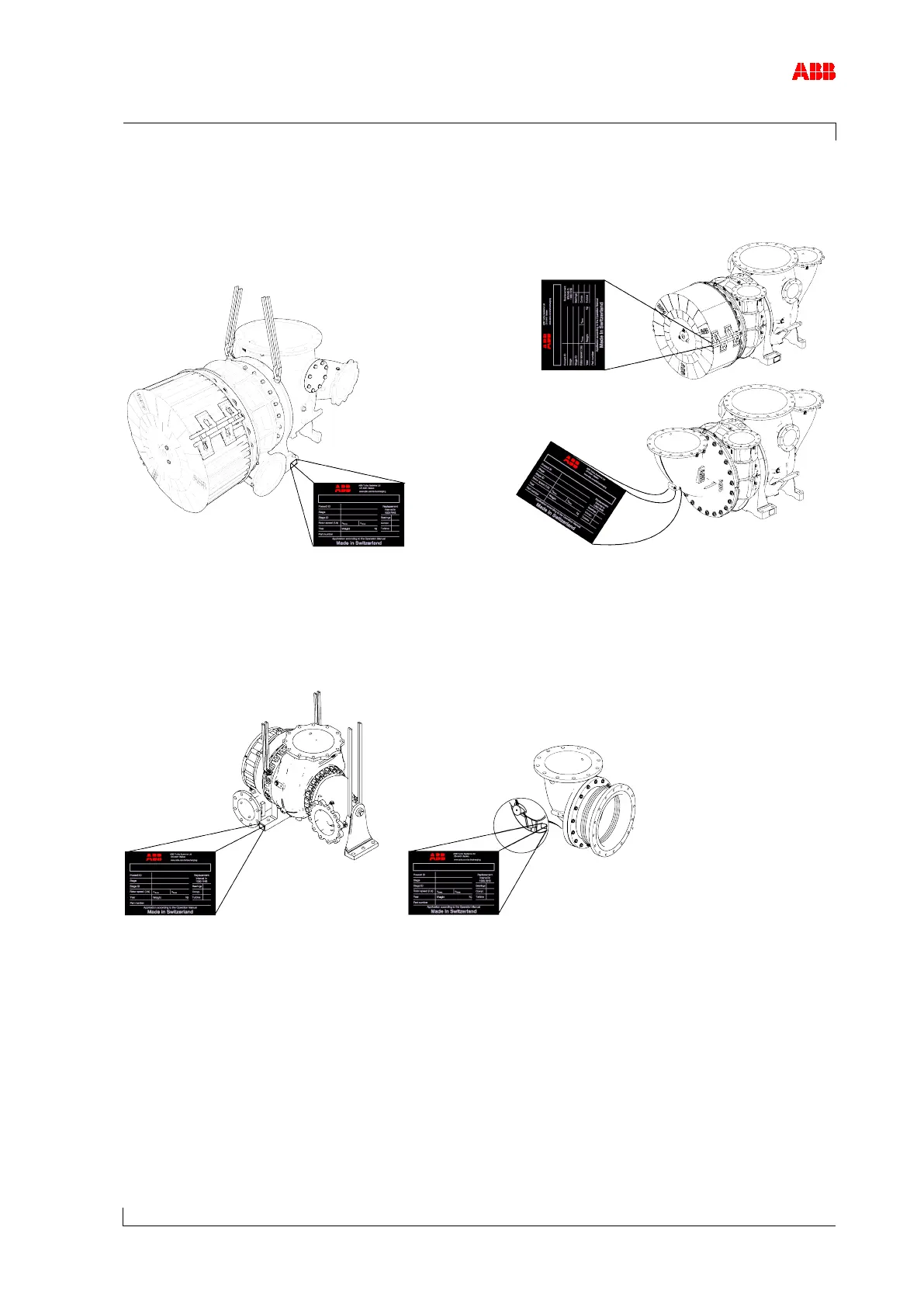

Figure 8: Location of Power2 LP rating plate
One rating plate each is attached on the left and the right side of the foot (bearing casing) and
to the filter silencer and air suction branch of the low-pressure stage.
High-pressure stage
Figure 9: Location of Power2 HP rating plate
One rating plate each is attached on the left and the right side of the foot (bearing casing) and
to the air suction branch of the high-pressure stage.
