6.4 Cleaning the filter silencer

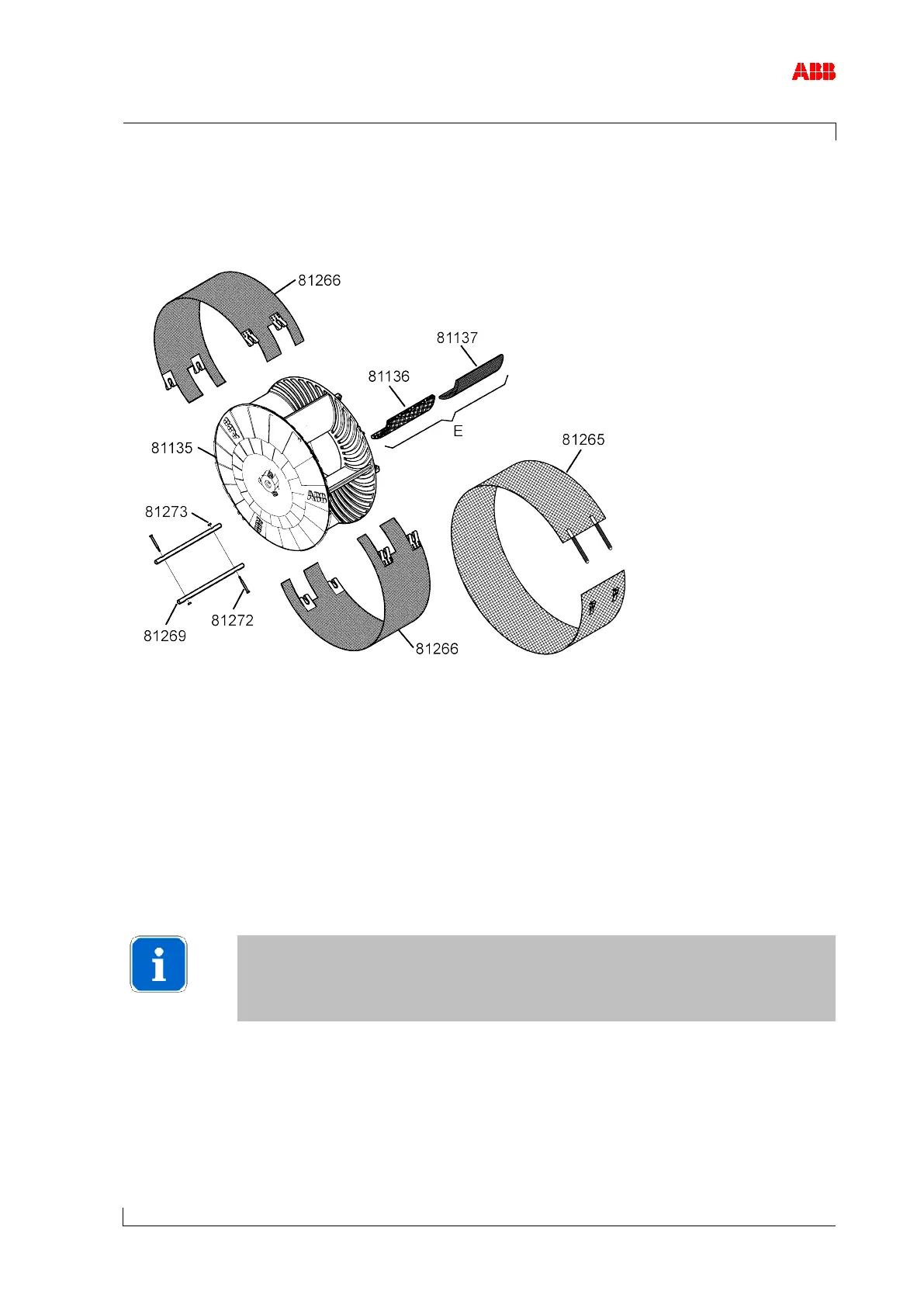

Figure 13: Cleaning the filter silencer
81135
Filter silencer body
81266
Cover grid
81136
Absorption segment
81269
Connecting rods
81137
Sheet-metal covering
81272
Screw
81265
Filter ring (if present)
81273
Lock nut
E
Insert unit = absorption segment + sheet-
metal covering
NOTICE
Disassembly and assembly
The disassembly and assembly of the filter silencer is described in chapter
Disassembly and assembly.
Cleaning the filter ring (if present)
 Remove filter ring (81265).
 Clean filter ring (81265) as required or every 500 hours of operation and replace after the
fifth cleaning process at the latest.
Contamination of the filter ring depends on the degree of purity of the sucked-in air.
