ABB PVS-100 User Manual

- 15 -
000823BG
2 - Characteristics

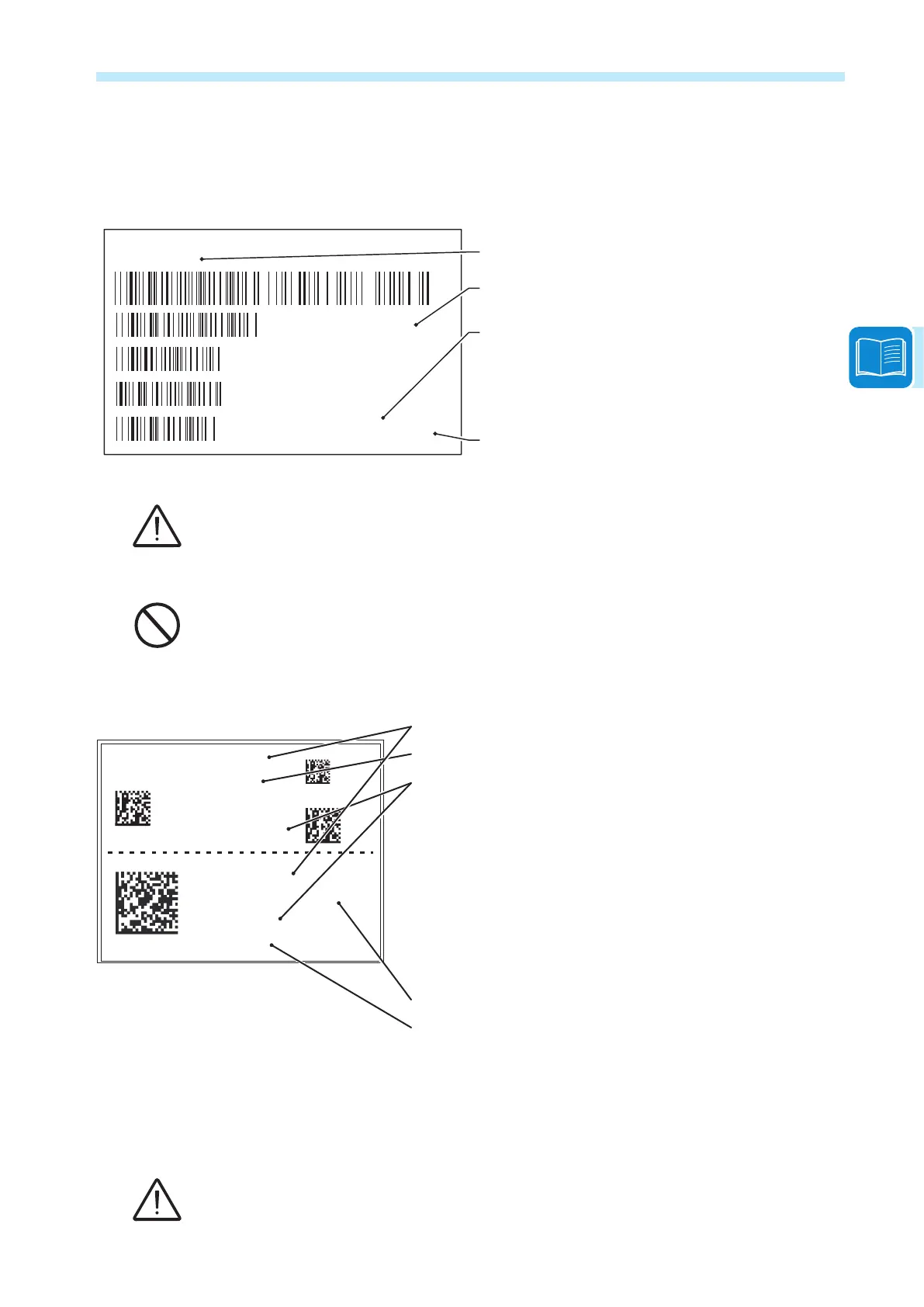

In addition to the label showing the inverter data, there are also additional
identication labels for the power module and the wiring box.
The labels displays the following information:
The ofcially required information is located on the regulatory label. The identication label
is an accessory label which shows the information necessary for the identication and cha-
racterisation of the inverter by ABB. In case you need to communicate with ABB about the
inverter, the information from identication label are mandatory.
The labels are NOT to be hidden by foreign objects and parts (rags, boxes, equipment, etc.);
they must be regularly cleaned and always kept in sight.
An additional Communication Identication label is applied on the wiring
box. The label displays the following information:
The Communication Identication label is divided in two separate parts by a dashed line; take
the bottom part and apply it on the plant documentation. (ABB recommend to create a plant
map and apply the Communication Identication label on it).
• Power module or wiring box model
• Power module or wiring box Part Number
• Power module/wiring box Serial Number
- YY = Year of manufacture
- WW = Week of manufacture
- SSSSSS = sequential number
• Week/Year of manufacture
MODEL NAME
P/N:PPPPPPPPPPP
WO:XXXXXXX
SO:SXXXXXXXX Q1
SN:YYWWSSSSSS WK:WWYY
SN WLAN: SSSSSSSSSS
PN WLAN: .V2PVKA 53.1
Mac Address:
AA:BB:CC:DD:EE:FF
PK: 0000-0000-0000-0000
SN WLAN: SSSSSSSSSS
SN Inverter: ZZZZZZZZZZ
Remove and apply on the plant documentation
Mac Address:
AA:BB:CC:DD:EE:FF
• WLAN board Serial Number
• WLAN board Part Number
• Inverter Serial Number
• MAC address:
- To be used to obtain the SSID of the wireless access point
created by the inverter: ABB-XX-XX-XX-XX-XX-XX
(where “X” is a hex digit of the MAC address).
- To be used to obtain the “Host Name”:
http://ABB-XX-XX-XX-XX-XX-XX.local
(where “X” is a hex digit of the MAC address).
- MAC address it’s the only required information to register the
inverter with Aurora Vision.
• Product Key:
To be used as wireless access point password, or to be used to
access to the Web UI as username and password in case of lost
credentials, and to commission inverter using ABB Installer for
Solar Inverters.

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
