000823BG
2 - Characteristics
Identification of the equipment and manufacturer
The technical data provided in this manual does not substitute the data
supplied on the labels afxed to the equipment.
The labels afxed to the equipment must NOT be removed, damaged, stained, hidden, etc.,
for any reason whatsoever.

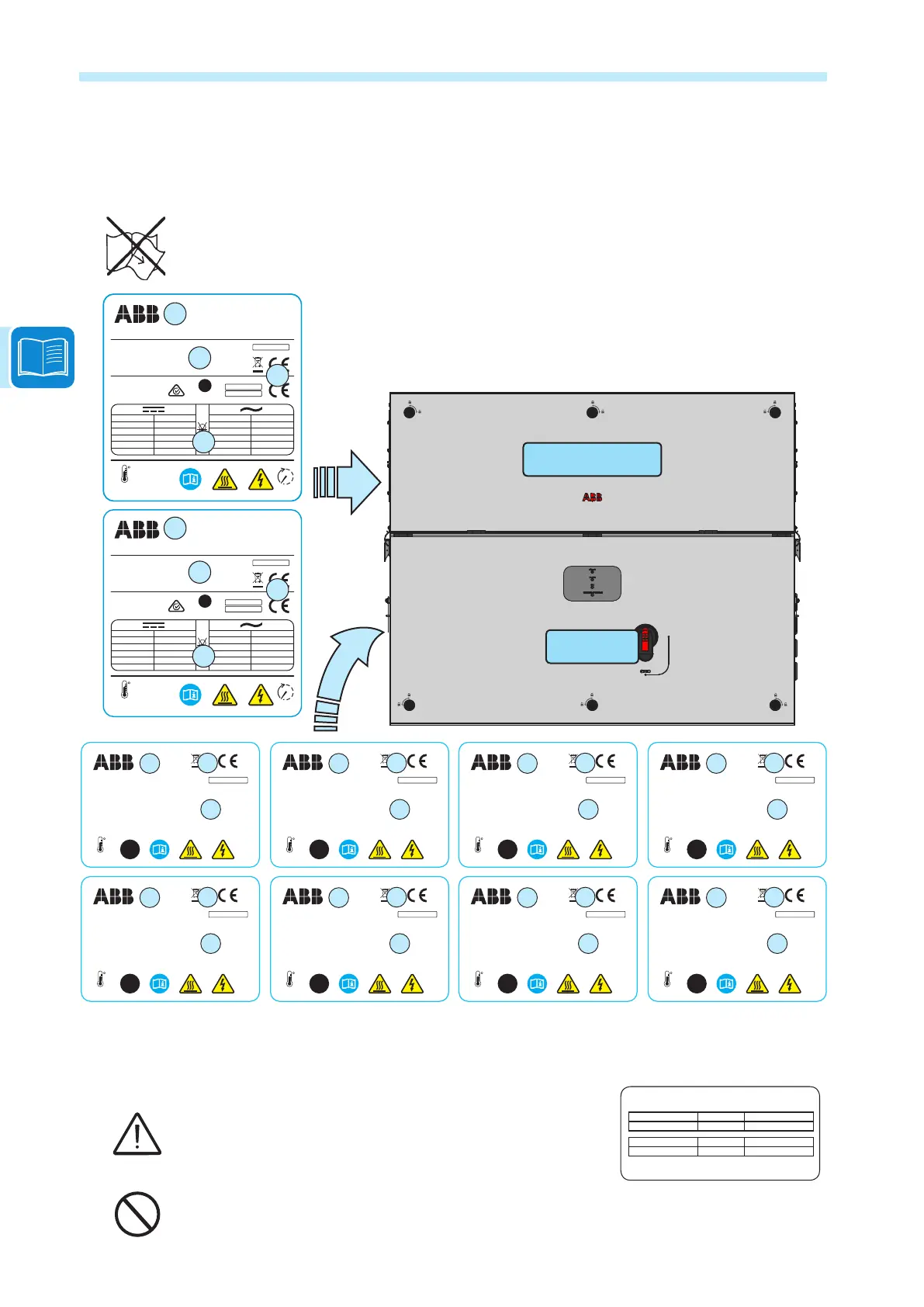

The regulatory label contains the following information:
1. Manufacturer 3. Rating data
2. Model 4. Certication marks
For connection to the network in South Africa.
According to NRS097-2-1 requirements, at the end of installa-
tion it is mandatory to apply the label at the left (supplied with
the inverter) near the power module regulatory label.
A4 1:1 1/1
South Africa network standard label for
PVS-120-TL (SIRIUS)
LABEL MATERIAL: 3M type 7331 (UL R/C, PGJI2)
INKS: Refer to UL File MH16411
LABEL CONTENT: Fixed as shown in the picture
SIZE: 45 mm (height) x 90 mm (width)
A.Statuti
G.Iannuzzi
S.Soldani
S.Bindi
WARNING!
NRS 097-2-1:2017 (South Africa)
09/04/2018
09/04/2018
09/04/2018
09/04/2018
XLP.V2Q10.0AL
AA
It is not intended to connect this Inverter to a network with an higher
Network Impedance.
Reference Impedance
Fault Level
0.156
1475
Total [ Ω ]
I_SC [ A ]
3.9
1018
X/R ratio
S_SC [kVA] (three phase)
All
material
used
and finished product, must meet the requirements of the current RoHS
recti
i
ve 2002/95/EC.
Title
Issued
Modified
D
D
esign approved
Elec. Eng. approved
Mfg. approved
Size Scale Dim. in mm Sheet Drawing No. Revision
© Copyright 2018 Power-One Italy Spa. All rights reserved. Reproduction, use or disclosure to third parties without express written authority is strictly forbidden.
Note: The labels are NOT to be hidden by foreign objects and parts (rags, boxes, equipment,
etc.); they must be regularly cleaned and always kept in sight.
PVS-120
