5 - Installation
Installations of IP66 protection covers for wiring box openings
(long term installation)
Never leave the power module or the wiring box disassembled on the eld. In case is neces-
sary to install the wiring box only, a IP66 protection covers for wiring box openings (long term
installation) kit is available as accessory options.

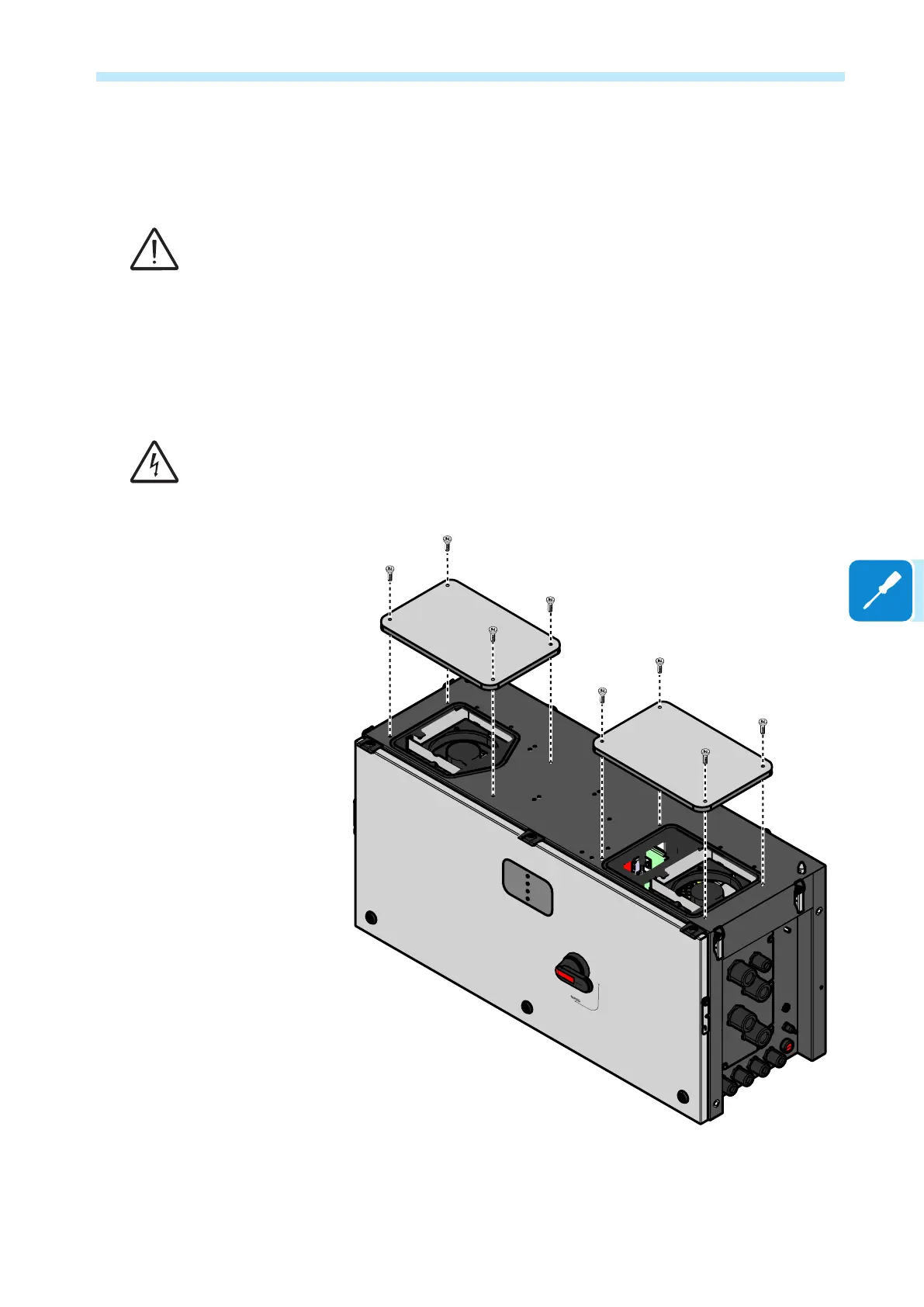

To install the protection covers place them over the wiring box openings
and x it using the 8 x M5 screws provided with the accessory kit.
Some wiring box parts may be subject to voltages that could be hazardous for the operator.
Before performing any work on the inverter, refer to “Inverter switch-off” chapter on this manual
to know all the necessary step to safely operate on the inverter.
PVS

ABB PVS-100 Specifications

General

Rated AC power output	100 kW
AC Voltage	400 V
Topology	Transformerless
Cooling Method	Forced Air
Operating temperature range	-25°C to +60°C (derating above 45°C)
Cooling	Forced air
Frequency	50/60 Hz
